Pneumatic Gripper HFC Series Parallel Open/Close Bore16 to 63 High Precision Double Acting Equal To AIRTAC HFC Pneumatic Gripper
Product Feature
●Open/close type pneumatic gripper, simplify the gripping action.
●A sheet metal is installed between the finger and body to reduce abrasion and extend the service life.
●Dust proof is designed int he finger part, which is applicable to special working environment.
●All series are all attached with magnet.
●Many mounting types available.
| Catalog: |
Pneumatic Gripper HFC Series Ordering Code
Pneumatic Gripper HFC Series Specification
| Air Gripper HFY Bore Size | 16 | 20 | 25 | 32 | 40 | 50 | 63 | ||
| Acting Type | Double Acting | ||||||||
| Fluid | Air (To be filtered by 40цm filter element) | ||||||||
Operating Pressure | 0.2∽0.6Mpa(28∽87Psi)2.0∽6.0Bar | 0.15∽0.6Mpa(22∽87Psi)1.5∽6.0Bar | |||||||
| Temperature ℃ | -10∽60 | ||||||||
| Lubrication | Not Required | ||||||||
| Max. Frequency | 120(c.p.m) | 60(c.p.m) | |||||||
| Repeatability | ±0.01mm | ||||||||
| Port Size | M3X0.5 | M5x0.8 | |||||||
| Sensor Switch | DS1-H;DS1-HL | ||||||||

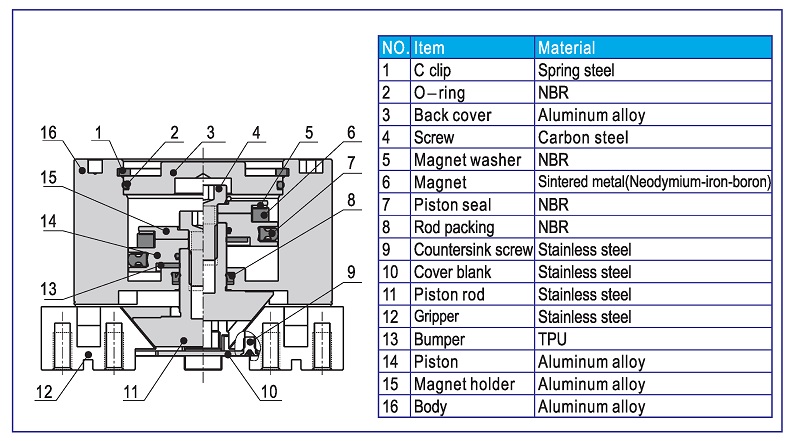

Pneumatic Gripper HFC Series Inner Structure
Pneumatic Gripper HFC Series Gripping Force And Stroke
| Pneumatic Gripper HFC Modle | Gripping force per finger effective value(n) | Opening/Closing Stroke (Both Side )(mm) | ||
| External | Internal | |||
| 2 Grippers | HFCI-16 | 23 | 21 | 4 |
| HFCI-20 | 42 | 37 | 4 | |
| HFCI-25 | 71 | 63 | 6 | |
| HFCI-32 | 123 | 111 | 8 | |
| HFCI-40 | 195 | 177 | 8 | |
| HFCI-50 | 306 | 280 | 12 | |
| HFCI-63 | 537 | 502 | 16 | |
| 3 Grippers | HFCY-16 | 16 | 14 | 4 |
| HFCY-20 | 28 | 25 | 4 | |
| HFCY-25 | 47 | 42 | 6 | |
| HFCY-32 | 82 | 74 | 8 | |
| HFCY-40 | 130 | 118 | 8 | |
| HFCY-50 | 204 | 187 | 12 | |
| HFCY-63 | 359 | 335 | 16 | |
| 4 Grippers | HFCX-16 | 12 | 10 | 4 |
| HFCX-20 | 21 | 19 | 4 | |
| HFCX-25 | 35 | 31 | 6 | |
| HFCX-32 | 61 | 55 | 8 | |
| HFCX-40 | 97 | 88 | 8 | |
| HFCX-50 | 153 | 140 | 12 | |
| HFCX-63 | 268 | 251 | 16 | |
Neu-Master Pneumatic warrants these compact pneumatic cylinders to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.
1 Year Standard Warranty
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us.
How about the lead time of the Pneumatic Gripper HFC Series , delivery time?
Normally we keep some stock , so the lead time will less than 15 work days .
Is the Pneumatic sample for free ?
Yes, but need afford the freight
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time :15 work days
