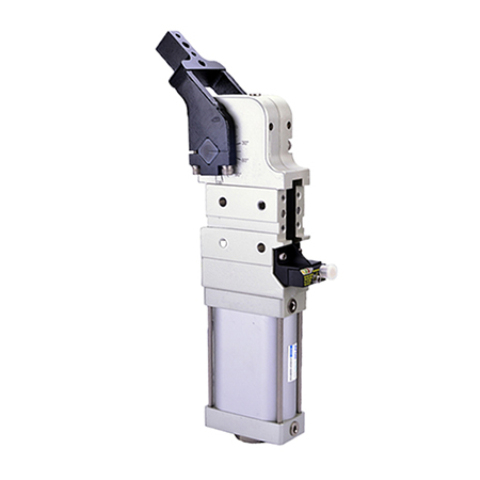

JCK Welding Clamp Cylinder JCK40 JCK50 JCK63 JCK80 Equal To AIRTAC JCK Clamping Cylinder
Product Feature
The JCK series power welding clamp cylinders by Neu-Master.
Bore sizes range from 40 mm to 80 mm.
Product Features:
●JCK Series Power Clamp Cylinder is designed with rod-crank slider structure that is made of high strength and wear-resisting materials to make it durable and long lasting.
●It has the ability to produce large clamping force at low working pressure.
● It also has self-lock mechanism at clamping position, providing clamping force even after compressed air is off.
●The 4 sides of this power clamp cylinder are to be mounted with dimensions subject to DIN standard.
●It has sensor that is specially designed to reduce welding spatter accumulation, and for convenient angle adjustment as well.
●Other features include space efficiency, different arm styles to accommodate different situations, etc.
| Catalog: |

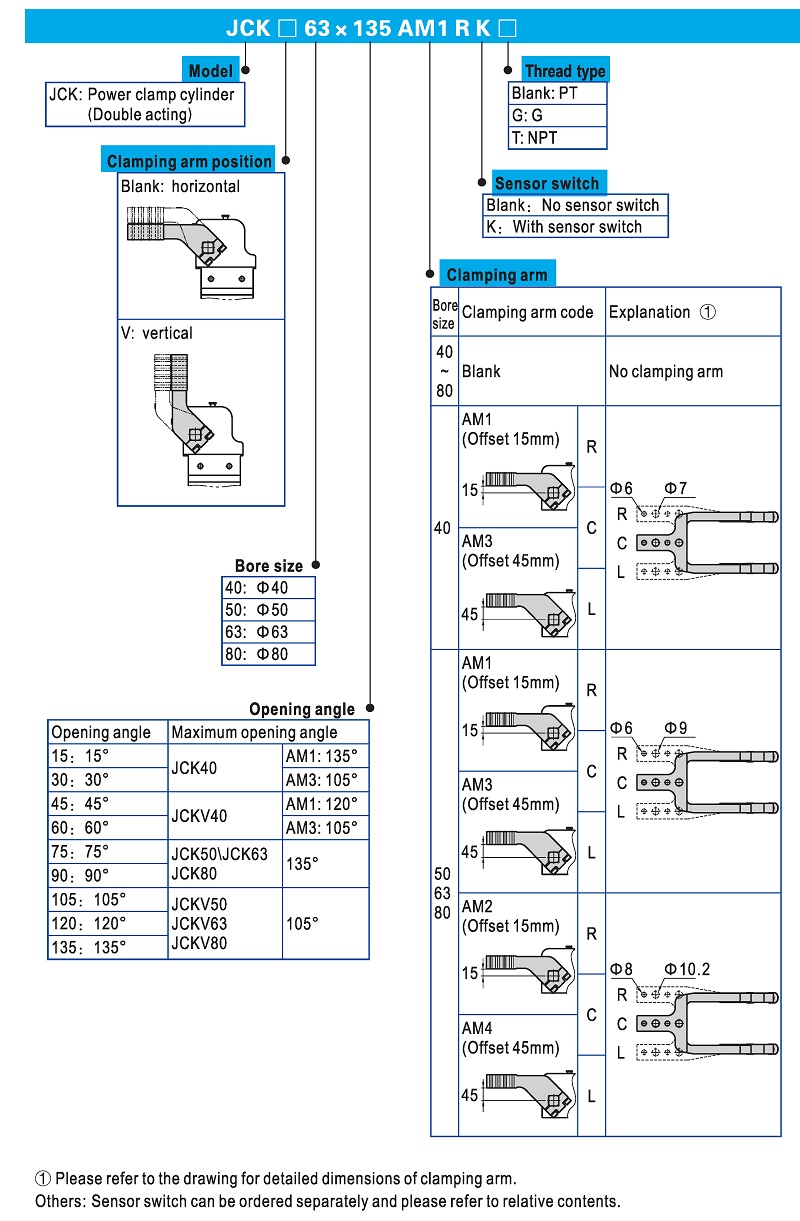

JCK Welding Clamp Cylinder Ordering Code
JCK Welding Clamp Cylinder Specification
| Pneumatic Swing Clamp | JCK40 | JCK50 | JCK63 | JCK80 |
| Acting Type | Double Acting | |||
| Fluid | Air (To be filtered by 40цm filter element) | |||
| Operating Pressure | 0.3∽0.8Mpa(43∽116Psi) | |||
| Proof Pressure | 1.2Mpa(175Psi) | |||
| Temperature ℃ | -10∽60 | |||
| Open Angle | 15°/30°/45°/60°/75°/90°/105°/120°/135° | |||
| Minimum opening and closure time | 1 second clamping;1 second opening | |||
| Position sensing | Inductive approaching sensor | |||
| Cushion type | Air Buffer | |||
| Weight (135°) | 2.2kg | 4.0kg | 5.5kg | 13.0kg |
| Port Size | 1/8" | 1/4" | ||

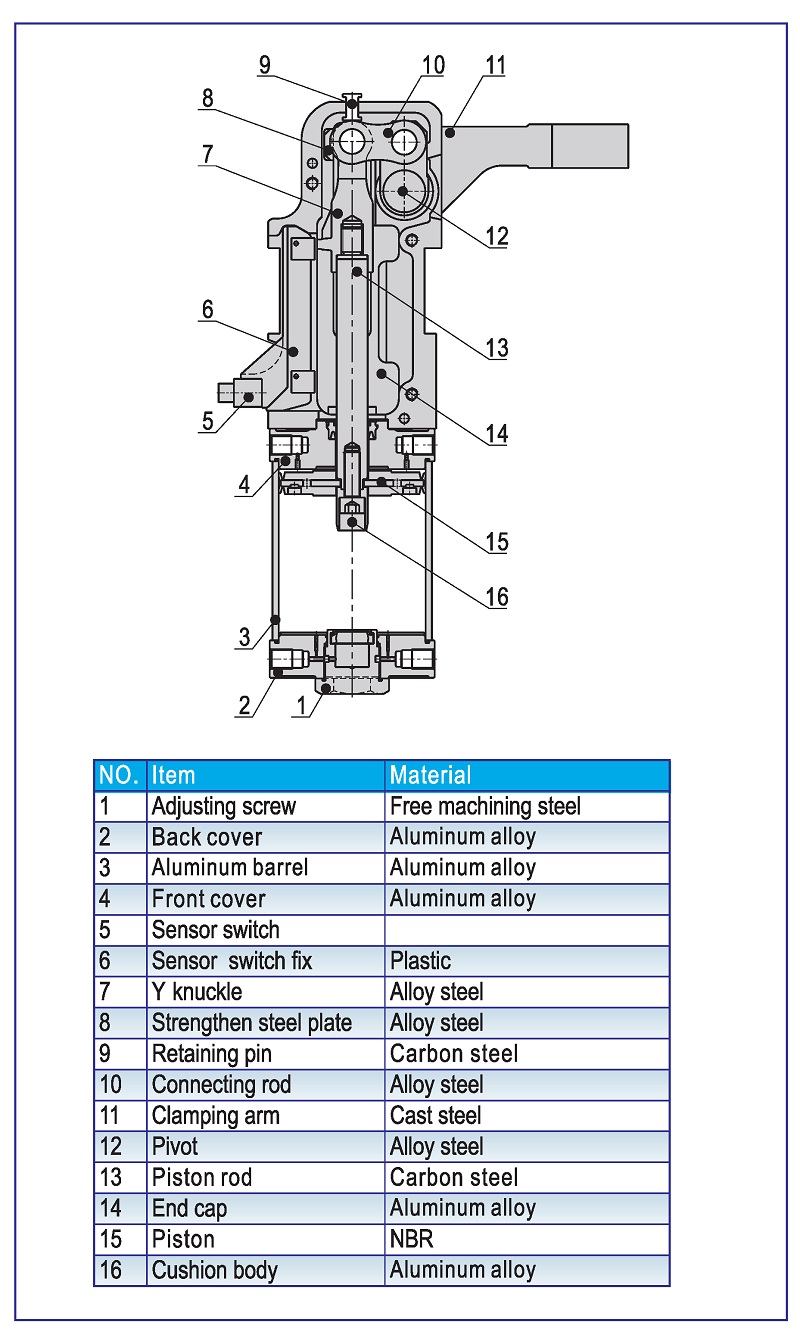

JCK Welding Clamp Cylinder Inner Structure
Neu-Master Pneumatic warrants these JCK Welding Clamp Cylinder to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.
1 Year Standard Warranty
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us.
How about the lead time of the JCK Welding Clamp Cylinder , delivery time?
Normally we keep some stock , so the lead time will less than 15 work days .
Is the Pneumatic sample for free ?
Yes, but need afford the freight
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time :15 work days
