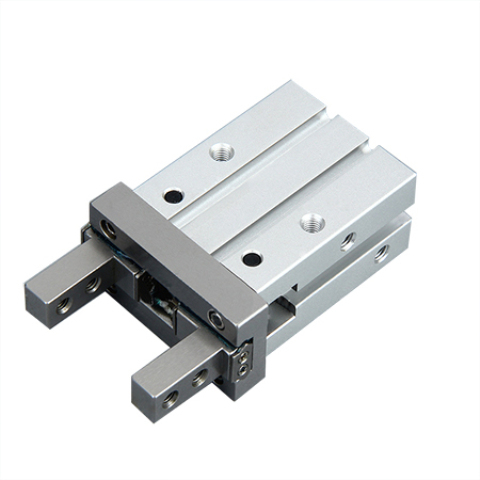

Pneumatic Gripper HFZ Series High Precision Double Acting Single Acting Equal To AIRTAC HFZ Pneumatic Gripper
Product Feature
●Integrated design of linear guide rail, high rigidity and high precision.
●A positioning pin is attached to the bottom of the linear guide rail, which can prevent the deviation of the positioning rail and body.
●The hole of the body is deeper, which can improve the precision and the consistency of repeated dismounting and positioning.
●According to the actual using requirements of customers,the initial position of clamping jaw can be custornized to meet the different needs under different working conditions.
| Catalog: |

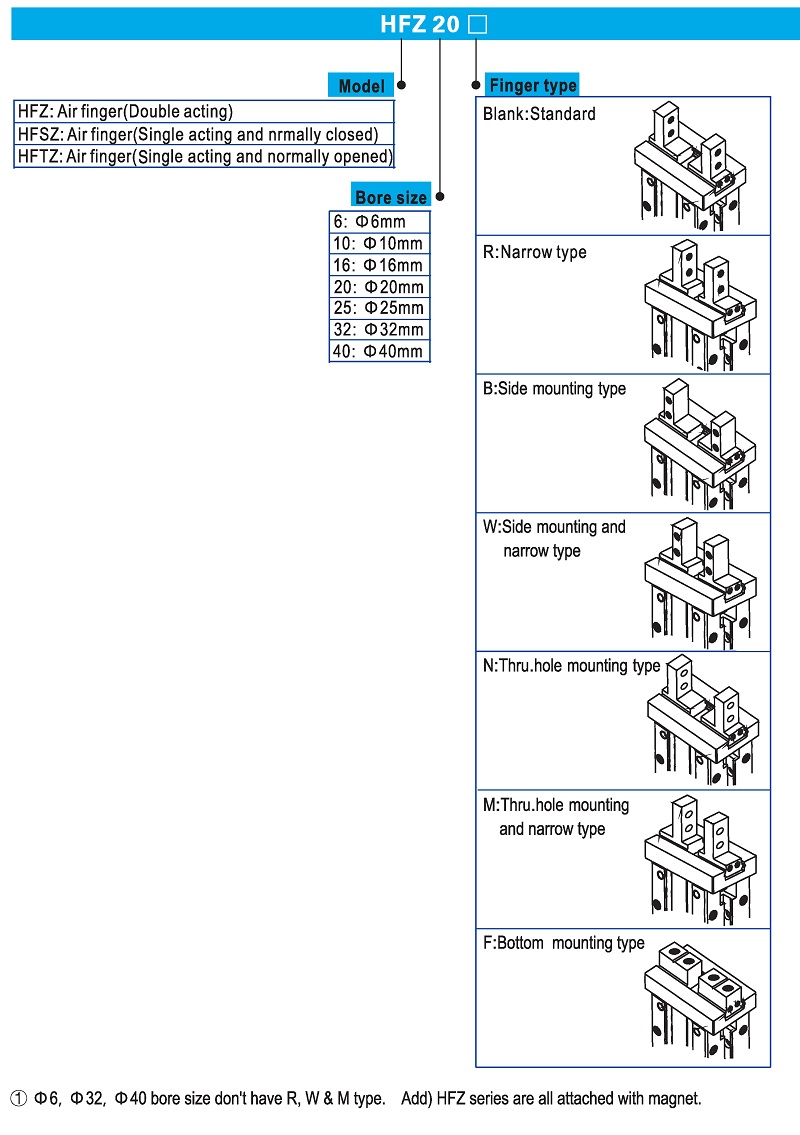

Pneumatic Gripper HFZ Series Ordering Code
Pneumatic Gripper HFZ Series Specification
| Pneumatic Gripper HFZ Bore Size | 6 | 10 | 16 | 20 | 25 | 32 | 40 | ||
| Acting Type | Double Acting Single Acting | ||||||||
| Fluid | Air (To be filtered by 40цm filter element) | ||||||||
Operating Pressure | Double Acting | Φ6,Φ10 | 0.2∽0.7Mpa(28∽100Psi)2.0∽7.0Bar | ||||||
| Others | 0.15∽0.7Mpa(22∽100Psi)1.5∽7.0Bar | ||||||||
| Single Acting | Φ6,Φ10 | 0.35∽0.7Mpa(50∽100Psi)3.5∽7.0Bar | |||||||
| Others | 0.25∽0.7Mpa(36∽100Psi)2.5∽7.0Bar | ||||||||
| Temperature ℃ | 20∽70- | ||||||||
| Lubrication | Not Required | ||||||||
| Repeatability mm | ±0.01 | ±0.02 | |||||||
| Max. Frequency | 180(c.p.m) | 60(c.p.m) | |||||||
| Sensor Switch | DS1-H | CS1-G DS1-G | CS1-G DS1-G DS1-H | ||||||
| Port Size | M3x0.5 | M5*0.8 | |||||||

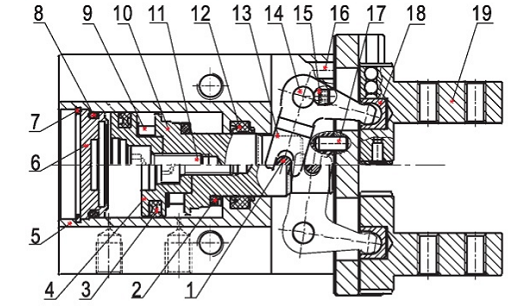

Pneumatic Gripper HFZ Series Structure
NO. | Item | Material |
1 | Pin | Stainless steel |
2 | Bumper | TPU |
3 | Piston seal | NBR |
4 | Piston | Aluminum alloy/Stainless steel |
5 | Body | Aluminum alloy |
6 | Back cover | Aluminum alloy |
7 | C clip | Spring steel |
8 | O-ring | NBR |
9 | Magnet | Sintered metal(Neodymium-iron-boron) |
10 | Piston rod | Aluminum alloy/Stainless steel |
11 | Screw | Carbon steel |
12 | Rod packing | NBR |
13 | Curved bar | Stainless steel |
14 | Pin | Stainless steel |
15 | Countersink screw | Carbon steel |
16 | Hexagon screw | Carbon steel |
17 | Pin | Stainless steel |
18 | Guide sleeve | Stainless steel |
19 | Assembly of clamping jaw and guide rail | Stainless steel |

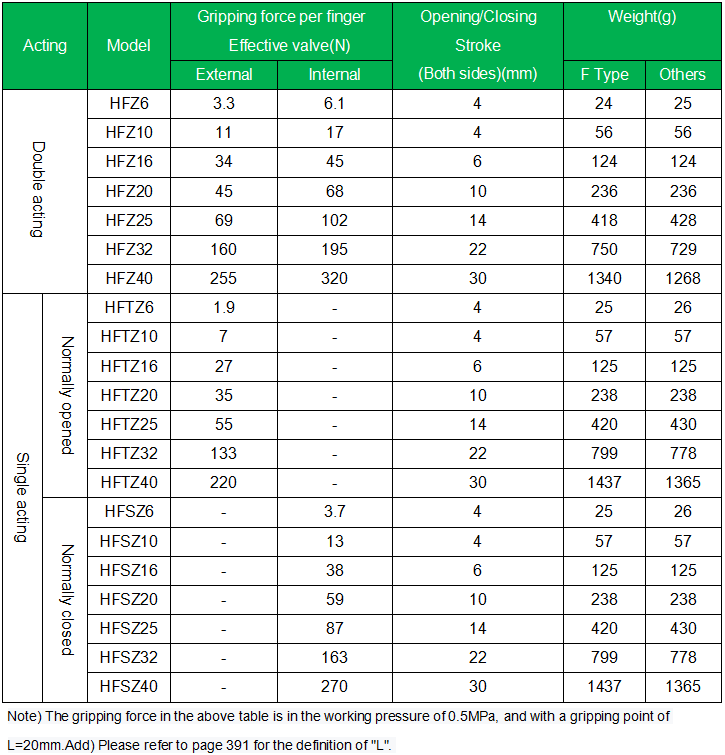

Pneumatic Gripper Force and Stroke
Neu-Master Pneumatic warrants these compact pneumatic cylinders to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.
1 Year Standard Warranty
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us.
How about the lead time of the Pneumatic Gripper HFZ Series , delivery time?
Normally we keep some stock , so the lead time will less than 15 work days .
Is the Pneumatic sample for free ?
Yes, but need afford the freight
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time :15 work days
