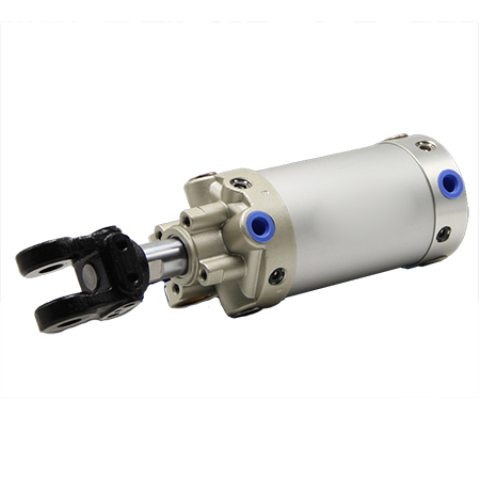

MCK Welding Clamp Cylinder Round Body Bore Size 40 to 80 Equal To AIRTAC MCK Clamping Cylinder
Product Feature
The MCK series welding clamp cylinders by Neu-Master.
Bore sizes range from 40 mm to 80 mm.
Product Features:
●It suits for workshops that make automation welding.
●There is a scraping dust ring in front cover, and it is firm and durable that can avoid dust and splashed welding slag breaking cylinders. It is more reliable than dust helmet.
●It fits the working environment where has strong magnetic field, if it uses the sensor switch which is with strong magnet and anti-strong magnetic field.
●Inlet interface are optional on three sides; buffer adjustment and speed limit adjustment are built-in.
●Various types of sensor switches are available
| Catalog: |

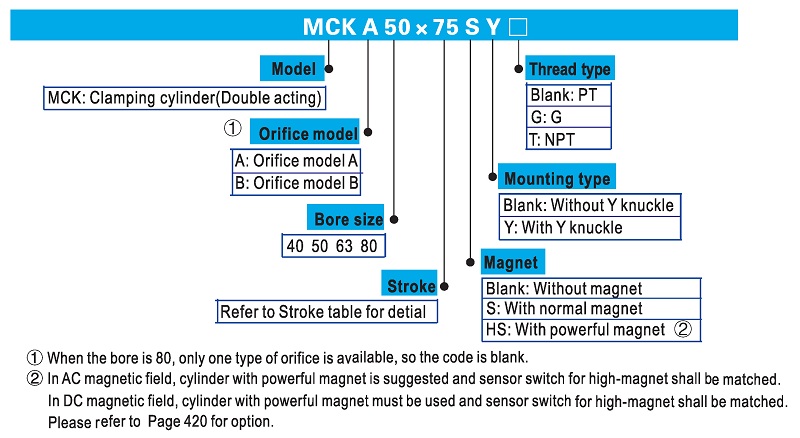

MCK Welding Clamp Cylinder Ordering Code
MCK Welding Clamp Cylinder Specification
| Pneumatic Swing Clamp | 40 | 50 | 63 | 80 |
| Acting Type | Double Acting | |||
| Fluid | Air (To be filtered by 40цm filter element) | |||
| Operating Pressure | 0.15∽1.0Mpa(22∽145Psi) | |||
| Temperature ℃ | -20∽80 | |||
| Speed Range | 50∽500mm/s | |||
| Cushion Type | Variable cushion for back over | |||
| Speed Controlled Valve | Standard setting for covers | |||
| Lubrication | Not Required | |||
| Installation Type | Double hinged-surpport | |||
| Port Size | M5X0.8 | 3/8" | ||

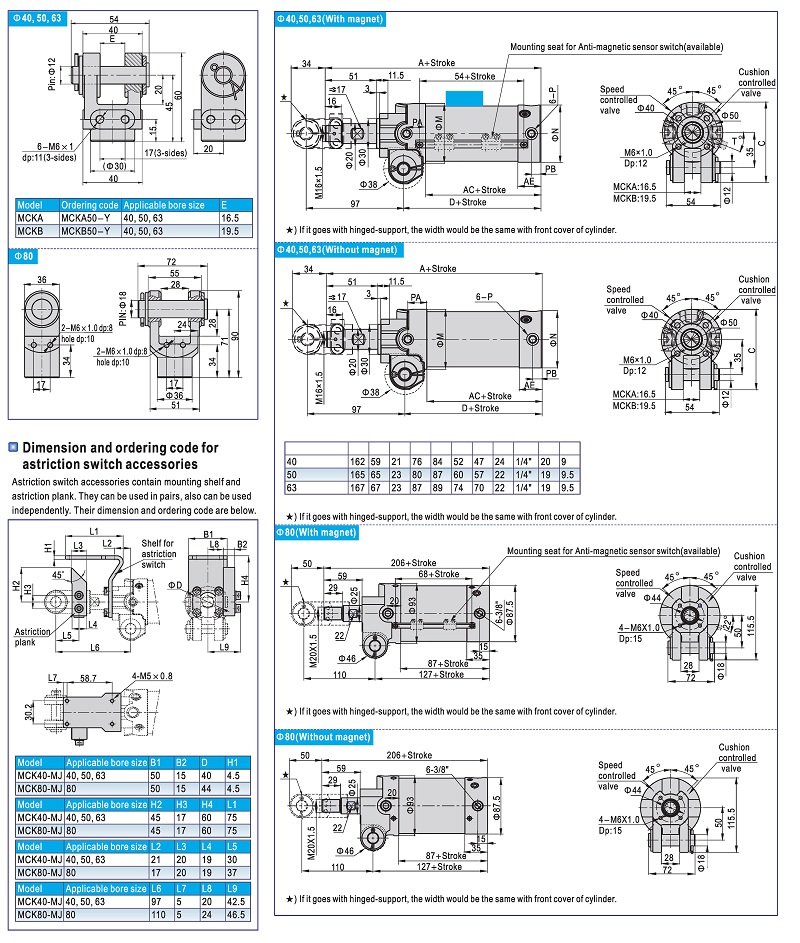

MCK Welding Clamp Cylinder Dimension
MCK Welding Clamp Cylinder Stroke
| MCK Welding Clamp Cylinder Bore Size | Standard Stroke(mm) | Available Stroke |
| 40,50,63,80 | 50,75,100,125,150 | 150 |
Neu-Master Pneumatic warrants these MCK Welding Clamp Cylinder to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.
1 Year Standard Warranty
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us.
How about the lead time of the MCK Welding Clamp Cylinder , delivery time?
Normally we keep some stock , so the lead time will less than 15 work days .
Is the Pneumatic sample for free ?
Yes, but need afford the freight
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time :15 work days
