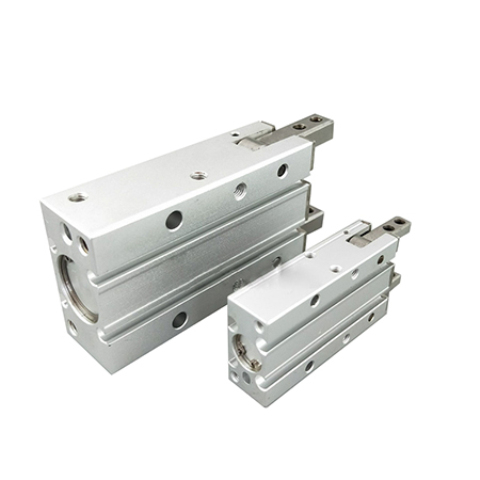

Pneumatic Gripper HFR Series Bore10 to 32 High Precision Double Acting Equal To AIRTAC HFR Air Gripper
Product Feature
●Open/close type pneumatic gripper, simplify the gripping action.
●A sheet metal is installed between the finger and body to reduce abrasion and extend the service life.
●Dust proof is designed int he finger part, which is applicable to special working environment.
●All series are all attached with magnet.
●Many mounting types available.
| Catalog: |
Pneumatic Gripper HFR Series Ordering Code
Pneumatic Gripper HFR Series Specification
| Air Gripper HFY Bore Size | 10 | 16 | 20 | 25 | 32 | ||
| Acting Type | Double Acting | ||||||
| Fluid | Air (To be filtered by 40цm filter element) | ||||||
Operating Pressure | 0.15∽0.7Mpa(22∽100Psi)1.5∽7.0Bar | ||||||
| Temperature ℃ | -10∽70 | ||||||
| Lubrication | Cylinder: Not Required Gripper Jaws :Lubricate grease | ||||||
| Cushion Type | Bumper | ||||||
| Gripping Force | 0.16N.m | 0.55N.m | 1.10N.m | 2.30N.m | 5.00N.m | ||
| Max. Frequency | 60(c.p.m) | ||||||
| Repeatability | ±0.2mm | ||||||
| Port Size | M5X0.8 | ||||||
| Open or Close Angle | Open:-2°∽-5° ;Close:180°±2° | ||||||
| Sensor Switch | CS1-H | ||||||

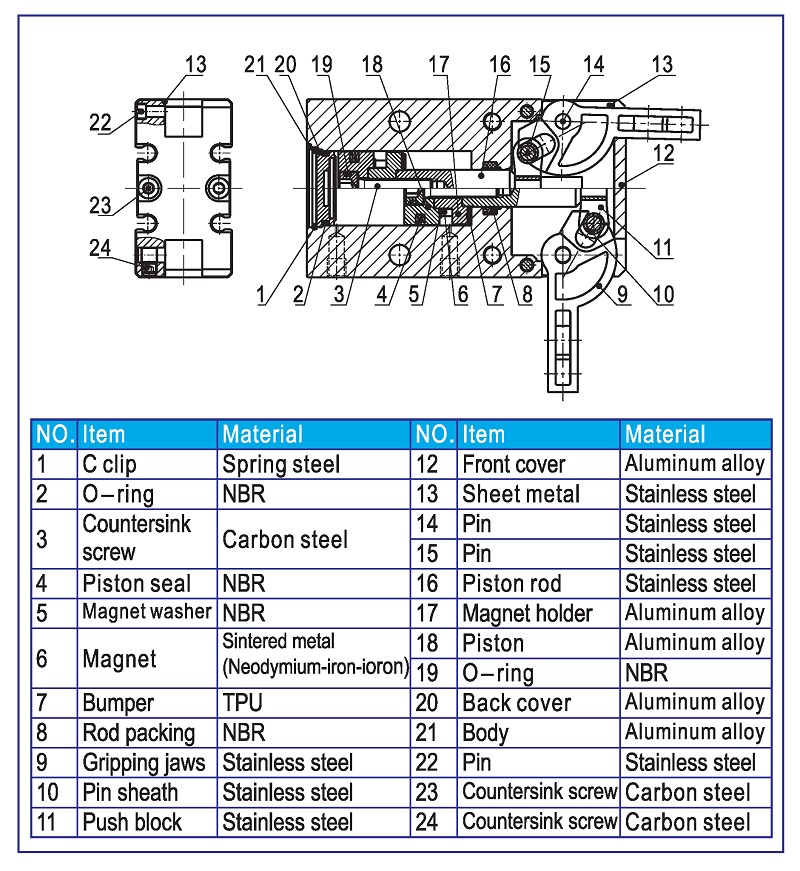

Pneumatic Gripper HFR Series Inner Structure

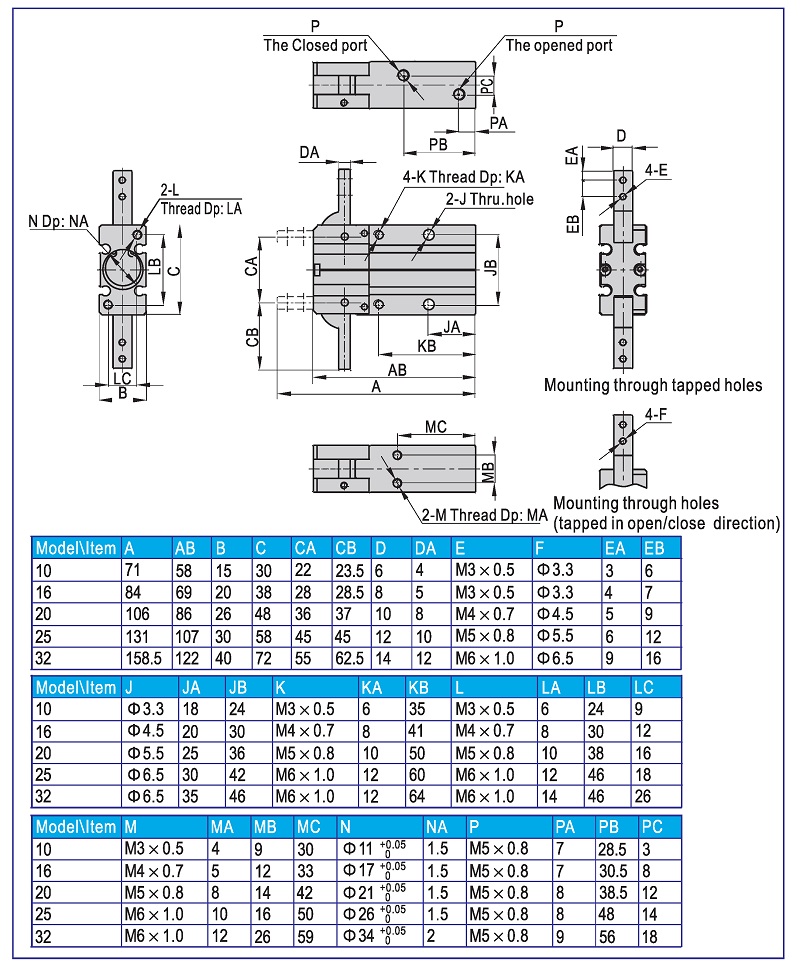

Pneumatic Gripper HFR Series Dimensions
Neu-Master Pneumatic warrants these compact pneumatic cylinders to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.
1 Year Standard Warranty
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us.
How about the lead time of the Pneumatic Gripper HFR Series , delivery time?
Normally we keep some stock , so the lead time will less than 15 work days .
Is the Pneumatic sample for free ?
Yes, but need afford the freight
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time :15 work days
