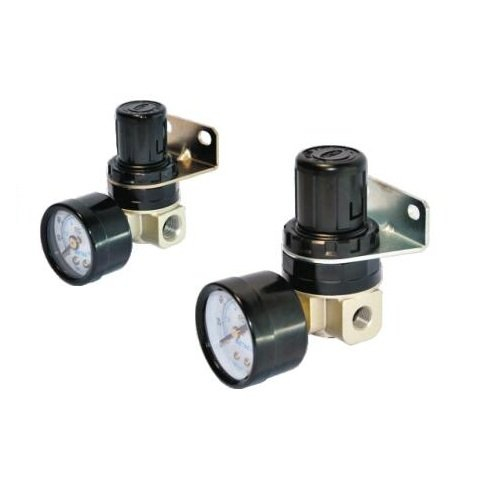

SDR Series Small Valve Body Pneumatic Regulator
SDR Pneumatic Regulator equivalent as AIRTAC
The Performance Is Reliable And Steady
With manometer or without manometer choice.
Port size :1/8";1/4",Compact Structure
Single Unit Installation,Easy Mounting
Short delivery time ,reasonable cost,durable feature .
SDR Series Compressed Pneumatic Regulator.pdf

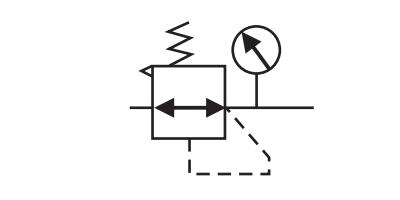

SDR Pneumatic Regulator Symbol:

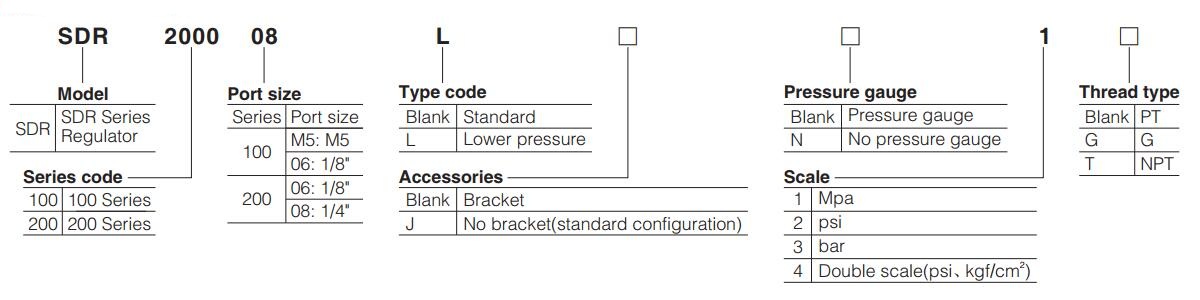

SDR Pneumatic Regulator Ordering Code:
SDR Pneumatic Regulator feature
1. Back pressure structure, compact type, cost-effective, installation time saving.
2. Broad regulating range; low-pressure type is optional applicable to situation which
has low expectation on output pressure but high expectation on performance and cost- effectiveness.
3. Single unit installation; easy to mount.
SDR Pneumatic Regulator Specification
Model | SDR100-M5 | SDR100-06 | SDR200-06 | SDR200-08 | SDR100L-M5 | SDR100L-06 | SDR200L-06 | SDR200L-08 |
Fluid | Air | |||||||
Pressure range | 0.05~0.9MPa(7~130psi) | 0.03~0.4MPa(4~57psi) | ||||||
Max. pressure | 1.0MPa(145psi) | |||||||
Proof pressure | 1.5MPa(215psi) | |||||||
Temperature range | -20~70℃ | |||||||
Pirt size | M5 | PT1/8 | PT1/4 | M5 | PT1/8 | PT1/4 | ||
① PT thread, G thread and NPT thread are available.
Where the SDR series AIRTAC standard pneumatic regulators were used ? (Appliliance)
Normally it were installed togetherly with the air tank , or air compressor, for controling the outputing air pressure .
Or as the airline pressure controller ,we could get the stable air output pressure .
The difference with other air regulator.
The compact design , can be installed on the compressor . Or working as the inline air regulator .
Compared with AR,R...Sereis regulator, SDR Series has the same function , but more space-saving because the compact body design .
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the SDR Pneumatic Regulator sample for free ?
Yes , if one sample .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Air Regulator, Air Pressure Regulator, Compressor Air Regulator, Air Tank Regulator, Air Compressor Regulator are all for controlling the outputing air pressrue . Especially for the air compressor , or working as in line air regulator.
What does FRL mean:(FRL meaning ) F = Compressed Air filter ; R= Compressed Air Regulator or Compressed Air Reducer;
L=Compressed Air Lubricator o Compressed Air Oiler
FR.L : FR is a combination of the air filter regulator (F1) .L : Air line oiler, lubricator .
What's the lubricator ？ It's a oil injection equipment . When the FRL combo were installed on the machine , and the lubricant was necessary for the air line system , then we need a Lubricator , also called oiler . It's normal pneumatic equipment .
The difference of FR.L and FRL : As the air regulator and filter were combined in the FR.L system , so it is more space-saving . And lower cost .
