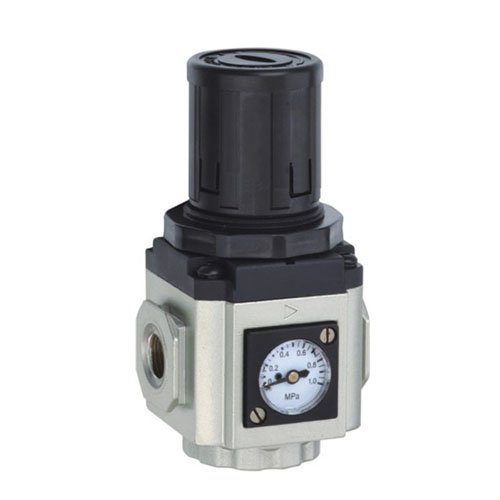

GR Series Air Regulator
The Air Regulator feature
1. Embedded square pressure gauge is used to save installation space. (External circular pressure gauge is also optional).
2. The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.
3. Balanced design is adopted for the pressure adjustment mechanism.
4. In addition to panel installation, the bracket is optional for installation.
5. In addition to standard type, lower pressure type is optional (the highest dajustable pressure is 0.4MPa).
GR Series Compressed Air Regulator.pdf

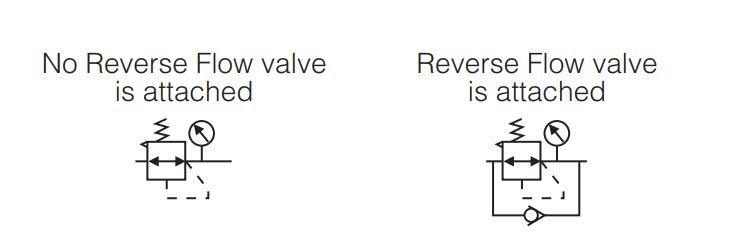

GR Air Regulator Symbol:
· High stability due to internal lock feature.
· Excellent pressure with improved operability.
· Choices include panel mounted and bracketed.

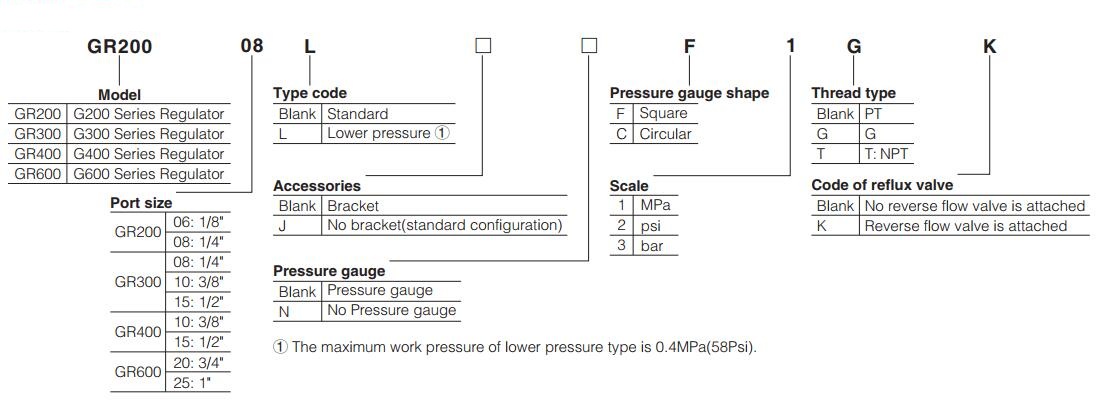

The Air Regulator Ordering Code:
The Air Regulator Specification
Model | GR200-06 | GR200-08 | GR300-08 | GR300-10 | GR300-15 | GR400-10 | GR400-15 | GR600-20 | GR600-25 |
Fluid | Air | ||||||||
Port size | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT1/2 | PT3/8 | PT1/2 | PT3/4 | PT1 |
Pressure range | 0.05~0.9MPa(7~130psi) | ||||||||
Max. pressure | 1.0MPa(145psi) | ||||||||
Proof pressure | 1.5MPa(215psi) | ||||||||
Temperature range | -20~70℃ | ||||||||
Weight | 160g | 350g | 720g | 1700g | |||||
① PT thread, G thread and NPT thread are available.
Where the R series AIRTAC standard air regulators were used ? (Appliliance)
Normally it were installed togetherly with the machine, for controling the inputing air pressure .
Or as the airline pressure controller ,we could get the stable air output pressure .
The difference with other air regulator.
Embedded square pressure gauge is used to save installation space
Compared with AR,R...Sereis regulator, R Series has the same function , but space-saving .
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the sample for free ?
Yes , if one sample .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: GR Air Regulator, Air Line Regulator, Air Regulator Valve, GR200 air regulator, GR300 Air Regulator are all for controlling the outputing air pressrue .
What does FRL mean:(FRL meaning ) F = Compressed Air filter ; R= Compressed Air Regulator or Compressed Air Reducer;
L=Compressed Air Lubricator o Compressed Air Oiler
FR.L : FR is a combination of the air filter regulator (F1) .L : Air line oiler, lubricator .
What's the lubricator ？ It's a oil injection equipment . When the FRL combo were installed on the machine , and the lubricant was necessary for the air line system , then we need a Lubricator , also called oiler . It's normal pneumatic equipment .
The difference of FR.L and FRL : As the air regulator and filter were combined in the FR.L system , so it is more space-saving . And lower cost .
