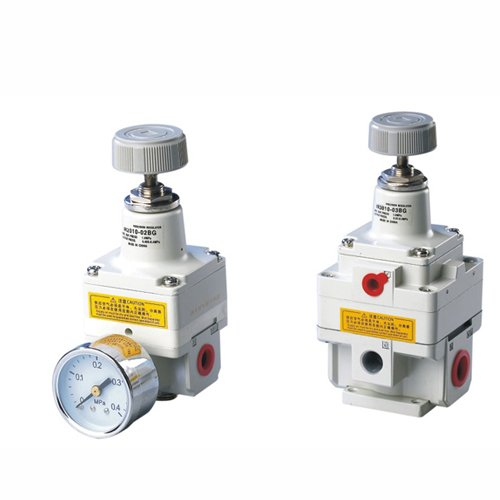

IR Series Precision Regulator
IR Precision air regulator equivalent as SMC
With manometer or without manometer choice.
Port size : 1/8";1/4";3/8";1/2"
Small Size ,Light Weight,Easy to Install
Regulating pressure range (MPa): 0.005 to 0.8 depending on model
Compact and lightweight
Bracket & pressure gauge can be mounted on either the front or back 2 air operated models
The IR series is subject to a pending discontinuation. While product remains available, the IR
A should be used for new applications.
IR Series Precision Regulator.pdf
IR Precision Regulator Symbol:
IR Series Precision Regulator Feature:
1. Small size, light weight.
2. Accurate pressure setting.
3. The pitch of the adjusting screw is changed from traditional 0.75mm to 0.5mm.
4. Easy to install. It can be installed independently by bracket or directly installed with
the modular filter assembly AF .
5. Standard type also has panel installation.
6. The pilot exhaust port is separated from the main exhaust port.
7. Can be used in clean rooms (special injection products).

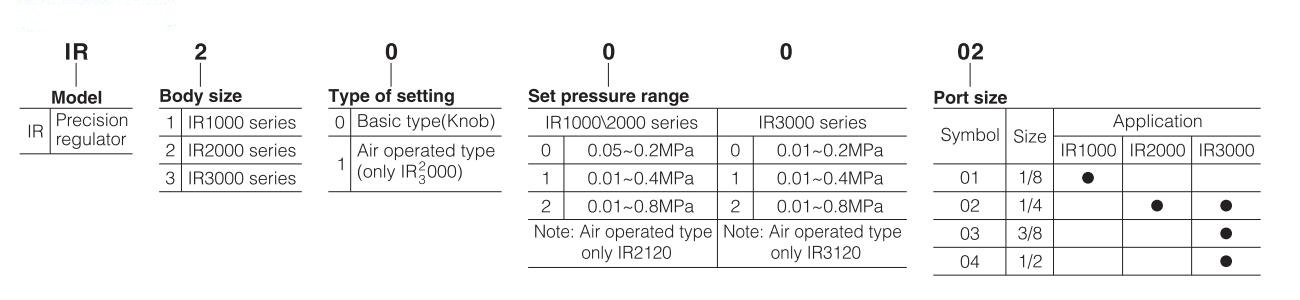

IR Series Precision Regulator Code :
IR Series Precision Regulator Specification:
| Sensitivity | Within 0.2% full degree | |
| Repeatability Accuracy | Within ±0.5% full degree | |
Gas Consumption | IR10□0 | Max.4.4L/min(ANR)Under 1.0Mpa pressure |
| IR20□0 | Max.4.4L/min(ANR)Under 1.0Mpa pressure | |
| IR2120 | ||
| IR30□0 | Max.11.5L/min(ANR)Under 1.0Mpa pressure | |
| IR3120 | ||
Environment And Fluid Temperature | -5℃～60℃(Not Frozen) | |
Maximum Operating Pressure | 1.0Mpa | |
| Pressure Gauge Connecting Caliber | Rc1/8 | |
Note:Gas filter (AF) and oil mist separator(AM and AFM )shall be used in the
supply side.
IR Series Precision Regulator Model/Specification
Model | Specification | Accessories(Optional) | ||||
| Minimum use pressure Mpa | Set the pressure range Mpa | Pipe Size | Pressure gauge type | Bracket type | ||
Standard type | IR1000-01 | Set pressure + 0.05 | 0.005～0.2 | 1/8 | G33-2-01 | P36201023 |
| IR1010-01 | 0.01～0.4 | G33-4-01 | ||||
| IR1020-01 | 0.01～0.8 | G33-10-01 | ||||
| IR2000-02 | 0.005～0.2 | 1/4 | G43-2-01 | P36202028 | ||
| IR2010-02 | 0.02～0.4 | G43-4-01 | ||||
| IR2020-02 | 0.01～0.8 | G43-10-01 | ||||
| IR3000-□ | Set pressure + 0.1 | 0.01～0.2 | 1/4 3/8 1/2 | G43-2-01 | P36203020 | |
| IR3010-□ | 0.01～0.4 | G43-4-01 | ||||
| IR3020-□ | 0.01～0.8 | G43-10-01 | ||||
Air control type | IR2120-02 | Set pressure + 0.05 | 0.01～0.8 | 1/4 | P36202028 | |
| IR3120-□ | Set pressure + 0.1 | 0.01～0.8 | 1/4 3/8 1/2 | P36203020 | ||
Note:□-Representative pipe size
02=Rc1/4 ,03=Rc3/8, 04=Rc1/2
Precision Pressure Regulator
Where the IR series SMC standard Precisio regulators were used ? (Appliliance)
Normally it were installed togetherly with the machine, for controling the inputing air pressure accurately .
Or as the airline vacuum controller ,we could get the stable and precise outputing air pressure .
The difference with other air regulator.
Small size, light weight.Can be used in clean rooms (special injection products).
Exactly control the outputing air pressure .
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note:Precision Air Regulator, Precison Regulator, Precision Air Pressure Regulator, Precision regulator, High Precision Pressure Regulator are all for controlling the outputing air pressrue accurately.
What does FRL mean:(FRL meaning ) F = Compressed Air filter ; R= Compressed Air Regulator or Compressed Air Reducer;
L=Compressed Air Lubricator o Compressed Air Oiler
FR.L : FR is a combination of the air filter regulator (F1) .L : Air line oiler, lubricator .
What's the lubricator ？ It's a oil injection equipment . When the FRL combo were installed on the machine , and the lubricant was necessary for the air line system , then we need a Lubricator , also called oiler . It's normal pneumatic equipment .
The difference of FR.L and FRL : As the air regulator and filter were combined in the FR.L system , so it is more space-saving . And lower cost .
