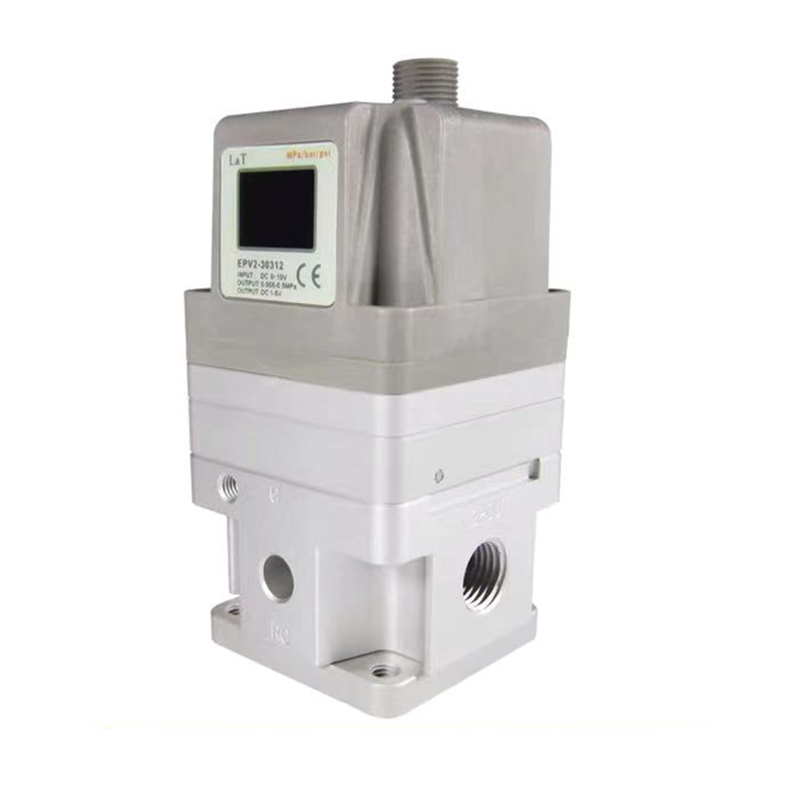

ITV Series Electronic Pressure Regulator

ITV Series Electronic Pressure Regulator

ITV Series electronic pressure regulator ,equivalent to SMC
With digital screen .
Port size :1/8";1/4";3/8";1/2";
PT,G,NPT Thread are available for the digital pressure regulator
Compacted And Lightweight
Low Power Consumption,Less Than 4W

Availability:



Inquire Add to Basket

Order Code

SGC ISO 15552 Big Bore Size Double Acting Pneumatic Cylinder Bore Size 125 To 320mm

Product Feature

●SGC ISO 15552 big bore double acting pneumatic cylinder manufactured by Neu-Master

●The cylinder seal of piston adopts two Y shape seal single-direction structure.Which has compensation function,

long service life and low start-up pressure.

●Normal bore size from 125mm to 320mm, stroke from 5 to 1500mm

●The buffer adjustment of cylinder is smooth and steady.

●It is tie rod cylinder. The cylinder barrel and front/rear cap is jointed by tie rods with the high reliability

●Cylinder and mounting accessories with several specifications are optional

SGC Big Bore Double Acting Pneumatic Cylinder Ordering Code

SGC Big Bore Size Standard Double Acting Pneumatic Cylinder Ordering code

SGC Big Bore Double Acting Pneumatic Cylinder Specification

Bore Size(mm)		125	160	200	250	320
Acting type		Double Acting
Fluid		Air (To be filtered by 40μm filter element)
Mouting Type	DNC	Basic FA FB CA CB LB TC FTC TCM1 TCM2
	SUD,SUJ	Basic FA LB TC FTC TCM1 TCM2
Operating Pressure		0.1∽1.0Mpa(15∽145Psi)(1.0∽10Bar)
Proof Pressure		1.5Mpa(215Psi)(15Bar)
Temperature℃		-20∽80
Speed Range mm/s		30∽500mm/s
Stroke Tolerance		0∽250:+1.0; 251∽1000:+1.5; 1000∽1500:+2.0;
Cushion Type		Variable Cushion
Adjustable Cushion Stroke mm		40	50		36
Port Size①		1/2"	3/4"		1"

① PT thread , G thread ,NPT thread are available

②Adjustable cushion on both cylinder end covers to make sure the cylinder works very smoothly, safety and with low noise.

③With self-lubricating bearing, the piston rod is lubrication free.Magnet and sufficient Fixing styles are available.

SGC Big Bore Double Acting Pneumatic Cylinder Stroke

Bore Size(mm)	Standard Stroke(mm)	Max. Stroke	Permissible Stroke
125	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
160	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
200	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
250	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
320	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000

1 Year Standard Warranty
Neu-Master Pneumatic warrants these products to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.

What's kind of thread we could supply ?

The NPT thread port , PT thread port,G thread port .

Other special port thread request please contact with us.

How about the lead time of the SGC Big Bore Double Acting Pneumatic Cylinder , delivery time?

Normally we keep some stock , so the lead time will less than 15 work days .

Is the Pneumatic sample for free ?

Yes, but need afford the freight

Certification:

ISO certificate;CE certificate

Pakaging&Delivery

Plastic bag-Hard box -Carton-Pallet ; The lead time :15 work days
