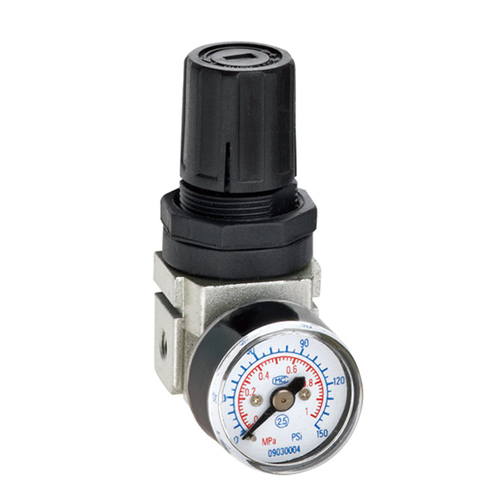

AR Series Air Regulator
AR air regulator AR1000-AR5000
With manometer or without manometer choice.
Could be used as the air compressor regulator. And the pressure air line regulator.
Port size : M5*0.8;1/8";1/4";3/8";1/2";1"
PT,G,NPT Thread are available for this pneumatic regulator
The gauge could be withe Psi ,Bar,Mpa measurement .
Short delivery time ,reasonable cost,durable feature . One year quality guarantee

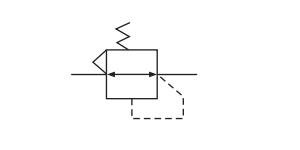

AR Series Air Regulator Symbol:

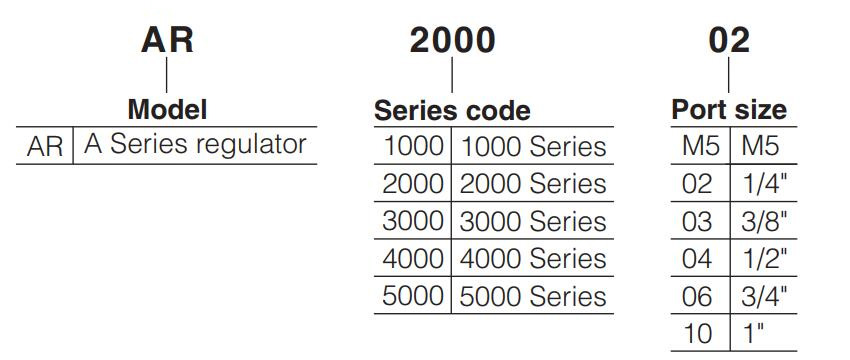

AR Series Air Regulator Ordering Code:
AR Series Air Regulator Specification
Model | AR1000-M5 | AR2000-02 | AR3000-02 | AR3000-03 | AR4000-03 | AR4000-04 | AR4000-06 | AR5000-06 | AR5000-10 |
Port size | M5×8 | 1/4 | 1/4 | 3/8 | 3/8 | 1/2 | 3/4 | 3/4 | 1 |
Pressure gauge size | 1/16 | 1/8 | 1/8 | 1/8 | 1/4 | 1/4 | 1/4 | 1/4 | 1/4 |
Rated flow(L\min) | 100 | 550 | 2500 | 2500 | 6000 | 6000 | 6000 | 8000 | 8000 |
Proof pressure | 1.5MPa{15.3kgf/cm2} | ||||||||
Max. pressure | 1.0MPa{10.2kgf/cm2} | ||||||||
Temperature range | 5~60℃ | ||||||||
Pressure range | AR1000: 0.05-0.7MPa(0.51~7.1kgf/cm2); AR2000~5000: 0.05~0.85MPa(0.51~8.7kgf/cm2) | ||||||||
Valve type | With overflow | ||||||||
Weight(kg) | 0.08 | 0.27 | 0.41 | 0.41 | 0.84 | 0.84 | 0.94 | 1.19 | 1.19 |
Note: 1. AR2000~5000 There are Pressure range: 0.02~0.2MPa(kgf/cm2);
2. Supply pressure of 0.7MPa(7.1kgf/cm2, two times the pressure set to 0.5MPa(5.1kgf/cm2)case.
Where the AR series air regulators were used ? (Appliliance)
Normally it were installed togetherly with the machine, for controling the inputing air pressure .
Or as the airline pressure controller ,we could get the stable air output pressure .
The difference with other air regulator.
Embedded square pressure gauge is used to save installation space
Compared with other Sereis regulator, AR Series has the same function , but have more choice . From AR1000 (Compact Valve Body) to AR5000 (Big Pipe Size ) .
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the sample for free ?
Yes , if one sample .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Air Regulator, SMC Air Regulator, SMC regulator, SMC Pneumatic Regulator, air pressure regulator all for controlling the outputing air pressrue .
What does FRL mean:(FRL meaning ) F = Compressed Air filter ; R= Compressed Air Regulator or Compressed Air Reducer;
L=Compressed Air Lubricator o Compressed Air Oiler
FR.L : FR is a combination of the air filter regulator (F1) .L : Air line oiler, lubricator .
What's the lubricator ？ It's a oil injection equipment . When the FRL combo were installed on the machine , and the lubricant was necessary for the air line system , then we need a Lubricator , also called oiler . It's normal pneumatic equipment .
The difference of FR.L and FRL : As the air regulator and filter were combined in the FR.L system , so it is more space-saving . And lower cost .
