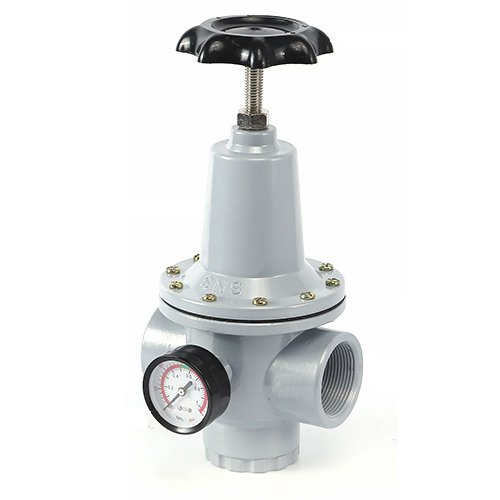

QTY Series High Flow Air Pressure Regulator

QTY Series High Flow Air Pressure Regulator

QTY series big size air regulator
Modular design ,huge air flow rate .
Port Size :1/8"-1/2 1" , NPT thread are vailable
Quick mounting pattern .
Reasonable price for the normal using.

Availability:



Inquire Add to Basket

Parameter

QTY Series High Flow Air Pressure Regulator

Pipe Size : From 1/8" to 11/2" Inch

Work Pressure : Under 1.0 Mpa

Proof Pressure : 1.5 Mpa

Work Temperature: 5～60℃

QTY Series High Flow Air Pressure Regulator Lubricator.pdf

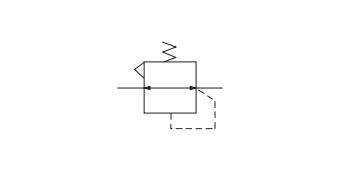

QTY Series High Flow Air Pressure Regulator Symbol

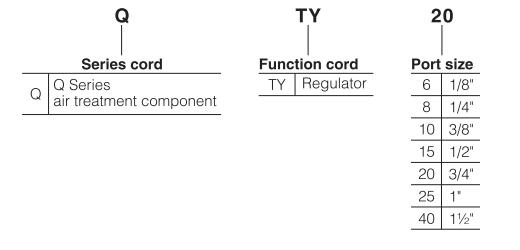

QTY Series High Flow Air Pressure Regulator Order Code

QTY Series High Flow Air Pressure Regulator Specification /Technical date

Model	QTY-6	QTY-8	QTY-10	QTY-15	QTY-20	QTY-25	QTY-40
Working Temperature	5～60℃
Working Pressure	≦1.0Mpa
Proof Pressure	1.5Mpa
Max.A djustable Range	0-0.8Mpa

QTY Series High Flow Air Pressure Regulator Pressure Drop/Air Flow Rate Value

Model	When the Pressure-Reduction equals 5% of the primary pressure, the air flow rate shall not less than the following value .
	Air flow rate(L/min)
	Primary Pressure(Mpa)
	0.25	0.4	0.63	0.8
QTY-06 1/8"	100	120	160	190
QTY-08 1/4"	680	770	860	900
QTY-10 3/8"	720	860	1000	1100
QTY-15 1/2"	900	1100	1200	1300
QTY-20 3/4"	1650	1800	1980	2100
QTY-25 1"	1900	2250	2450	2650
QTY-40 11/2"	2150	4020	2920	3200

Where the QTY Series High Flow Air Pressure Regulator were used ? (Appliliance)

Normally it were used to control the mainline air pressure .

With the pressure regulator , we could get the stable air output pressure with the huge air flow rate .

What's kind of thread we could supply ?

The NPT thread port , PT thread port,G thread port .

Other special port thread request please contact with us .

How about the QTY Series High Flow Air Pressure Regulator lead time , delivery time ?

Normally we keep some stock , so the lead time will less than 7 work days .

Certification: ISO certificate;CE certificate

Pakaging&Delivery

Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days

Note:

QTY Series High Flow Air Pressure Regulator; Air pressure regulator; Air Compressor Pressure Regulator, Air Pressure Regulator With Gauge, Air Regulator Valve are the same equipment .They are control valve that reduces the input pressure of air to a desired value at its output. Regulators are used for gases and air.
