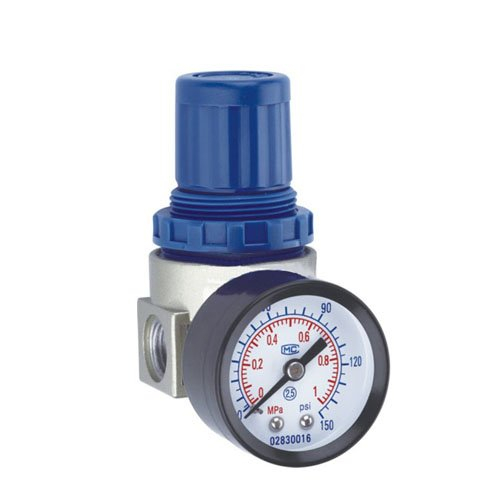

AR/BR Series Air Pressure Regulator
Air Pressure Regulator AR/BR equivalent as AIRTAC
Different Auto drain valve for choosing.
With manometer or without manometer choice.
Port size : M5*0.8;1/8";1/4";3/8";1/2";1"
PT,G,NPT Thread are available .
Short delivery time ,reasonable cost,durable feature .
AR,BR Series Air Pressure Regulator.pdf

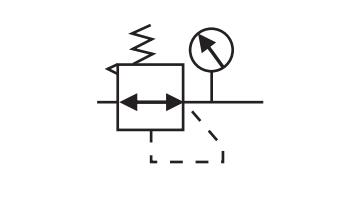

AR/BR Series Air Pressure Regulator Symbol:

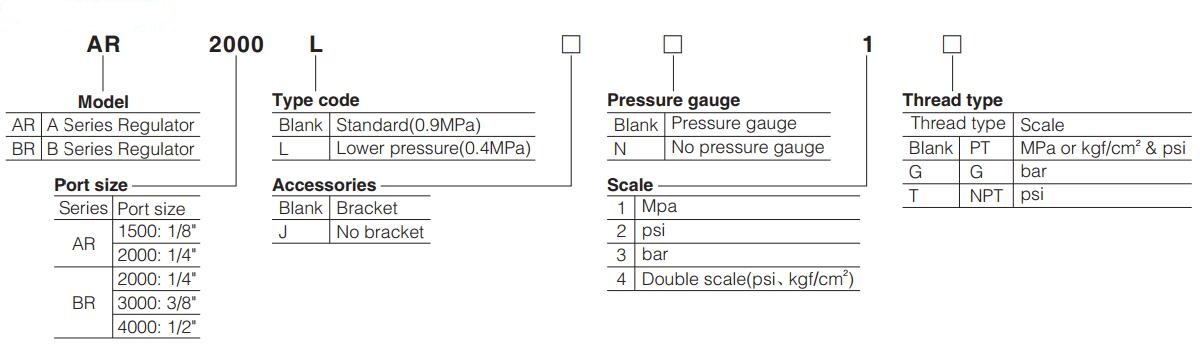

AR/BR Series Air Pressure Regulator Code:
AR/BR Series Air Pressure Regulator feature
1. The structure is delicate and compact, which is convenient for installation and application.
2. The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.
3. In addition to standard type, lower pressure type is optional(The highest adjustable pressure is 0.4MPa)
AR/BR Series Air Pressure Regulator Specification
Model | AR1500 | AR2000 | BR2000 | BR3000 | BR4000 |
Fluid | Air | ||||
Port size | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT1/2 |
Pressure range | 0.05~0.9MPa(7~130psi) | ||||
Max. pressure | 1.0MPa(145psi) | ||||
Proof pressure | 1.5MPa(215psi) | ||||
Temperature range | -5~70℃ | ||||
Weight | 200g | 230g | |||
① PT thread, G thread and NPT thread are available.
Where the AR/BR series AIRTAC standard air pressure regulators were used ? (Appliliance)
Normally it were installed togetherly with the air tank , or air compressor, for controling the outputing air pressure .
Or as the airline pressure controller ,we could get the stable air output pressure .
The difference with other air regulator.
The compact design , can be installed on the compressor . Or working as the inline air regulator .
Compared with AR,R...Sereis regulator,AR/BR Series has the same function , but space-saving because the compact body design
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the AR/BR Series Air Pressure Regulator sample for free ?
Yes , if one sample .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Air Regulator, Hose Pressure Regulator, Air Compressor Regulator, In Line Air Regulator, In Line Air Pressure Regulator are all for controlling the outputing air pressrue . Especially for the air compressor , or working as in line air regulator.
What does FRL mean:(FRL meaning ) F = Compressed Air filter ; R= Compressed Air Regulator or Compressed Air Reducer;
L=Compressed Air Lubricator o Compressed Air Oiler
FR.L : FR is a combination of the air filter regulator (F1) .L : Air line oiler, lubricator .
What's the lubricator ？ It's a oil injection equipment . When the FRL combo were installed on the machine , and the lubricant was necessary for the air line system , then we need a Lubricator , also called oiler . It's normal pneumatic equipment .
The difference of FR.L and FRL : As the air regulator and filter were combined in the FR.L system , so it is more space-saving . And lower cost .
