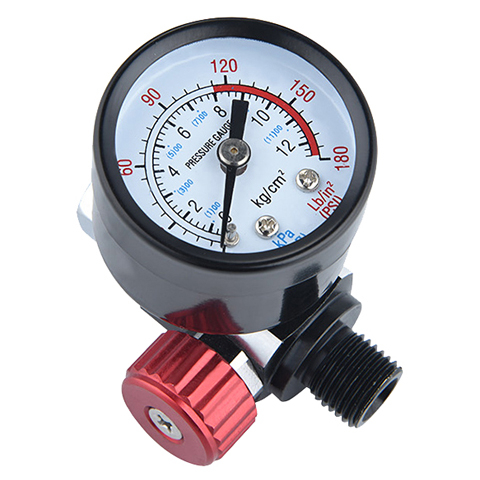

ACR Series Paint Gun Regulator With Pressure Gauge
Air Spray Gun Air Regulator
A perfect tool for Automotive Refinishing, Marine, Construction, Woodworking/Furniture making and all
industrial work.The professional choice.
Regulating your air input allows you to set the correct pressure whilst spraying, this will save your
time and provide you with the control and ease of your workflow.
Suitable for all other air tools that require and accurate pressure to operate.
Air Inlet: 1/4"
Working Pressure: 0-140PSI/10Bar
Material: Aluminium, Brass ,Stainless steel for choosing.
ACR Series Air Spray Gun Regulator Ordering Code:
ACR Series Air Spray Gun Regulator Usage:
1.Air Regulator With the Spray Gun
2. With The Spray Gun Water Trap
ACR Series Air Spray Gun Regulator Feature
1. Back pressure structure, compact type, cost-effective, installation time saving.
2. Single unit installation; easy to mount.
Air Inlet: 1/4"
Working Pressure: 0-140PSI/10Bar
Material: Aluminium, Brass ,Stainless steel for choosing.
Gauge: Considering the working inviroment, all of the gauge face are Glass material.
How to choose the correct spray gun regulator
ARC100-G-02C(Spray Gun Regulator) is a pressure regulator that reduces the input pressure of the air to a desired value at its output. If the load flow decreases, then the regulator flow must decrease as well. If the load flow increases, then the regulator flow must increase in order to keep the controlled pressure from decreasing due to a shortage of air in the pressure system.
ARC-HVLP-02(Air Cheat Regulator /Cheater Valve)
It's a control valve which through adjusting the discharge area to regulate the flow rate .
In one word: ARC100-G-02C seting the pressure ,but not limit the flow rate. If the similar regulator already was intalled on your air compressor , then ARC-HVLP-02is enough.
ARC-HVLP-02 is a air flow rate control valve. But it have no function of seting the outputing pressure. If there is no ARC-HVLP-02 in the whole air line , then we also need both of them.
The difference with other air regulator.
The compact design , can be installed on the compressor . Or working as the inline air regulator .
Compared with AR,R...Sereis regulator, SDR Series has the same function , but more space-saving because the compact body design .
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the ACR Series Air Spray Gun Regulator sample for free ?
Yes , if one sample .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
1 Year Standard Warranty
Neu-Master Pneumatic warrants these products to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.
Note: Spray Gun Air Regulator, Spray Gun Regulator, Paint gun Regulator, Spray Gun Pressure Regulator, Paint gun Air Regulator are all for working with the air compressor or the air spray gun.
What does FRL mean:(FRL meaning ) F = Compressed Air filter ; R= Compressed Air Regulator or Compressed Air Reducer;
L=Compressed Air Lubricator o Compressed Air Oiler
FR.L : FR is a combination of the air filter regulator (F1) .L : Air line oiler, lubricator .
What's the lubricator ? It's a oil injection equipment . When the FRL combo were installed on the machine , and the lubricant was necessary for the air line system , then we need a Lubricator , also called oiler . It's normal pneumatic equipment .
The difference of FR.L and FRL : As the air regulator and filter were combined in the FR.L system , so it is more space-saving . And lower cost .
