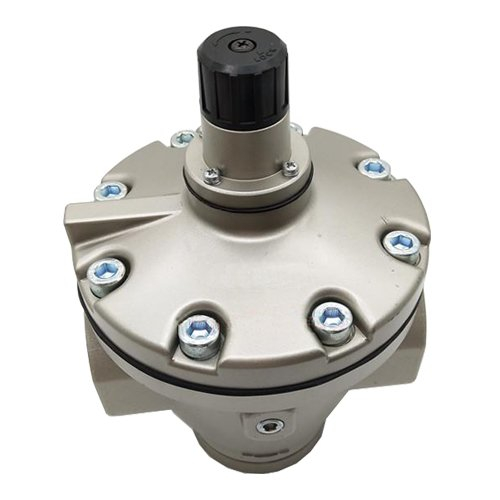

AR Main Line High Flow Air Regulator
PT,G,NPT Thread are available .
AR Big Size Regulator,equivalent as SMC
With manometer or without manometer choice.
Port size : 1/2-1" 2" PT,G,NPT Thread are available .
Huge Flow Rate ,reasonable cost,durable feature .
Main Line High Flow Air Regulator Preparation.pdf

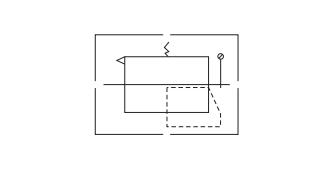

AR High Flow Air Regulator Symbol:
AR High Flow Air Regulator Description :
Cost effective and clean looking, AR Series regulators offer various pressure range settings to accommodate most applications. The locking adjustment knob prevents accidental setting changes. The modular design of the AR series could connects with other pneumatic quipment.

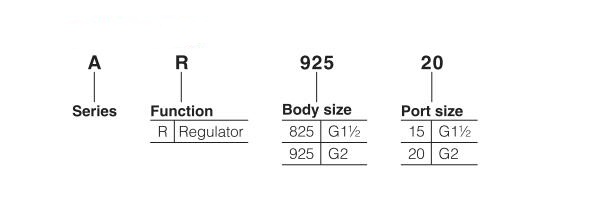

AR High Flow Air Regulator Ordering Code:
AR High Flow Air Regulator Specification :
| Model | AR825-15 | AF925-20 |
| Thread Pipe | G1½" | G2" |
| Rating Flow (L/Min) | 12000 | 20000 |
| Max Work Pressure | 1.0 Mpa | |
| Ensured Pressure Resistance | 1.5 Mpa | |
| Operating Temperature | -5~60℃ | |
| Structure | Inter Pilot And Overflow Vent Hole | |
| Adjustable Pressure Range | 0.5-0.85Mpa | |
| Gauge | G46-10-02 | |
Where the SMC standard Mainline high flow air regulator AR were used ? (Appliliance)
Normally it were installed togetherly with the huge air tank to control the whole air line input pressure .
Or as the airline pressure controller . With the pressure regulator , we could get the stable air output pressure .
The difference with other air regulator.
It was designed with big valve body , and huge air flow rate . So it is the best choice for the mainline working .
Compared with F2,AW,AFR Sereis filter regulator combo, AR has the same function , but with the huge air flow rate because the big valve body size .
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Air Pressure regulator Valve, High Flow air regulator, Mainline Air Flow Regulator, Air Regulator with gauge, Pneumatic Regulator are all for controlling the mainline air pressrue .
What does FRL mean:(FRL meaning ) F = Compressed Air filter ; R= Compressed Air Regulator or Compressed Air Reducer;
L=Compressed Air Lubricator o Compressed Air Oiler
FR.L : FR is a combination of the air filter regulator (F1) .L : Air line oiler, lubricator .
What's the lubricator ？ It's a oil injection equipment . When the FRL combo were installed on the machine , and the lubricant was necessary for the air line system , then we need a Lubricator , also called oiler . It's normal pneumatic equipment .
The difference of FR.L and FRL : As the air regulator and filter were combined in the FR.L system , so it is more space-saving . And lower cost .
