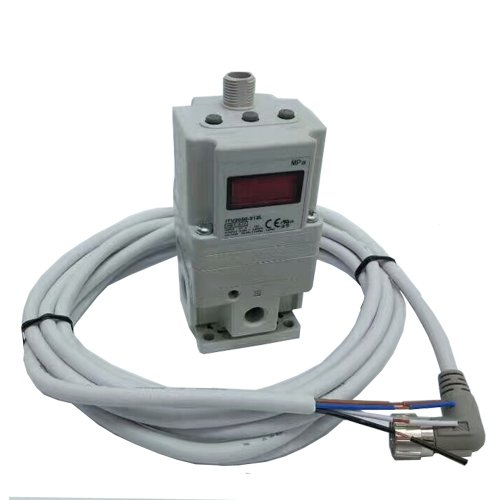

ITV2090,ITV2091 Series Electronic Vacuum Regulator(Vacuum)
ITV Series Electronic vacuum regulator ,equivalent to SMC
A total of LED Jump Word Display
Protection Structure Up To IP65
Compacted And Light weight
Two Connection Model Can Be Choosed
Short delivery time ,reasonable cost,durable feature .
ITV 2090 Series Electronic Vacuum Regulator.pdf

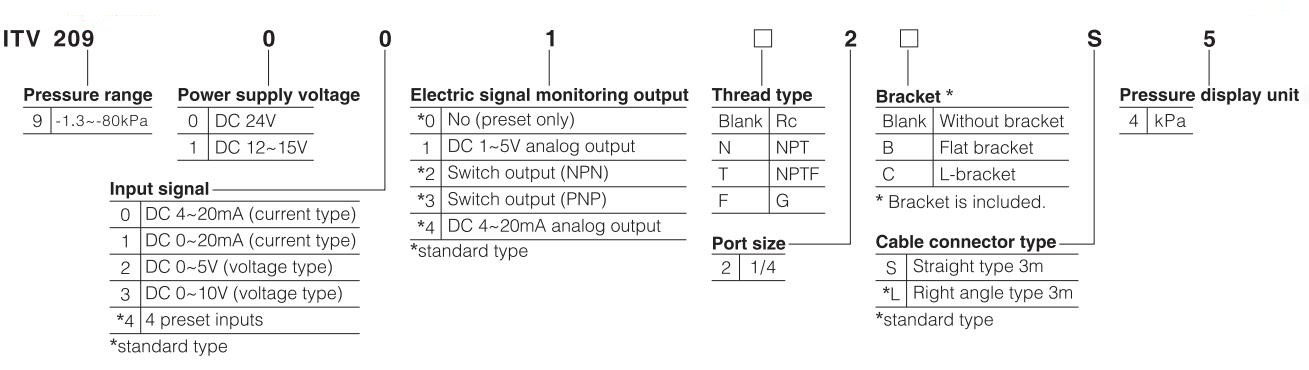

ITV2090,ITV2091 Electronic Vacuum Regulator Ordering Code:
ITV2090,ITV2091 Electronic Vacuum Regulator Specification:
Model | ITV2090 | ITV2091 | ||
| Minimum supply vacuum pressure | Set pressure -13.3kPa | |||
| Maximun supply vacuum pressure | -101kPa | |||
| Set pressure range | -1.3～-80kPa | |||
Power supply | Voltage | DC24V±10% | DC12-15V | |
Current consumption | Power supply voltage DC24V:0.12A or less Power supply voltage DC12-15V:0.18A or less | |||
Input Signal | Current type(Note 1) | 4～20mA DC ,0-20mA DC (Sink type) | ||
| Voltage type | DC 0～5V,DC 0～10 V | |||
| Preset input | 4 points(Negative common) | |||
Input impedance | Digital input | 250Ω or less | ||
| Current type | Approx. 6.5kΩ | |||
| Voltage type | Approx 4.7kΩ(24VDC),Approx 2.0kΩ (12VDC), | |||
Output Signal(Note2) (Monitor output) | Analog output | DC1～5V(Load impedance: 1kΩ Above) 4-20mA DC(Sink type)(Output impedence;250Ω or less ) Output accuracy ±6% F.S. or less | ||
| Switch output | NPN open collector output: Max.30V,80mA PNP open collector output: Max.80 mA | |||
| Linearity | ±1%F.S. or less | |||
| Hysteresis | 0.5%F.S. or less | |||
| Repeatability | ±0.5%F.S. or less | |||
| Sensitivity | 0.2%F.S. or less | |||
Temperature characteristacs | ±0.12%F.S. /℃ or less | |||
Output pressure display | Accuracy | ±2%F.S. ±1 digit or less | ||
| Unit | kPa:Minimum display 1 | |||
Ambient and fluid temperature | 0℃～50℃(No condensation) | |||
| Protective structure | Quite IP65 | |||
Note1: 2-wire type 4-20mA DC is not available. Power suply voltage(24VDC or 12 to 15VDC) is required.
Note2: Optional analog output or switch output. If select switch output ,select NPN output or PNP output .
Where the ITV2090,ITV2091series SMC standard electronic vacuum regulators were used ? (Appliliance)
Normally it were installed togetherly with the machine, for controling the inputing vacuum pressure accurately .
Or as the airline vacuum controller ,we could get the stable vacuum pressure .
The difference with other air regulator.
With digital screen .Compacted And Lightweight. Low Power Consumption,Less Than 4W.
Exactly control the outputing vacuum pressure .
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days ..
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Electronic Vacuum Regulator, Vacuum Regulator, Vacuum Regulator Valve, Vacuum Pressure Regulator, Digital Vacuum Regulator are all for controlling the outputing vacuum pressrue .
What does FRL mean:(FRL meaning ) F = Compressed Air filter ; R= Compressed Air Regulator or Compressed Air Reducer;
L=Compressed Air Lubricator o Compressed Air Oiler
FR.L : FR is a combination of the air filter regulator (F1) .L : Air line oiler, lubricator .
What's the lubricator ？ It's a oil injection equipment . When the FRL combo were installed on the machine , and the lubricant was necessary for the air line system , then we need a Lubricator , also called oiler . It's normal pneumatic equipment .
The difference of FR.L and FRL : As the air regulator and filter were combined in the FR.L system , so it is more space-saving . And lower cost .
