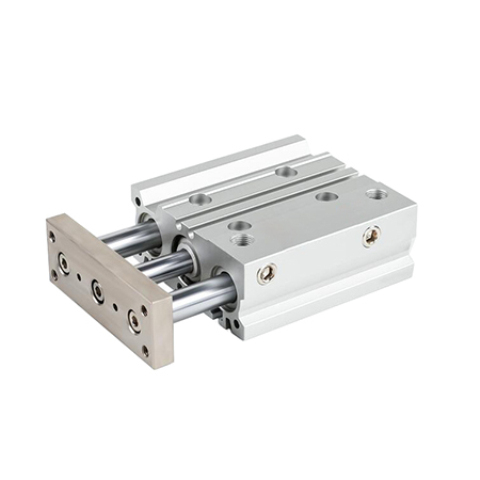

Guided Cylinder TCM TCL Tri Rod Cylinder Bore Size 6 mm To 100 mm Equal To SMC MGP Series Tri Rod Cylinder
Pneumatic Components, Pneumatic Actuators and Air Cylinders, Pneumatic Guided Cylinders, Tri Rod Guided Air Cylinders, Heavy Duty, JIS Standard,TCL: with Linear Ball Bearing,6-100mm Bore, Brands, NEU-MASTER
Product Feature
●JIS standard is implemented.
●Two guides of special bearing steel and linear bearing or bronze bearing guide are used to prevent rotating.
They can bear high torque and radial load.
●Note: Steel ball bearing: It is suitable for elevation action of cylinder or a situation requiring high precision and high bearing ability,
especially for a situation requiring low fraction action process.
Bronze sliding bearing: It is suitable for action that has radial load resistance. Compared with normal cylinder of same use, the
horizontal impact resistance is doubled and it has stronger torsion rigidity.

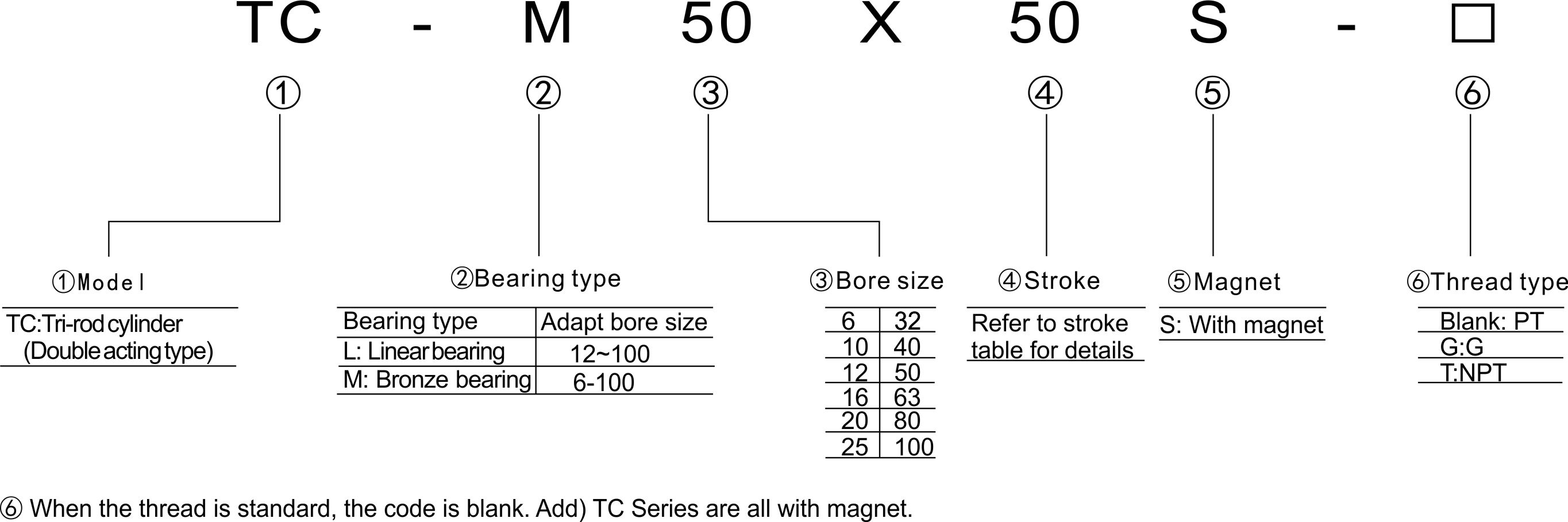

●Drive unit and guide unit are in the same barrel that no additional accessories are needed with minimal space required. The air intake is optional and it is convenient to install.Guided Cylinder TCM TCL Tri Rod Cylinder Ordering Code:
Guided Cylinder TCM TCL Tri Rod Cylinder Specification
| Guided Cylinder Bore (mm) | 6 | 10 | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80/100 | |
| Acting Type | Double Acting | |||||||||||
| Fliud | Air (To be filtered by 40μm filter element) | |||||||||||
| Operating Pressure | 0.15∽0.7Mpa(23∽100Psi) | 0.1∽1.0Mpa(14∽145Psi) | ||||||||||
| Proof pressure | 1.05Mpa(152Psi) | 1.5Mpa(215Psi) | ||||||||||
| Temperature℃ | -20∽70 | |||||||||||
| Speed Range mm/s | 50∽500 | 30∽500 | 50∽400 | |||||||||
| Stroke Tolerance | ≥100+1.5 0∽100 +1.0 | |||||||||||
| Cushion Type | Bumper | |||||||||||
Non Rotating Tolerance① | Linear Bearing | - | ±0.08° | ±0.07° | ±0.06° | ±0.05° | ±0.04° | |||||
| Bronze Bearing | ±1.0° | ±0.1° | ±0.09° | ±0.08° | ±0.06° | ±0.05° | ||||||
| Port Size② | M3x0.5 | M5x0.8 | 1/8" | 1/4" | 3/8" | |||||||

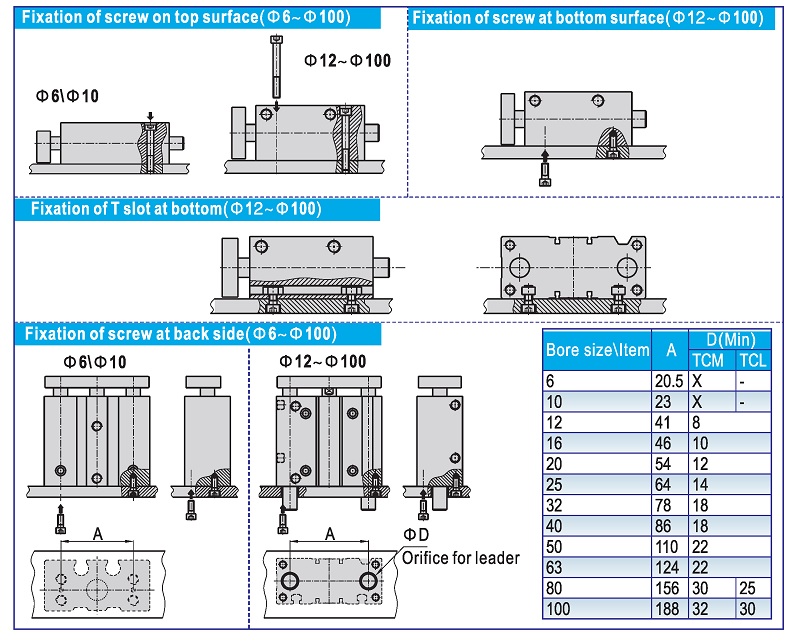

Guided Cylinder TCM TCL Tri Rod Cylinder Installation
Guided Cylinder TCM TCL Tri Rod Cylinder Stroke
| Guided Cylinder Bore(mm) | Standard Stroke(mm) | Max.std stroke |
6 | 5 10 15 20 | 20 |
| 10 | 5 10 15 20 25 30 | 30 |
| 12 | 10 20 25 30 40 50 60 70 75 80 90 100 125 150 | 150 |
| 16 | 20 25 30 40 50 60 70 75 80 90 100 125 150 175 200 | 200 |
| 20 25 | 20 25 30 40 50 60 70 75 80 90 100 125 150 175 200 225 250 | 250 |
| 32 40 50 63 80 100 | 25 30 40 50 60 70 75 80 90 100 125 150 175 200 225 250 | 250 |
Neu-Master Pneumatic warrants these Guided Cylinder TCM TCL Tri Rod Cylinder to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.
1 Year Standard Warranty
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us.
How about the lead time of the Guided Cylinder TCM TCL Tri Rod Cylinder, delivery time?
Normally we keep some stock , so the lead time will less than 15 work days .
Is the Pneumatic sample for free ?
Yes, but need afford the freight
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time :15 work days
