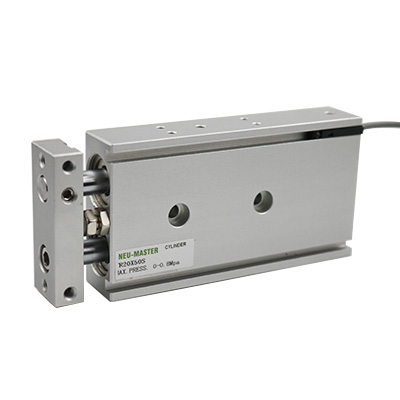

Guided Cylinder TR Dual Rod Cylinder Bore Size 10 mm To 32 mm Equal To AIRTAC TR Series Dual Rod Cylinder
Product Feature
●JIS standard is implemented.
●The non-rotating precision is high and deflection of the end of piston rod is low, which is suitable for precise guide.
●It adopts lengthening type sliding supporting guide. No additional lubricant is needed and it has good performance of guide.
●Mounting holes on three sides facilitates multi-position mounting.
●It has good resistance to bending and twisting movements.
●Except for axial, each side of the cylinder have installation orifices to provide several installation and fixation options.
●There are two groups of air intake and outlet on two sides of the cylinder for selection.
●Bumper in front of the barrel can adjust the stroke of the cylinder and relieve impact.
●Standard configuration of this series has magnet. Configuration without magnet is not available.
Guided Cylinder TR Dual Rod Cylinder Ordering Code:
Guided Cylinder TR Dual Rod Cylinder Specification
| Small Air Cylinder Bore (mm) | 10 | 16 | 20 | 25 | 32 | |
| Acting Type | Double Acting Double Rod | |||||
| Fluid | Air (To be filtered by 40μm filter element) | |||||
| Operating Pressure | 0.1∽1.0Mpa(215Psi) | |||||
| Proof pressure | 1.5Mpa(215Psi) | |||||
| Temperature ℃ | -20∽70 | |||||
| Speed Range mm/s | Single Acting:30∽500 | |||||
| Stroke tolerance | ≥100+1.5 0∽100 +1.0 | |||||
| Adjustable Stroke mm | -5∽0 | |||||
| Cushion Type | Bumper | |||||
| Non-Rotating Tolerance | ±0.2° | ±0.15° | ±0.1° | |||
| Port Size | M5x0.8 | 1/8" | ||||
Guided Cylinder TR Dual Rod Cylinder Structure
Guided Cylinder TR Dual Rod Cylinder Stroke
| TN Double Rod Cylinder Bore(mm) | Standard Stroke(mm) | Max.std stroke |
10 | 10 20 30 40 50 | 50 |
| 16 | 10 20 30 40 50 60 70 80 90 100 | 100 |
| 20 | 10 20 30 40 50 60 70 80 90 100 125 150 175 200 | 200 |
| 25 | 10 20 30 40 50 60 70 80 90 100 125 150 175 200 | 200 |
| 32 | 10 20 30 40 50 60 70 80 90 100 125 150 175 200 | 200 |
Neu-Master Pneumatic warrants these compact pneumatic cylinders to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.
1 Year Standard Warranty
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us.
How about the lead time of the Guided Cylinder TR Dual Rod Cylinder, delivery time?
Normally we keep some stock , so the lead time will less than 15 work days .
Is the Pneumatic sample for free ?
Yes, but need afford the freight
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time :15 work days
