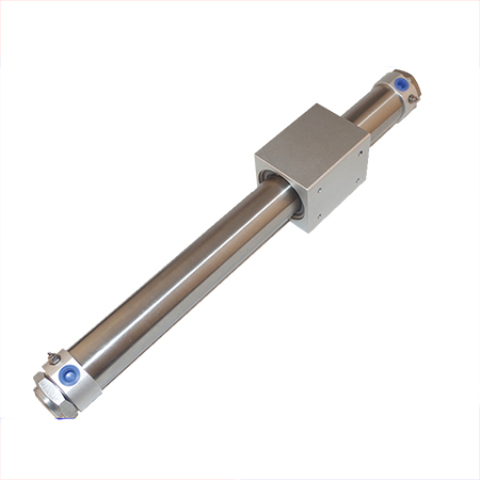

RMS Series Pneumatic Rodless Cylinder Bore Size 16 mm To 40 mm Equal To AIRTAC RMS Pneumatic Rodless Cylinder
Product Feature
●This magnetic cylinder is basically a pneumatic rodless cylinder featuring a mobil piston fitted with annular magnets.
●The mobile carriage is also equipped with magnets to provide coupling (carriage/piston). The carriage slides freely
along the main tube.
●It is dust-proof as the isolation between the carriage and piston.
●Compact design .●The non adjustable rubber bumbers and the adjustable pneumatic cushioning on both ends of the cylinder ensure
smooth action.
| Catalog: |
RMS Series Pneumatic Rodless Cylinder Ordering Code
RMS Series Pneumatic Rodless Cylinder Specification
| Series name | RMS | RMS,RMSF Series | RMSP Series | |||||||
| Rodless Cylinder Bore (mm) | 16 | 16 | 20 | 25 | 32 | 40 | 16 | 20 | 32 | |
| Acting Type | Double Acting Type | |||||||||
| Fluid | Air (To be filtered by 40μm filter element) | |||||||||
| Operating Pressure | 0.15∽0.7Mpa(22∽100Psi)(1.5∽7.0Bar) | |||||||||
| Proof pressure | 1.00Mpa(150Psi)(10.5Bar) | |||||||||
| Temperature ℃ | -10∽60 | |||||||||
| Speed Range mm/s | 50∽400 | |||||||||
| Stroke Tolerance | 0∽250+1.0 ; 251∽1000+1.5 ; ≥1000+2.0 | |||||||||
| Cushion Type | Variable Cushion+Fixed Cushion | |||||||||
| Sensor Switches | DS1-H□N,DS1-H□P, | |||||||||
| Safe Holding Force N | 60 | 140 | 200 | 360 | 550 | 850 | 140 | 200 | 550 | |
| Port Size | M5x0.8 | 1/8" | 1/4" | M5x0.8 | 1/8" | |||||
RMS Series Pneumatic Rodless Cylinder Structure
RMS Series Pneumatic Rodless Cylinder Stroke
| Pneumatic Slide Table Bore(mm) | Standard Stroke(mm) | Max.std stroke |
10 | 50 100 150 200 250 300 | 1000 |
| 16 | 50 100 150 200 250 300 350 400 450 500 | 1500 |
| 20 | 50 100 150 200 250 300 350 400 450 500 600 700 750 800 900 1000 | 2000 |
| 25 | 50 100 150 200 250 300 350 400 450 500 600 700 750 800 900 1000 | 2500 |
| 32 | 50 100 150 200 250 300 350 400 450 500 600 700 750 800 900 1000 | 3000 |
| 40 | 50 100 150 200 250 300 350 400 450 500 600 700 750 800 900 1000 | 3000 |
Neu-Master Pneumatic warrants these compact pneumatic cylinders to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.
1 Year Standard Warranty
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us.
How about the lead time of the RMS Series Pneumatic Rodless Cylinder, delivery time?
Normally we keep some stock , so the lead time will less than 15 work days .
Is the Pneumatic sample for free ?
Yes, but need afford the freight
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time :15 work days
