Multi-Mount MD,MK Compact Cylinder Bore Size 12 Mm To 100mm Equal To AIRTAC MD,MK Series Compact Cylinder
Shop for the Multi-Mount MD,MK Compact Cylinder by NEU-MASTER

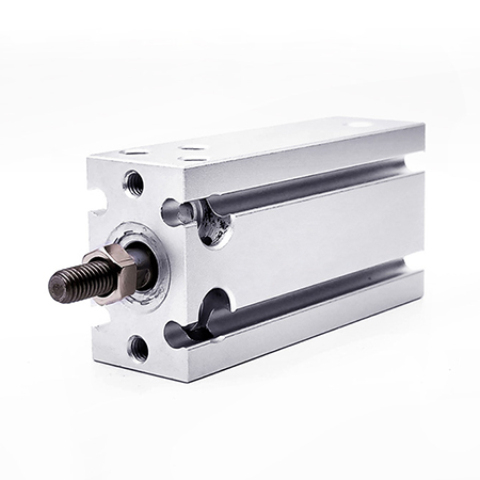

Product Feature
These air cylinders are available in the following modes: double rod, double acting, single acting (push), and single acting (pull).
Available in bore sizes 6mm to 32mm and numerous stroke sizes. Version with magnet is also an option.
● Manufactured by our enterprise●The seal material with high temperature resistance is adopted to guarantee the normal operation of cylinder at 150 degrees Celsius.

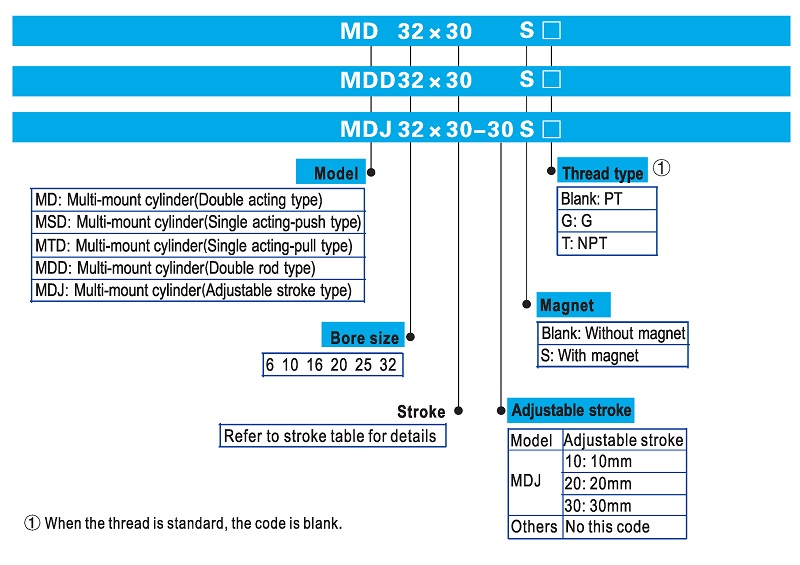

Multi-Mount MD Pneumatic Compact Cylinder Ordering Code
Multi-Mount MD Pneumatic Compact Cylinder Specification
| Compact Pneumatic Cylinder Bore Size(mm) | 6 | 10 | 16 | 20 | 25 | 32 | |
| Acting type | MD,MDD,MDJ | Double Acting | |||||
| MSD,MTD | Single Acting-Pull ; Single Acting-Push | ||||||
| Fluid | Air (To be filtered by 40μm filter element) | ||||||
Operating Pressure | Double Acting | 0.1∽1.0Mpa(15∽145Psi)(1.0∽10Bar) | |||||
| Single Acting | 0.2∽1.0Mpa(28∽145Psi)(2.0∽10Bar) | ||||||
| Proof Pressure | 1.5Mpa(215Psi)(15Bar) | ||||||
| Temperature℃ | -20∽80 | ||||||
| Speed Range mm/s | Double acting cylinder: 30∽500mm/s ; Single Acting Cylinder 50∽500mm/s | ||||||
| Stroke Tolerance | +1.0 | ||||||
| Cushion Type | Bumper | ||||||
| Port Size① | M5*0.8 | 1/8" | |||||
① PT thread , G thread ,NPT thread are available for 1/8"pipe size.
Multi-Mount MD Pneumatic Compact Cylinder Stroke
| MD Compact Cylinder Bore Size | Standard Stroke(mm) | Max.std stroke | Max. stroke | |
6 | Double Acting | 5 10 15 20 25 30 35 | 35 | 40 |
| Single Acting | 5 10 15 20 | 20 | -- | |
| 10 | Double Acting | 5 10 15 20 25 30 35 | 35 | 40 |
| Single Acting | 5 10 15 20 | 20 | -- | |
| 16 | Double Acting | 5 10 15 20 25 30 40 50 | 50 | 70 |
| Single Acting | 5 10 15 20 | 20 | -- | |
| 20 | Double Acting | 5 10 15 20 25 30 40 50 60 | 60 | 80 |
| Single Acting | 5 10 15 20 | 20 | -- | |
| 25 | Double Acting | 5 10 15 20 25 30 40 50 60 | 60 | 80 |
| Single Acting | 5 10 15 20 | 20 | -- | |
| 32 | Double Acting | 5 10 15 20 25 30 40 50 60 | 60 | 80 |
| Single Acting | 5 10 15 20 | 20 | -- | |
Neu-Master Pneumatic warrants these compact pneumatic cylinders to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.
1 Year Standard Warranty
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us.
How about the lead time of the Multi-Mount MD Pneumatic Compact Cylinder , delivery time?
Normally we keep some stock , so the lead time will less than 15 work days .
Is the Pneumatic sample for free ?
Yes, but need afford the freight
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time :15 work days
