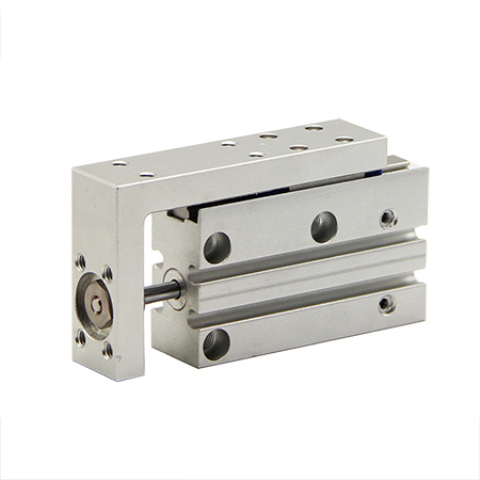

Compact Pneumatic Slide Cylinder HLH Series Cylinder Bore Size 6 mm To 20 mm Equal To AIRTAC HLH Pneumatic Slide Cylinder
Product Feature
●HLH pneumatic slide table cylinder with compact design.
●Miniature linear roller ball bearing integrated wise cylinder.
●With excellent straightness and non-rotation precision, it is more suitable for precision assembly.
●Mounting is possible from four directions.
●Piping is possible from three directions.
| Catalog: |
Compact Pneumatic Slide Cylinder HLH Series Ordering Code:
Compact Pneumatic Slide Cylinder HLH Series Specification
| Small Air Cylinder Bore (mm) | 6 | 10 | 16 | 20 | |
| Acting Type | Double Acting Type | ||||
| Fluid | Air (To be filtered by 40μm filter element) | ||||
| Operating Pressure | Bore 6mm | 0.15∽0.7Mpa(22∽100Psi)(1.5∽7.0Bar) | |||
| Others | 0.06∽0.7Mpa(9∽100Psi)(0.6∽7.0Bar) | ||||
| Proof pressure | 1.05Mpa(150Psi)(10.5Bar) | ||||
| Temperature ℃ | -20∽70 | ||||
| Speed Range mm/s | 50∽500 | ||||
| Allowable Kinetic Energy J | 0.008 | 0.025 | 0.05 | 0.1 | |
| Stroke Tolerance | +1.0 | ||||
| Cushion Type | Bumper | ||||
| Sensor Switches | DS1-H□N,DS1-H□P, | ||||
| Port Size | M5x0.8 | ||||
Compact Pneumatic Slide Cylinder HLH Series Inner Structure
Compact Pneumatic Slide Cylinder HLH Series Stroke
| Pneumatic Slide Table Bore(mm) | Standard Stroke(mm) | Max.std stroke |
6 | 5 10 15 20 25 30 | 30 |
| 10 | 5 10 15 20 25 30 40 50 | 50 |
| 16 20 | 5 10 15 20 25 30 40 50 60 | 60 |
Neu-Master Pneumatic warrants these compact pneumatic cylinders to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.
1 Year Standard Warranty
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us.
How about the lead time of the Compact Pneumatic Slide Cylinder HLH Series, delivery time?
Normally we keep some stock , so the lead time will less than 15 work days .
Is the Pneumatic sample for free ?
Yes, but need afford the freight
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time :15 work days
Compact Pneumatic Slide Cylinder HLH Series Cylinder Bore Size 6 mm To 20 mm Equal To AIRTAC HLH Pneumatic Slide Cylinder
Product Feature
●HLH pneumatic slide table cylinder with compact design.
●Miniature linear roller ball bearing integrated wise cylinder.
●With excellent straightness and non-rotation precision, it is more suitable for precision assembly.
●Mounting is possible from four directions.
●Piping is possible from three directions.
| Catalog: |
Compact Pneumatic Slide Cylinder HLH Series Ordering Code:
Compact Pneumatic Slide Cylinder HLH Series Specification
| Small Air Cylinder Bore (mm) | 6 | 10 | 16 | 20 | |
| Acting Type | Double Acting Type | ||||
| Fluid | Air (To be filtered by 40μm filter element) | ||||
| Operating Pressure | Bore 6mm | 0.15∽0.7Mpa(22∽100Psi)(1.5∽7.0Bar) | |||
| Others | 0.06∽0.7Mpa(9∽100Psi)(0.6∽7.0Bar) | ||||
| Proof pressure | 1.05Mpa(150Psi)(10.5Bar) | ||||
| Temperature ℃ | -20∽70 | ||||
| Speed Range mm/s | 50∽500 | ||||
| Allowable Kinetic Energy J | 0.008 | 0.025 | 0.05 | 0.1 | |
| Stroke Tolerance | +1.0 | ||||
| Cushion Type | Bumper | ||||
| Sensor Switches | DS1-H□N,DS1-H□P, | ||||
| Port Size | M5x0.8 | ||||
Compact Pneumatic Slide Cylinder HLH Series Inner Structure
Compact Pneumatic Slide Cylinder HLH Series Stroke
| Pneumatic Slide Table Bore(mm) | Standard Stroke(mm) | Max.std stroke |
6 | 5 10 15 20 25 30 | 30 |
| 10 | 5 10 15 20 25 30 40 50 | 50 |
| 16 20 | 5 10 15 20 25 30 40 50 60 | 60 |
Neu-Master Pneumatic warrants these compact pneumatic cylinders to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.
1 Year Standard Warranty
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us.
How about the lead time of the Compact Pneumatic Slide Cylinder HLH Series, delivery time?
Normally we keep some stock , so the lead time will less than 15 work days .
Is the Pneumatic sample for free ?
Yes, but need afford the freight
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time :15 work days
