Pneumatic Linear Actuator HLQ Series Actuator
NEU-MASTER
Pneumatic Linear Actuator HLQ Series
Availability: | |
---|---|

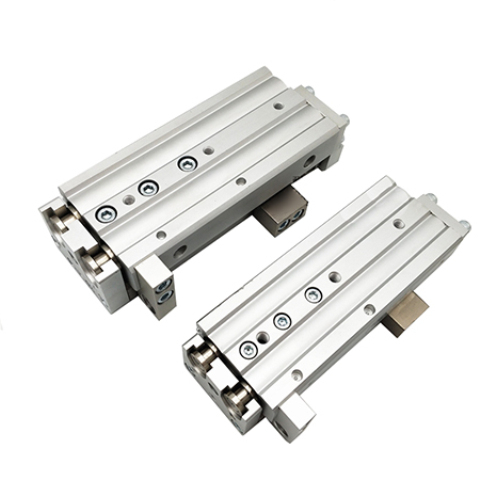

Pneumatic Linear Actuator HLQ Series Actuator Bore Size 6 mm To 25 mm Equal To AIRTAC HLQ Pneumatic Linear Actuator
Product Feature
●Recirculating linear ball bearing,pneumatic linear actuator ,it achieves high precision,high rigidity,with antirust and dustproof function.
●Through hole for body mounting.
●Pin holes positioning Improved repeatability of work mounting.
●Floating joint design Piston rod needn’t endure additional torque.
●Dual rod-doubles the outpute thrust.
●Pin holes for positioning Improved repeatability of body mounting.
●Body mounting holes Provide 3 mounting positions.
Catalog: |

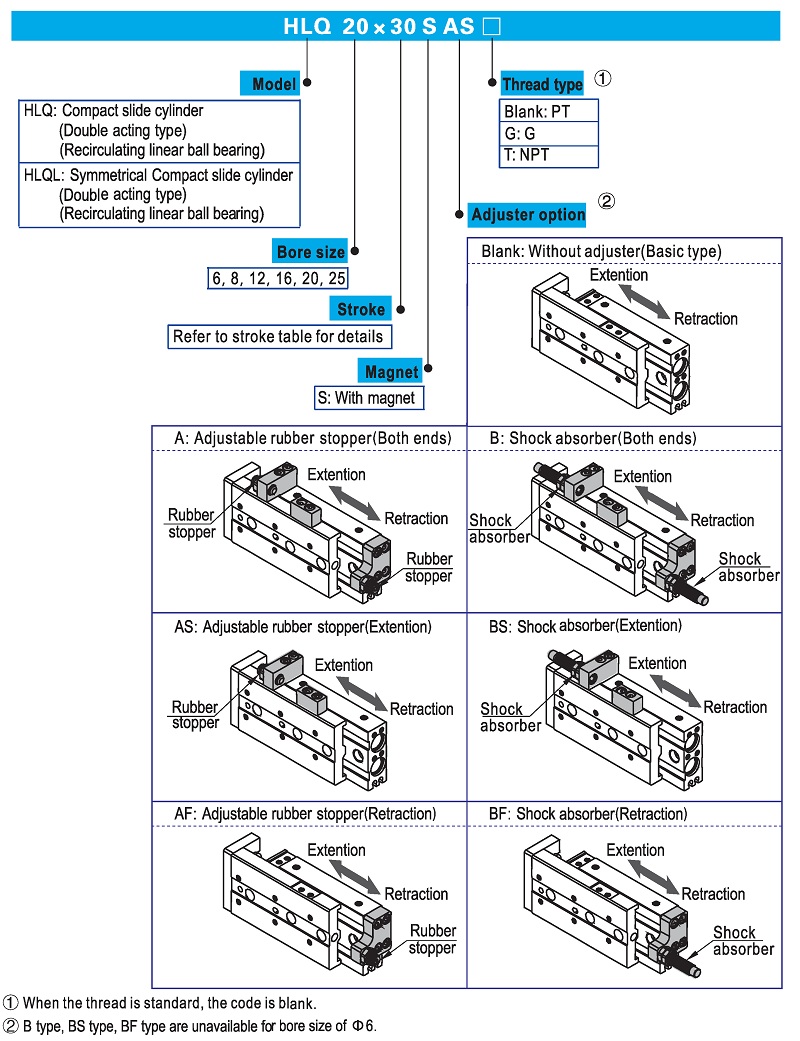

Pneumatic Linear Actuator HLQ Series Actuators Ordering Code:
Pneumatic Linear Actuator HLQ Series Actuator Specification
Small Air Cylinder Bore (mm) | 6 | 8 | 10 | 16 | 20 | 25 | |
Guide Rail Width | 10 | 10 | 7 | 9 | 9 | 12 | |
Number of Guide Rail | Single Guide Rail | Double Guide Rail | |||||
Acting Type | Double Acting Type | ||||||
Fluid | Air (To be filtered by 40μm filter element) | ||||||
Operating Pressure | 0.15∽0.7Mpa(22∽100Psi)(1.5∽7.0Bar) | ||||||
Proof pressure | 1.05Mpa(150Psi)(10.5Bar) | ||||||
Temperature ℃ | -20∽70 | ||||||
Speed Range mm/s | 50∽500 | ||||||
Allowable Kinetic Energy J | 0.008 | 0.025 | 0.05 | 0.1 | |||
Stroke Tolerance | 0∽100+1.0 ; ≥100+1.5 | ||||||
Cushion Type | Bumper(Both Ends);Shock Absorber | ||||||
Sensor Switches | DS1-H□N,DS1-H□P, | ||||||
Port Size | M5x0.8 | 1/8" |

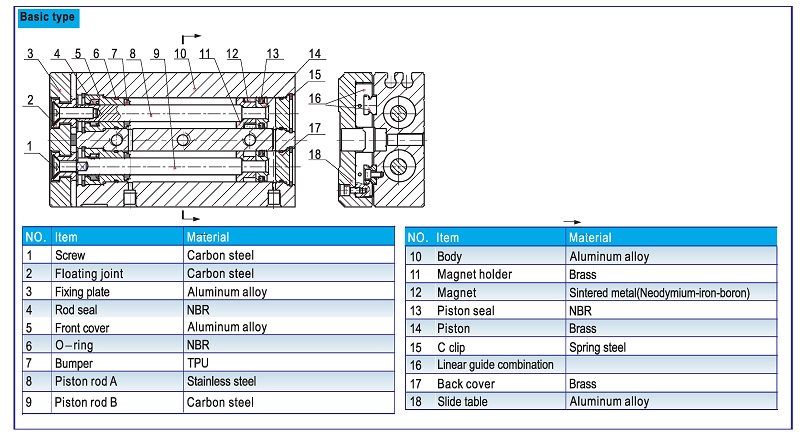

Pneumatic Linear Actuator HLQ Series Actuator Inner Structure
Pneumatic Linear Actuator HLQ Series Actuator Stroke
Pneumatic Slide Table Bore(mm) | Standard Stroke(mm) | Max.std stroke |
6 | 10 20 30 40 50 | 50 |
8 | 10 20 30 40 50 75 | 75 |
12 | 10 20 30 40 50 75 100 | 100 |
16 | 10 20 30 40 50 75 100 125 | 125 |
20 | 10 20 30 40 50 75 100 125 150 | 150 |
25 | 10 20 30 40 50 75 100 125 150 | 150 |
Neu-Master Pneumatic warrants these compact pneumatic cylinders to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.
1 Year Standard Warranty
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us.
How about the lead time of the Pneumatic Linear Actuator HLQ Series Actuator, delivery time?
Normally we keep some stock , so the lead time will less than 15 work days .
Is the Pneumatic sample for free ?
Yes, but need afford the freight
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time :15 work days
