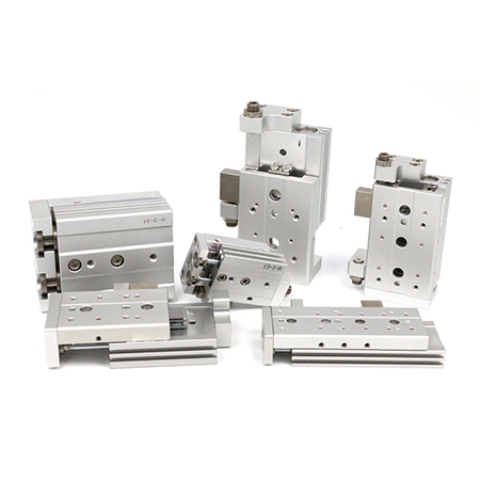

HLS Series Pneumatic Linear Actuator Bore Size 6 mm To 25 mm Equal To AIRTAC HLS Pneumatic Linear Actuator
Product Feature
| Catalog: |

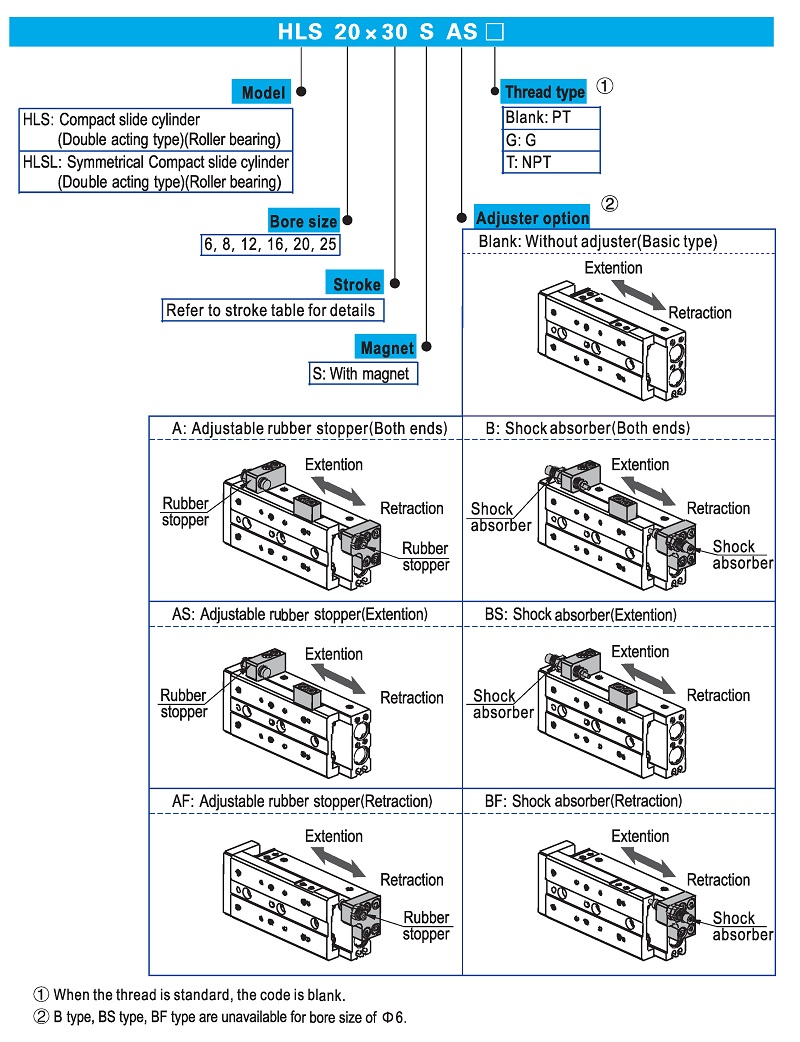

HLS Series Pneumatic Linear Actuator Ordering Code
HLS Series Pneumatic Linear Actuator Specification
| Small Air Cylinder Bore (mm) | 6 | 8 | 10 | 16 | 20 | 25 | |
| Acting Type | Double Acting Type | ||||||
| Fluid | Air (To be filtered by 40μm filter element) | ||||||
| Operating Pressure | 0.15∽0.7Mpa(22∽100Psi)(1.5∽7.0Bar) | ||||||
| Proof pressure | 1.05Mpa(150Psi)(10.5Bar) | ||||||
| Temperature ℃ | -20∽70 | ||||||
| Speed Range mm/s | 50∽500 | ||||||
| Stroke Tolerance | 0∽100+1.0 ; ≥100+1.5 | ||||||
| Cushion Type | Bumper(Both Ends);Shock Absorber | ||||||
| Sensor Switches | DS1-H□N,DS1-H□P, | ||||||
| Port Size | M5x0.8 | 1/8" | |||||

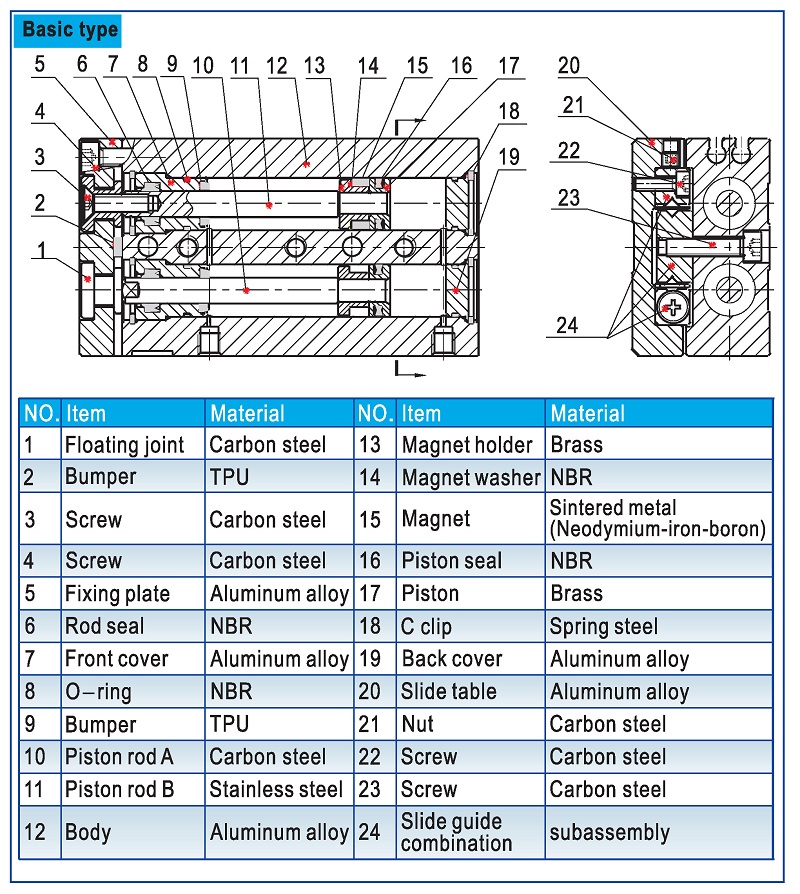

HLS Series Pneumatic Linear Actuator Structure
HLS Series Pneumatic Linear Actuator Stroke
| Pneumatic Slide Table Bore(mm) | Standard Stroke(mm) | Max.std stroke |
6 | 10 20 30 40 50 | 50 |
| 8 | 10 20 30 40 50 75 | 75 |
| 12 | 10 20 30 40 50 75 100 | 100 |
| 16 | 10 20 30 40 50 75 100 125 | 125 |
| 20 | 10 20 30 40 50 75 100 125 150 | 150 |
| 25 | 10 20 30 40 50 75 100 125 150 | 150 |
