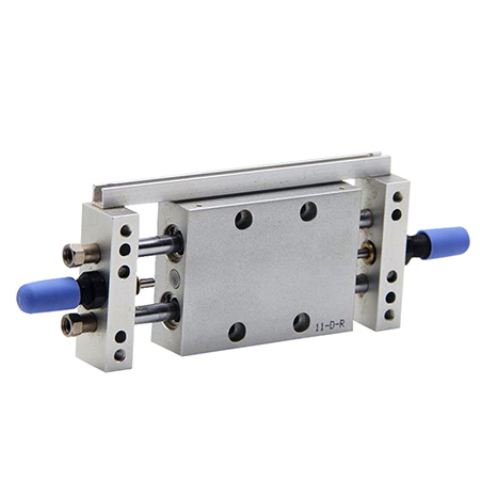

Pneumatic Slide Table Cylinder STW Series Cylinder Bore Size 10 mm To 32 mm Equal To AIRTAC STW Series Pneumatic Slide Cylinder
Product Feature
●Both body and fixing plates can be installed.
●Three sets of air inlet and outlet are available for customer to choose and convenient for piping.
●The structure of double-piston rod provides the good performance of anti-bending and anti-torsion and can bear relatively stronger radial movement and load.
●Buffer device such as the integrated shock absorber can effectively slowdown impact velocity and extend life.
| Catalog: |

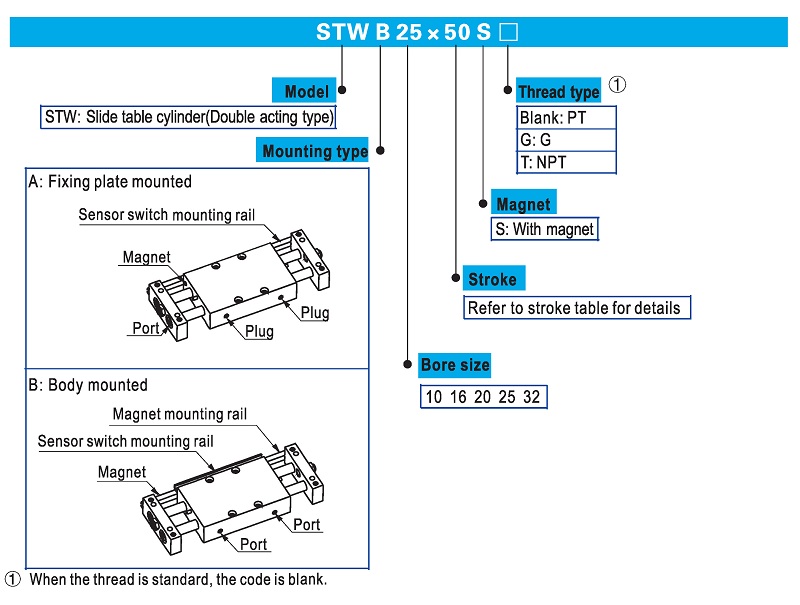

Pneumatic Slide Table Cylinder STW Series Ordering Code:
Pneumatic Slide Table Cylinder STW Series Specification
| Small Air Cylinder Bore (mm) | 10 | 16 | 20 | 25 | 32 | |
| Acting Type | Double Acting Type | |||||
| Fluid | Air (To be filtered by 40μm filter element) | |||||
| Operating Pressure | 0.1∽1.0Mpa(15∽1450Psi) | |||||
| Proof pressure | 1.5Mpa(215Psi) | |||||
| Temperature ℃ | -20∽70 | |||||
| Speed Range mm/s | 30∽500 | |||||
| Stroke Tolerance | 0∽100 +1.0; ≥100+1.5 | |||||
| Cushion Type | Shocker Absorber | |||||
| Non-RotatingTolerance | ±0.1° | ±0.05° | ±0.03° | |||
| Port Size | M5x0.8 | 1/8" | ||||
Pneumatic Slide Table Cylinder STW Series Inner Structure
Pneumatic Slide Table Cylinder STW Series Stroke
| Pneumatic Slide Table Bore(mm) | Standard Stroke(mm) | Max.std stroke |
10 | 25 50 75 100 | 100 |
| 16 20 25 32 | 25 50 75 100 125 150 175 200 | 200 |
Neu-Master Pneumatic warrants these compact pneumatic cylinders to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.
1 Year Standard Warranty
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us.
How about the lead time of the Pneumatic Slide Table Cylinder STW Series, delivery time?
Normally we keep some stock , so the lead time will less than 15 work days .
Is the Pneumatic sample for free ?
Yes, but need afford the freight
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time :15 work days
