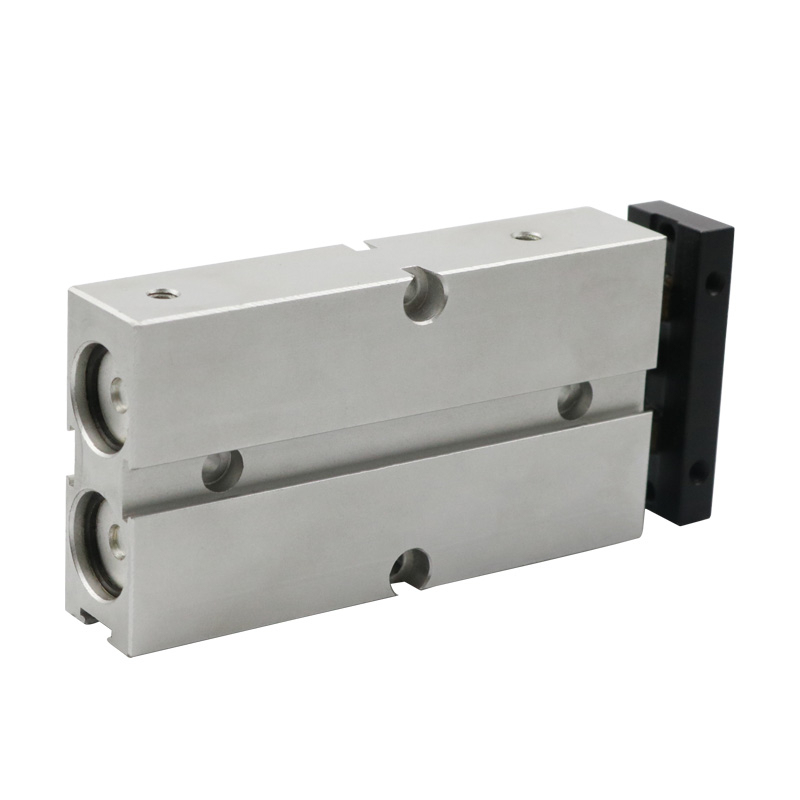

Guided Cylinder TN Double Rod Cylinder
NEU-MASTER
TN Double Rod Cylinder Bore 10-32
Availability: | |
---|---|
Guided Cylinder TN Double Rod Cylinder Bore Size 10 mm To 32 mm Equal To AIRTAC TN Series Dual Rod Cylinder
Product Feature

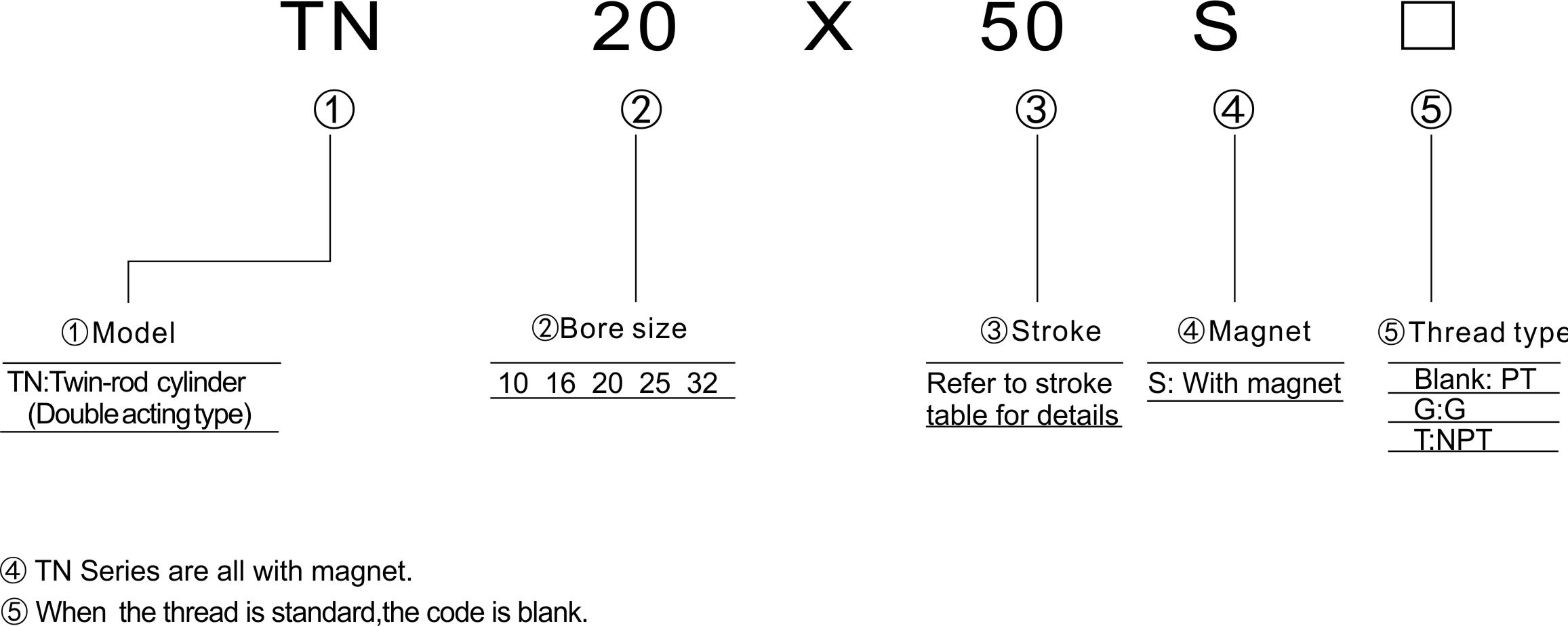

Guided Cylinder TN Double Rod Cylinder Ordering Code:
Guided Cylinder TN Double Rod Cylinder Specification
Small Air Cylinder Bore (mm) | 10 | 16 | 20 | 25 | 32 | |
Acting Type | Double Acting Double Rod | |||||
Fluid | Air (To be filtered by 40μm filter element) | |||||
Operating Pressure | 0.1∽1.0Mpa(215Psi) | |||||
Proof pressure | 1.5Mpa(150Psi) | |||||
Temperature ℃ | -20∽70 | |||||
Speed Range mm/s | Single Acting:30∽500 | |||||
Stroke tolerance | ≥100+1.5 0∽100 +1.0 | |||||
Adjustable Stroke mm | -10∽0 | |||||
Cushion Type | Bumper | |||||
Non-Rotating Tolerance | ±0.4° | ±0.3° | ||||
Port Size | M5x0.8 | 1/8" |

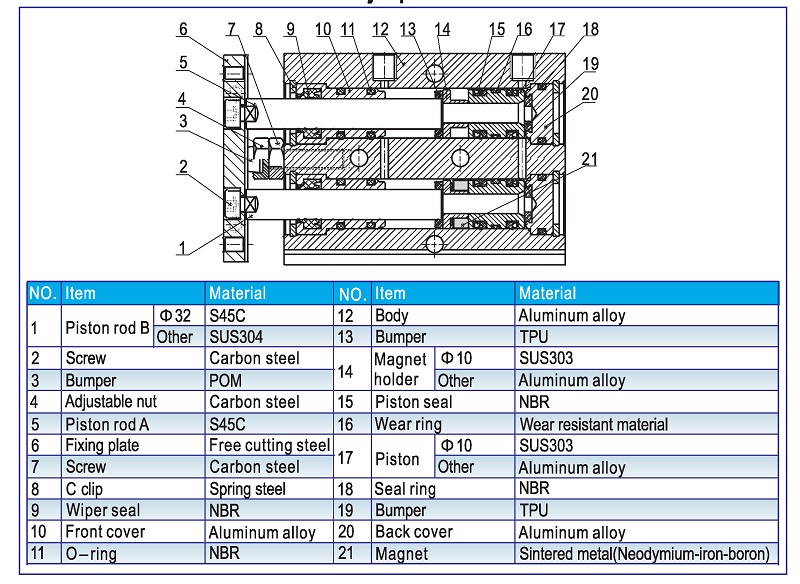

Guided Cylinder TN Double Rod Cylinder Structure
Guided Cylinder TN Double Rod Cylinder Stroke
TN Double Rod Cylinder Bore(mm) | Standard Stroke(mm) | Max.std stroke |
10 | 10 20 30 40 50 60 70 80 90 100 | 100 |
16 | 10 20 30 40 50 60 70 80 90 100 125 150 175 200 | 200 |
20 | 10 20 30 40 50 60 70 80 90 100 125 150 175 200 | 200 |
25 | 10 20 30 40 50 60 70 80 90 100 125 150 175 200 | 200 |
32 | 10 20 30 40 50 60 70 80 90 100 125 150 175 200 | 200 |
Neu-Master Pneumatic warrants these compact pneumatic cylinders to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.
1 Year Standard Warranty
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us.
How about the lead time of the Guided Cylinder TN Double Rod Cylinder , delivery time?
Normally we keep some stock , so the lead time will less than 15 work days .
Is the Pneumatic sample for free ?
Yes, but need afford the freight
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time :15 work days
