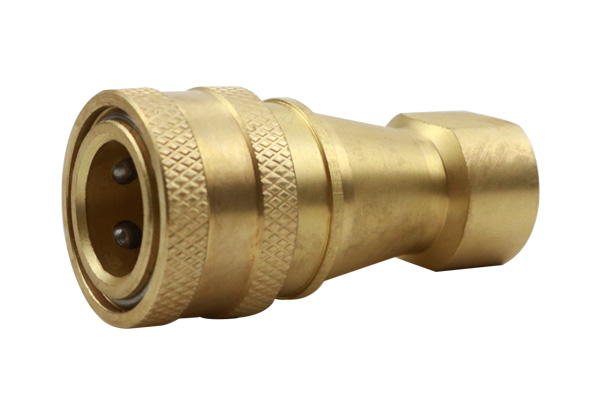

Series KZD Brass Type Hydraulic Quick Couplings
Home » Products » AIR LINE ACCESSORY » Quick Coupling » Series KZD Brass Type Hydraulic Quick Couplings

PRODUCT DETAIL

Series KZD Brass Type Hydraulic Quick Couplings  Series KZD Brass Type Hydraulic Quick Couplings
Series KZD Brass Type Hydraulic Quick Couplings  Series KZD Brass Type Hydraulic Quick Couplings
Series KZD Brass Type Hydraulic Quick Couplings  Series KZD Brass Type Hydraulic Quick Couplings
Series KZD Brass Type Hydraulic Quick Couplings  Series KZD Brass Type Hydraulic Quick Couplings

loading

Series KZD Brass Type Hydraulic Quick Couplings

Share to:
sharethis sharing button
Materials:
Coupling:Brass(yellow pickled)
Nipple:Brass(yellow pickled)
Features:
Meets the requirements of ISO7241-1-Series B.
Ball locking mechanism
Couplers have a double oring seal for redundancy in low
pressure and vacuum applications
Captive valve seal assures poppet sealing The valve seal is positively
captured by the metal popet to minimize seal washout or damage frow
high velocity fluid
The durable-ball-locking mechanism ensures a reliable connection every time
Couplers and nipple are precision machined from solid bar stock
Interchange:
Nitto SP ,Parker 60
Availability:

Series KZD Brass Type Hydraulic Quick Couplings Symbol:

Series HSP Japan Type Hydraulic Quick Couplings

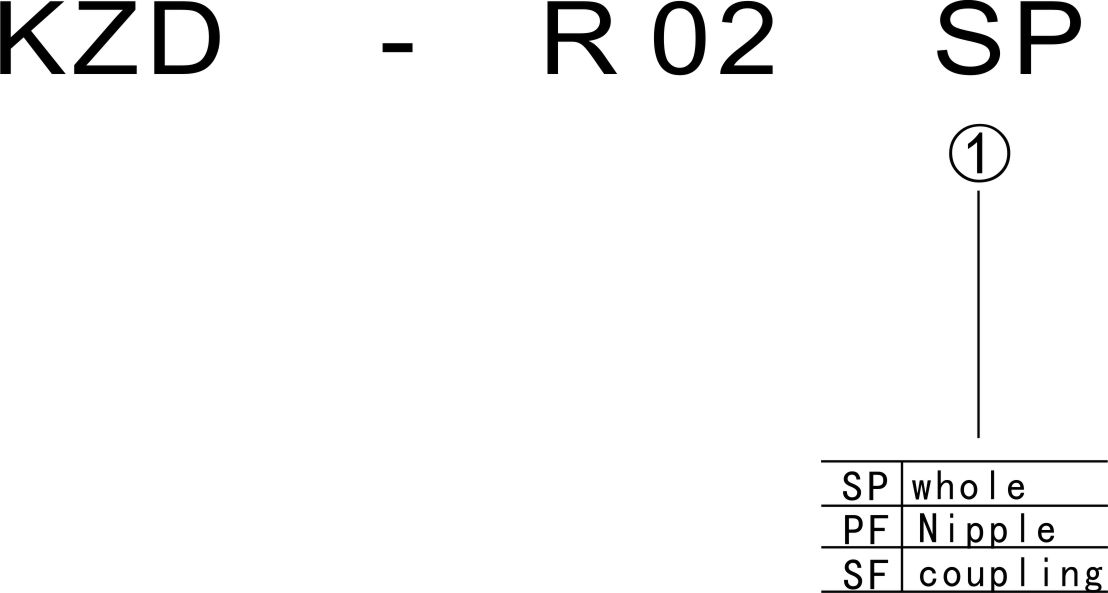

 Ordering Code:

KZD


SPECIFICATIONS

Body Size(lnch)

1/8

1/4

3/8

1/2

3/4

1

1-1/4

1-1/2

2

Rated Pressure (Mpa)

7

7

7

7

7

7

5.5

5.5

5.5

Rated Flow (L/Min)

3

12

25

45

105

185

295

378

750

Temperture Range(NBR)

-20℃~80℃

Standard Seal Material Is NITRILE

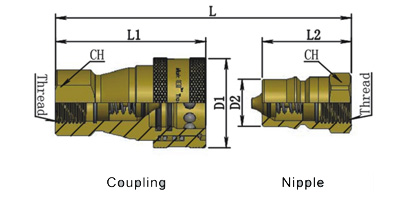

Series KZD Brass Type Hydraulic Quick Couplings


PART NO.

ISO

Thread

L

L1

L2

D1

D2

Ch1

Ch2

KZD-R01SP

5

Rc1/8

58

48

29

24

10.9

14

14

KZD-R02SP

6.3

Rc1/4

72

58

36

28

14.2

19

17

KZD-R03SP

10

Rc3/8

80

65

40

35

19.1

21

21

KZD-R04SP

12.5

Rc1/2

88

72

44

45

23.5

29

29

KZD-R06SP

20

Rc3/4

104

88

52

55

31.4

35

35

KZD-R08SP

25

Rc1

127

105

62

65

37.8

41

41

KZD-R10SP

32.5

Rc1-1/4

140

115

70

77

-

54

54

KZD-R12SP

40

Rc1-1/2

150

124

75

88

-

63

63

KZD-R16SP

50

Rc2

160

132

80

108

-

77

77
