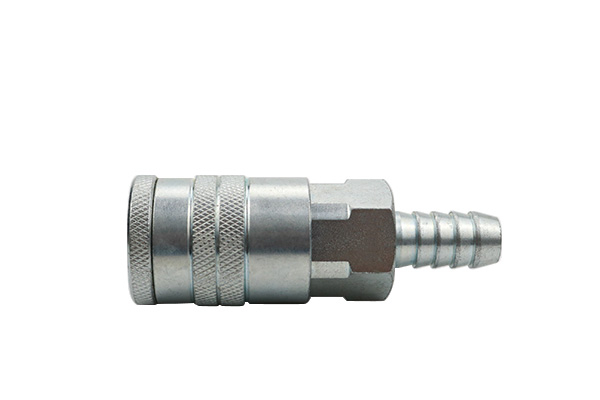

Series ISO B8 standard Type Pneumatic Quick Couplings

Flow Capacity：2350 L/Min
Nominal flow dia:8.5 mm
Material:
Socket:Nickel-plated brass/steel
Plug:Hardened zinc-plated steel
Temperature raNge(NBR)：-20℃ to +100℃
Max.working pressure：35Bar
Standard and Change:
ISO6150B-3/8.MIL-C-4109 3/8
Legris series30、40，Rectus 30ka、40ka
Parker 20-3/8,30-3/8,Hansen 4000
Cejn 430,DYNAQUIP D4
Feature：
One-hand operated
High-flow capacity
Low connection force
