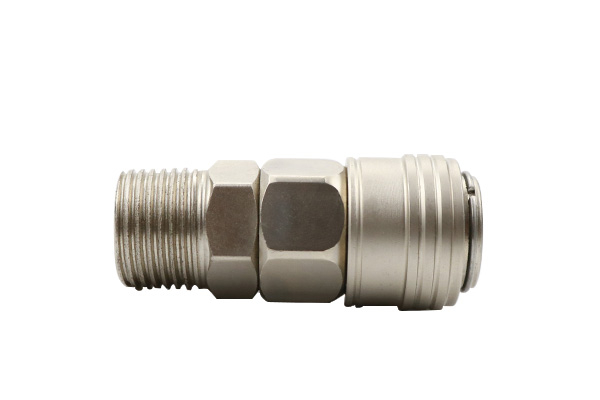

Series 200 ASIA standard Type Pneumatic Quick Couplings

Share to:
sharethis sharing button
Flow Capacity:1950 L/Min
Nominal flow dia：7.5 mm
Material:
chrome-plated steel
chrome-plated brass
stainless steel
Temperature range(NBR)：-20°C to +100°C
Max.working pressure：35Bar
Standard and Change：
ASIA
Rectus 03ka,13ka,Legris series LQAC
Nitto Kohki 200 series
Feature：
One-hand operated
Optional One-hand operated
Availability:
Inquire Add to Basket

Series 200 ASIA standard Type Pneumatic Quick Couplings Symbol:

Series 20 Super MIni Type Pneumatic Quick Couplings Symbol

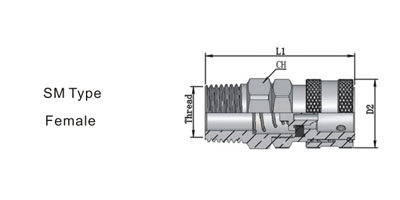

SM TYPE

Info

Thread

D2

L1

L2

CH

200-SM

R1/4

27

9

43

22

R3/8

27

9

43

22

R1/2

27

12

46

22

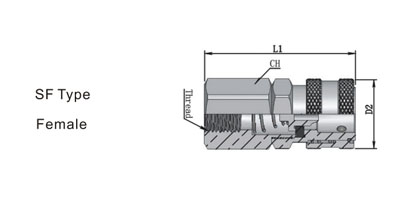

SF TYPE

Info

Thread

D2

L1

L2

CH

200-SF

G1/4

27

10

43

27

G3/8

27

10

43

27

G1/2

27

12

46

27

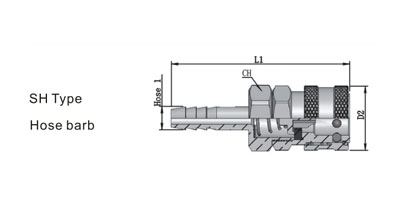

SH TYPE

Info

Hose

D2

L1

L2

CH

200-SH

6

27

25

60

27

8

27

25

60

27

10

27

25

60

27

13

27

25

60

27

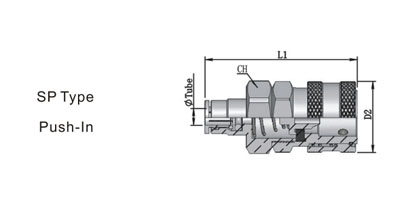

SP TYPE

Info

Tube

D2

200-SP

6

27

8

27

10

27

12

27

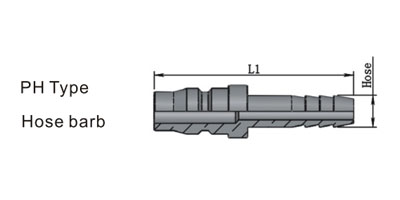

PH TYPE

Info

Hose

L1

200-PH

6

49

8

49

10

49

13

49

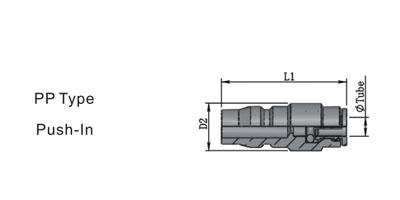

PP TYPE

Info

Hose

L1

200-PP



6

49

8

49

10

49

12

49

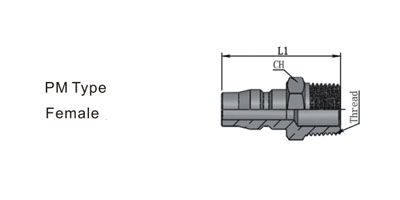

PM TYPE

Info

Thread

L1

CH

200-PM

R1/4

41

14

R3/8

41

17

R1/2

46

22

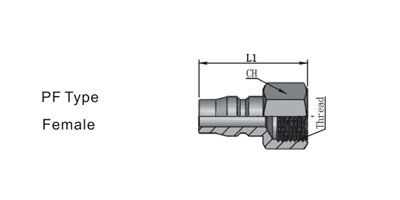

PF TYPE

Info

Thread

L1

CH

200-PF

G1/4

35

17

G3/8

35

19

G1/2

38

24
