Series 410 EURO10.5 standard Type Pneumatic Quick Couplings
Home » Products » AIR LINE ACCESSORY » Quick Coupling » Series 410 EURO10.5 standard Type Pneumatic Quick Couplings

PRODUCT DETAIL

Series 410 EURO10.5 standard Type Pneumatic Quick Couplings

Share to:
sharethis sharing button
Flow Capacity:3900 L/Min
Nominal flow dia:10.5mm
Material:
Socket:Nickel-plated brass/steel
Hardened zinc-plated steel
Plug:
Temperature range(NBR):-20°C to +100°C
Max.working pressure:35Bar
Standard and Change:
10.5 EURO10.5
Rectus 27ka,Legris series 27
Parker RF-3/8,PEF53,
Tema 1700,Cejn 410
Feature:
One-hand operated
High Flow Poppet design
Durable in use
Availability:

Series 410 EURO10.5  standard Type Pneumatic Quick Couplings Symbol:

Series 20 Super MIni Type Pneumatic Quick Couplings Symbol

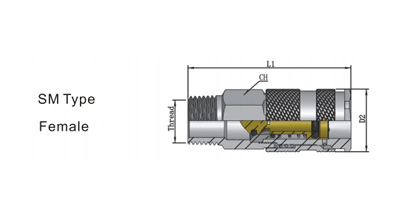

SM TYPE

Info

Thread

D2

L2

L1

CH

410-SM

R3/8

27

12

63

24

R1/2

27

17

65

24


R3/4

27

17

65

27

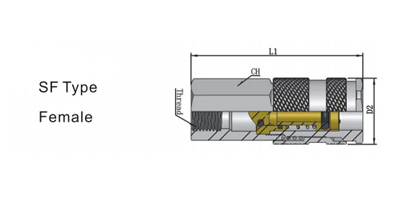

SF TYPE

Info

Thread

D2

L1

L2

CH

410-SF



G1/4

27

10

56

24

G3/8

27

11

56

24

G1/2

27

12

56

24


G3/4

27

16

60

32

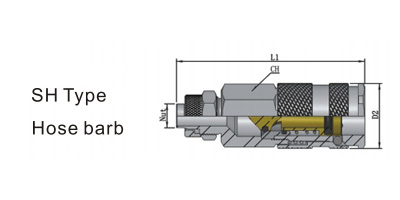

SH TYPE

Info

Nut

D2

L1

CH

410-SH

12*8

27

67

24


16*11

27

69

24

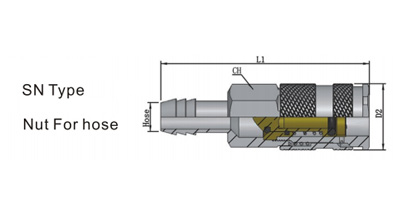

SN TYPE

Info

Hose

D2

L2

L1

CH

410-SN



10

27

27

76

24

13

27

27

76

24

16

27

27

76

24


19

27

27

76

24

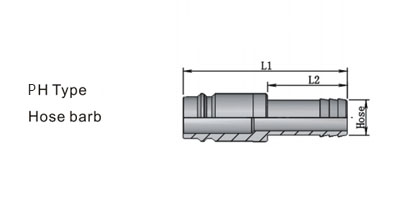

PH TYPE

Info

Hose

L1

L2

410-PH



8

48

25

10

48

25

13

48

25

16

49

25


19

49

25



PN TYPE

Info

Nut

L1

CH

410-PN

12*8

45

19


16*11

47

22



PM type

Info

Thread

L1

L2

CH

410-PM



R1/4

12

40

17

R3/8

12

40

17

R1/2

17

45

22


R3/4

17

48

27

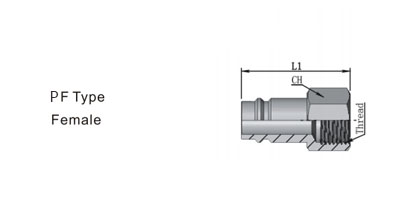

PF TYPE

Info

Thread

L1

L2

CH

410-PF



G1/4

9

33

17

G3/8

9

33

19


G1/2

12

37

24

G3/4

16

42

32
