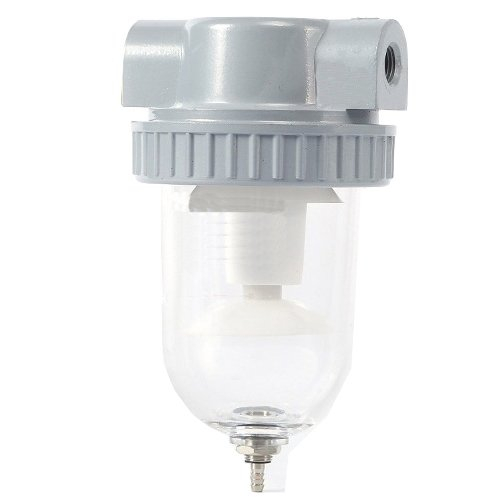

QSL Series Air Compressor Water Separator
QSL series big size air compressor water separator
Modular design ,huge air flow rate .
Port Size :1/8"-1/2 1" , NPT thread are vailable
Quick mounting pattern .
Reasonable price for the air compressor line using.

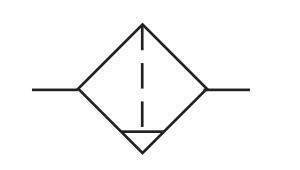

QTY Series Air Water Separator Regulator Lubricator.pdfProduct Symbol:

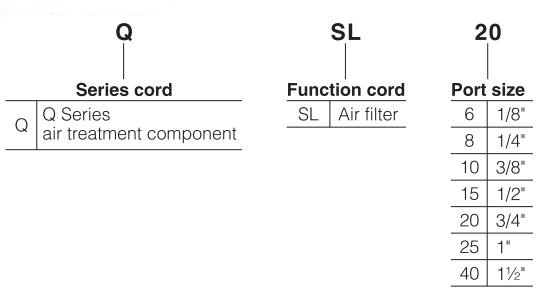

Ordering Code:
Specification:
| Model | QSL-6 | QSL-8 | QSL-10 | QSL-15 | QSL-20 | QSL-25 | QSL-40 |
| Working Temperature | 5～60℃ | ||||||
| Normal Primary Pressure | 1.0Mpa | ||||||
| Pneumatic Air Filtration | 50-70μm | ||||||
| Effective Drain Rate | ≥85% | ||||||
Pressure Drop/Air Flow Rate Value
Model Compressed Air Filtration | When the Pressure-Reduction equals 5% of the primary pressure, the air flow rate shall not less than the following value . | ||||
| Air flow rate(L/min) | |||||
| Primary Pressure(Mpa) | |||||
| 0.25 | 0.4 | 0.63 | 0.8 | 1.0 | |
| QSL-06 | 200 | 290 | 450 | 630 | 680 |
| QSL-08 | 450 | 720 | 1100 | 1460 | 700 |
| QSL-10 | 760 | 1170 | 1620 | 2000 | 2340 |
| QSL-15 | 1170 | 1460 | 2340 | 2700 | 3420 |
| QSL-20 | 1700 | 2800 | 4000 | 4600 | 5400 |
| QSL-25 | 2100 | 3420 | 5200 | 5800 | 6800 |
| QSL-40 | 2500 | 4020 | 6400 | 7000 | 8200 |
Where the QSL series Air Compressor Water Filter were used ?
Normally it were installed in the main air line,and follow the air compressor,the filter with water separator ,to cleans the compressed air of fluid oil, water,condensation and dirt particles. Or as the airline air source compressed air filter ,we could get the clean ,and dry compressed air.
The difference with other air filter.
Working as mainline Air Compressor Water Trap ,with huge flow rate and bigger port size. And bigger water cup .
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time , delivery time ?
Normally we keep some stock of Air Compressor Filter Dryer , so the lead time will less than 7 work days .
Is the Air Compressor Water Separator Filter sample for free ?
Yes , if one sample .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Air Compressor Water Filter, Air Compressor Water Separator, Air Compressor Water Trap, Air Compressor Water Separator Filter, Air Compressor Filter Dryer,Air Compressor Moisture Trap are all for cleaning the compressed air of fluid oil, condensation and dirt particles.
What does FRL mean:(FRL meaning ) F = Compressed Air filter with water separator, cleans the compressed air of fluid oil, condensation and dirt
particles.
R= Compressed Air Regulator or Compressed Air Reducer; Adjust the output pressure .
L=Compressed Air Lubricator o Compressed Air Oiler: Injecting the lubricant oil in to the working system.
FR.L : FR is a combination of the air filter regulator (F1) .L : Air line oiler, lubricator .
What's the lubricator ？ It's a oil injection equipment . When the FRL combo were installed on the machine , and the lubricant was necessary for the air line system , then we need a Lubricator , also called oiler . It's normal pneumatic equipment .
The difference of FR.L and FRL : As the air regulator and filter were combined in the FR.L system , so it is more space-saving . And lower cost .
