AF Series Compressed Air Filter

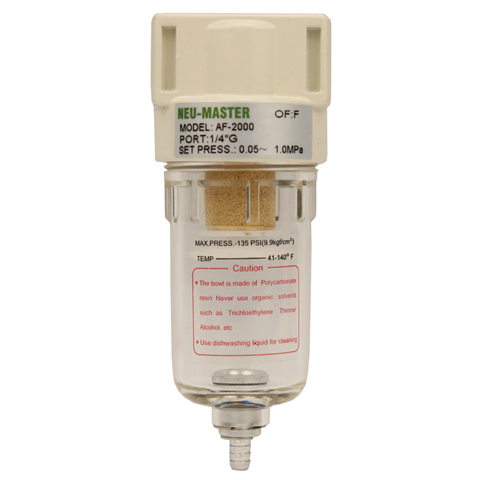

AF compressed air filter AF1000-AF5000,equivalent as SMC
Different Auto drain valve for Air Compressor Air Filter.
Different Air Compressor Water Trap precision for choosing .
Port size : M5*0.8;1/8";1/4";3/8";1/2";1"
PT,G,NPT Thread are available in air line
Short delivery time ,reasonable cost,durable feature.

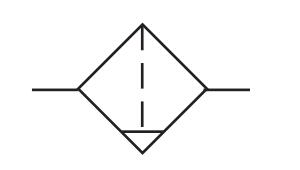

Prodcut Symbol:
Ordering Code:
Specification:
Model | Manual drain | AF1000-M5 | AF2000-02 | AF3000-02 | AF3000-03 | AF4000-03 | AF4000-04 | AF4000-06 | AF5000-06 | AF5000-10 | |
Automatic drain | AF1000-M5D | AF2000-02D | AF3000-02D | AF3000-03D | AF4000-03D | AF4000-04D | AF4000-06D | AF5000-06D | AF5000-10D | ||
Port size | M5×8 | 1/4 | 1/4 | 3/8 | 3/8 | 1/2 | 3/4 | 3/4 | 1 | ||
Cup capacity | 4 | 15 | 20 | 20 | 45 | 45 | 45 | 130 | 130 | ||
Rated flow(L\min) | 110 | 750 | 1500 | 1500 | 4000 | 4000 | 6000 | 7000 | 7000 | ||
Air Dryer Filter Proof pressure | 1.5MPa{15.3kgf/cm2} | ||||||||||
Max. pressure | 1.0MPa{10.2kgf/cm2} | ||||||||||
Temperature range | 5~60℃ | ||||||||||
Filtering grade | 5μm | ||||||||||
Cup material | Polycarbonate | ||||||||||
Cup protective cover | AF1000~2000(Without) AF3000~5000(With) | ||||||||||
Air Compressor Water Filter Assembly | Manual drain | C100F | C200F | C300F | C300F | C400F | C400F | C400F | C400F | C400F | |
Automatic drain | AD61 | AD62 | AD43 | AD43 | AD44 | AD44 | AD44 | AD44 | AD44 | ||
Weight(kg) | 0.07 | 0.19 | 0.29 | 0.29 | 0.55 | 0.55 | 0.58 | 1.08 | 1.08 | ||
Note: 1. there are 2, 10, 20, 40, 70, 100μm to choose from.
2. Standard automatic drainage for normally open(N.O.), AF3000~5000 also has normally closed(N.C.)to choose from, and the lowest use pressure: normally open -0.1MPa(1kgf/cm2), normally closed -0.15MPa(1.5kgf/cm2).
3. Supply pressure is 0.7MPa(7.1kgf/cm2)case.
Where the AF series SMC Air Compressor Air Filter were used ? (Appliliance)
Normally it were installed togetherly with the machine, the filter with water separator ,to cleans the compressed air of fluid oil, condensation and dirt particles. .
Or as the airline air source compressed air filter ,we could get the clean ,and dry compressed air .
The difference with other air filter.
The max working pressure could reach 1.0Mpa , Working as Air Compressor Air Dryer ,Short delivery time ,reasonable cost,durable feature .
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Air Water Separator sample for free ?
Yes , if one sample .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Compressed Air Filter, Air Compressor Air Filter, Air Compressor Air Dryer, Air Compressor Water Trap, Air Water Separator are all for cleaning the compressed air of fluid oil, condensation and dirt particles.
What does FRL mean:(FRL meaning ) F = Compressed Air filter with water separator, cleans the compressed air of fluid oil, condensation and dirt
particles.
R= Compressed Air Regulator or Compressed Air Reducer; Adjust the output pressure .
L=Compressed Air Lubricator o Compressed Air Oiler: Injecting the lubricant oil in to the working system.
FR.L : FR is a combination of the air filter regulator (F1) .L : Air line oiler, lubricator .
What's the lubricator ？ It's a oil injection equipment . When the FRL combo were installed on the machine , and the lubricant was necessary for the air line system , then we need a Lubricator , also called oiler . It's normal pneumatic equipment .
The difference of FR.L and FRL : As the air regulator and filter were combined in the FR.L system , so it is more space-saving . And lower cost .
