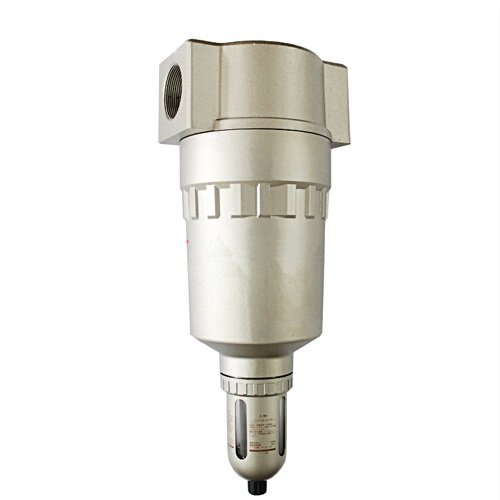

AF Main Line Compressed Air Filter
AF Series Main Line Air Compressor Filter Dryer ,equivalent as SMC
Different precision filter center for choosing
Auto drain valve for choosing.
Port size : 1/2"-1/21" ;PT,G,NPT Thread are available .
Huge Flow Rate ,reasonable cost,durable feature .
Main Line Compressed Air Filter Preparation.pdf

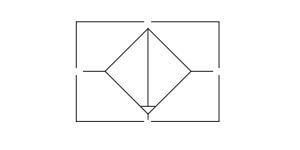

Product Symbol:
Product Feature:
Series AFF Compressed Air Cleaneris mounted to main piping to remove impurities like oil,
water and foreign matter in compressed air.
2. No screw threads or tie rods are required; therefore, removal and replacement of the element is made quick and
easy.
3. Series AFF Air Compressor Water Filter improves the function of downward dryers, extends the life of precision
filters and prevents trouble with equipment.
Ordering Code:
Specification :
| Model Air Compressor Moisture Trap | AF800-15 | AF900-20 |
| Thread Pipe | G1½" | G2" |
| Rating Flow (L/Min) | 12000 | 20000 |
| Max Work Pressure | 1.0 Mpa | |
| Operating Temperature | -5~60℃ | |
| Filter Precision | 5μm 2-50μm | 0.3μm(Removal 95%) |
| Protective Cover | YES | |
Where the AFF series SMC Air Compressor Air Filter were used ? (Appliliance)
Normally it were installed in the main air line , the filter with water separator ,to cleans the compressed air of fluid oil, condensation and dirt particles. Or as the airline air source compressed air filter ,we could get the clean ,and dry compressed air.
The difference with other air filter.
Working as mainline Air Compressor Water Trap ,with huge flow rate and bigger port size. And bigger water cup . Could be with the auto-drain valve.
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the Air Water Separator sample for free ?
Yes , if one sample .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Compressed Air Filter, Air Compressor Water Trap, Air Compressor Filter Dryer, Air Compressor Water Filter, Compressed Air Cleaner are all for cleaning the compressed air of fluid oil, condensation and dirt particles.
What does FRL mean:(FRL meaning ) F = Compressed Air filter with water separator, cleans the compressed air of fluid oil, condensation and dirt
particles.
R= Compressed Air Regulator or Compressed Air Reducer; Adjust the output pressure .
L=Compressed Air Lubricator o Compressed Air Oiler: Injecting the lubricant oil in to the working system.
FR.L : FR is a combination of the air filter regulator (F1) .L : Air line oiler, lubricator .
What's the lubricator ？ It's a oil injection equipment . When the FRL combo were installed on the machine , and the lubricant was necessary for the air line system , then we need a Lubricator , also called oiler . It's normal pneumatic equipment .
The difference of FR.L and FRL : As the air regulator and filter were combined in the FR.L system , so it is more space-saving . And lower cost .
