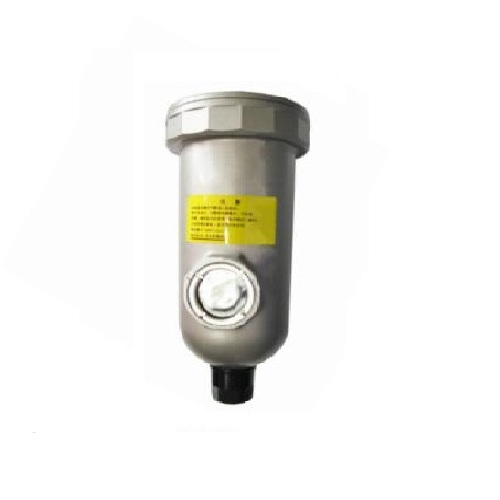

AH402 High Pressure End Auto Drain
Range Of Application
1. This product is a drainage device belongs to high pressure air system. Release the water for the whole pipeline .
2. Commonly used in the inconvenience of manual for water drain, or drainage of high frequency equipment,such as the lower part of pipe,refrigerated air dryer,water tank and so on.
3. Port Size :1/4",3/8",1/2" ; NPT thread are vailable
4. Easy to maintain and operate ,long service life .
Product Feature
Automatic drain
Metal cup is equipped with a visual window.
Points For Attention
When using, the drainer should be intalled vertically and the drain port facing down
High Pressure Automatic Drain Dimensions:
Automatic Drain Valve Specification:
Model:AH402 End Auto Drain | AH402-02 | AH402-03 | AH402-04 |
Ensured Pressure Resistance | 2.5Mpa | ||
Operating Pressure | 0.15-2.0Mpa | ||
Ambient and fluid temperature | 5-60°C | ||
Port size | G1/4" | G3/8" | G1/2" |
Drain size | G1/8" | G1/4" | G3/8" |
Drain status | Normal Open Type | ||
Working medium | Compressed Air |
Where the Pneumatic Auto Drain AH402 were used ?
This product is a drainage device belongs to high pressure air system. Release the water for the whole pipeline .
2Commonly used in the inconvenience of manual for water drain, or drainage of high frequency equipment,such as the lower part of pipe,refrigerated air dryer,water tank and so on.
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time , delivery time ?
Normally we keep some stock of Air Compressor Filter Dryer , so the lead time will less than 7 work days .
Is the Auto Drain Valve sample for free ?
Yes , if one sample .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: High Pressure Auto Drain, Automatic Drain, Automatic Drain Valve, Pneumatic Auto Drain, Auto Drain Valve Water are all for remove the water at the lower places of pipeline , frozen type air drying machine , oil separator , air drying tanks and the bottom of various air filters
What does FRL mean:(FRL meaning ) F = Compressed Air filter with water separator, cleans the compressed air of fluid oil, condensation and dirt
particles.
R= Compressed Air Regulator or Compressed Air Reducer; Adjust the output pressure .
L=Compressed Air Lubricator o Compressed Air Oiler: Injecting the lubricant oil in to the working system.
FR.L : FR is a combination of the air filter regulator (F1) .L : Air line oiler, lubricator .
What's the lubricator ? It's a oil injection equipment . When the FRL combo were installed on the machine , and the lubricant was necessary for the air line system , then we need a Lubricator , also called oiler . It's normal pneumatic equipment .
The difference of FR.L and FRL : As the air regulator and filter were combined in the FR.L system , so it is more space-saving . And lower cost .
AH402 High Pressure End Auto Drain
Range Of Application
1. This product is a drainage device belongs to high pressure air system. Release the water for the whole pipeline .
2. Commonly used in the inconvenience of manual for water drain, or drainage of high frequency equipment,such as the lower part of pipe,refrigerated air dryer,water tank and so on.
3. Port Size :1/4",3/8",1/2" ; NPT thread are vailable
4. Easy to maintain and operate ,long service life .
Product Feature
Automatic drain
Metal cup is equipped with a visual window.
Points For Attention
When using, the drainer should be intalled vertically and the drain port facing down
High Pressure Automatic Drain Dimensions:
Automatic Drain Valve Specification:
Model:AH402 End Auto Drain | AH402-02 | AH402-03 | AH402-04 |
Ensured Pressure Resistance | 2.5Mpa | ||
Operating Pressure | 0.15-2.0Mpa | ||
Ambient and fluid temperature | 5-60°C | ||
Port size | G1/4" | G3/8" | G1/2" |
Drain size | G1/8" | G1/4" | G3/8" |
Drain status | Normal Open Type | ||
Working medium | Compressed Air |
Where the Pneumatic Auto Drain AH402 were used ?
This product is a drainage device belongs to high pressure air system. Release the water for the whole pipeline .
2Commonly used in the inconvenience of manual for water drain, or drainage of high frequency equipment,such as the lower part of pipe,refrigerated air dryer,water tank and so on.
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time , delivery time ?
Normally we keep some stock of Air Compressor Filter Dryer , so the lead time will less than 7 work days .
Is the Auto Drain Valve sample for free ?
Yes , if one sample .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: High Pressure Auto Drain, Automatic Drain, Automatic Drain Valve, Pneumatic Auto Drain, Auto Drain Valve Water are all for remove the water at the lower places of pipeline , frozen type air drying machine , oil separator , air drying tanks and the bottom of various air filters
What does FRL mean:(FRL meaning ) F = Compressed Air filter with water separator, cleans the compressed air of fluid oil, condensation and dirt
particles.
R= Compressed Air Regulator or Compressed Air Reducer; Adjust the output pressure .
L=Compressed Air Lubricator o Compressed Air Oiler: Injecting the lubricant oil in to the working system.
FR.L : FR is a combination of the air filter regulator (F1) .L : Air line oiler, lubricator .
What's the lubricator ? It's a oil injection equipment . When the FRL combo were installed on the machine , and the lubricant was necessary for the air line system , then we need a Lubricator , also called oiler . It's normal pneumatic equipment .
The difference of FR.L and FRL : As the air regulator and filter were combined in the FR.L system , so it is more space-saving . And lower cost .
