AF/BF Series Compressed Air Filter
Air Compressor Moisture Separator AF/BF equivalent as AIRTAC
Different Auto drain valve for Air Compressor Water Separator.
The Low Pressure Loss ,
Port size :1/8";1/4";3/8";1/2"
PT,G,NPT Thread are available .
Short delivery time ,reasonable cost,durable feature .
AF,BF Series Compressed Air Filter.pdf

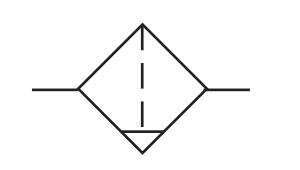

Product Symbol:
Product Feature:
AF series
1. The structure is delicate and compact.Are suitable for working as In Line Air Dryer.
2. The pressed loss is low and the efficiency of water separting is high.
3. The filter precision includes 5μm and 40μm(optional).

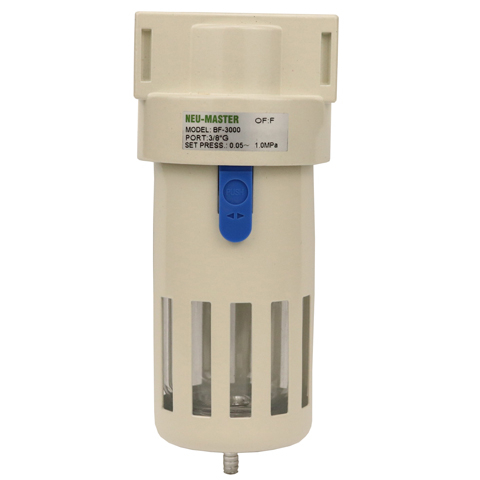

BF series
1. The pressure loss is low and the efficiency of water separating is high.
2. The bowl has high-strength plastic shields outside, which is more safe and reliable to use.
3. The Pneumatic Filter precision includes 5μm and 40μm(optional).

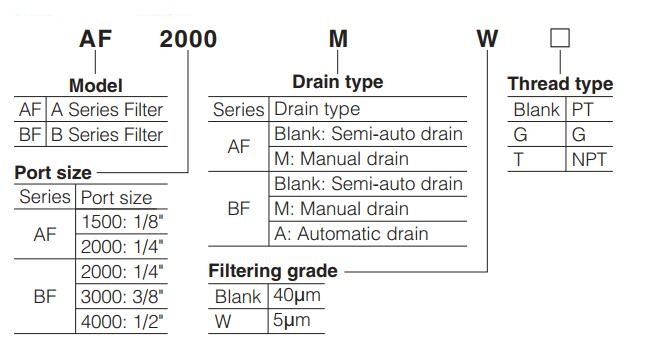

Ordering Code:
Specification:
Model | AF1500 | AF2000 | BF2000 | BF3000 | BF4000 |
Fluid | Air | ||||
Port size | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT1/2 |
Filtering grade | 40μm or 5μm | ||||
Pressure range | Semi-auto and automatic drain:0.15~0.9MPa(20~145psi); Manual drain: 0.05~0.9MPa(7~145psi) | ||||
Proof pressure | 1.5MPa(215psi) | ||||
Temperature range | -5~70℃ | ||||
Capacity of drain bowl | 15CC | 60CC | |||
Weight | 140g | 330g | |||
① PT thread ,G thread , and NPT thread are available.
Where the AF/BF series AIRTAC inline moisture filter for air compressor were used ? (Appliliance)
Normally it were installed togetherly with the machine, the filter with water separator ,to cleans the compressed air of fluid oil, condensation and dirt particles. .
Or as the airline air source compressed air filter ,we could get the clean ,and dry compressed air .
The difference with other air filter.
The max working pressure could reach 1.0Mpa , Working as Water Separator for air compressor ,with lower cost.
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the sample for free ?
Yes , if one sample .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: AF Compressed Air Filter, Air Compressor Moisture Separator, Air Compressor Water Separator, In Line Air Dryer, Pneumatic Filter are all for cleaning the compressed air of fluid oil, condensation and dirt particles.
What does FRL mean:(FRL meaning ) F = Compressed Air filter with water separator, cleans the compressed air of fluid oil, condensation and dirt
particles.
R= Compressed Air Regulator or Compressed Air Reducer; Adjust the output pressure .
L=Compressed Air Lubricator o Compressed Air Oiler: Injecting the lubricant oil in to the working system.
FR.L : FR is a combination of the air filter regulator (F1) .L : Air line oiler, lubricator .
What's the lubricator ？ It's a oil injection equipment . When the FRL combo were installed on the machine , and the lubricant was necessary for the air line system , then we need a Lubricator , also called oiler . It's normal pneumatic equipment .
The difference of FR.L and FRL : As the air regulator and filter were combined in the FR.L system , so it is more space-saving . And lower cost .
