AD402-S End Auto Drain
Prodcut Features
1. This product often applies to auto remove the water at the lower places of pipeline , frozen type
air drying machine , oil separator , air drying tanks and the bottom of various air filters ,can be installed
in the places inconvenient for manual discharge. Such as higher , lower and narrow places ,
especially there is large consumption of air of frequent water drains .
2. It can prevent the compressed air being repolluted by condense water resulting from neglect of manual drain.
3. Port Size :1/4",3/8",1/2" , NPT thread are vailable
4. Easy to maintain and operate ,long service life .
Product Feature
Automatic drain
Metal cup is equipped with a visual window.
Points For Attention
When using, the drainer should be intalled vertically and the drain port facing down

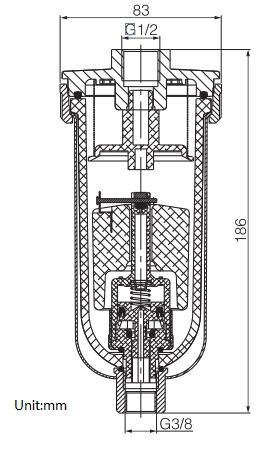

Automatic Drain Dimensions:
Automatic Drain Valve Specification:
| Model:AD402-S End Auto Drain | AD402-S-02 | AD402-S-03 | AD402-S-04 |
| Ensured Pressure Resistance | 1.5Mpa | ||
| Operating Pressure | 0.2-0.8Mpa | ||
| Ambient and fluid temperature | 5-60°C | ||
| Port size | G1/4" | G3/8" | G1/2" |
| Drain size | G3/8" | ||
| Drain status | Normal Open Type | ||
| Working medium | Compressed Air | ||
Where the Pneumatic Auto Drain were used ?
This product often applies to auto remove the water at the lower places of pipeline , frozen type
air drying machine , oil separator , air drying tanks and the bottom of various air filters ,can be installed
in the places inconvenient for manual discharge. Such as higher , lower and narrow places ,
especially there is large consumption of air of frequent water drains .
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time , delivery time ?
Normally we keep some stock of Air Compressor Filter Dryer , so the lead time will less than 7 work days .
Is the Auto Drain Valve sample for free ?
Yes , if one sample .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Auto Drain, Automatic Drain, Automatic Drain Valve, Pneumatic Auto Drain, Auto Drain Valve Water,Automatic Drain Trap are all for remove the water at the lower places of pipeline , frozen type air drying machine , oil separator , air drying tanks and the bottom of various air filters
What does FRL mean:(FRL meaning ) F = Compressed Air filter with water separator, cleans the compressed air of fluid oil, condensation and dirt
particles.
R= Compressed Air Regulator or Compressed Air Reducer; Adjust the output pressure .
L=Compressed Air Lubricator o Compressed Air Oiler: Injecting the lubricant oil in to the working system.
FR.L : FR is a combination of the air filter regulator (F1) .L : Air line oiler, lubricator .
What's the lubricator ？ It's a oil injection equipment . When the FRL combo were installed on the machine , and the lubricant was necessary for the air line system , then we need a Lubricator , also called oiler . It's normal pneumatic equipment .
The difference of FR.L and FRL : As the air regulator and filter were combined in the FR.L system , so it is more space-saving . And lower cost .
