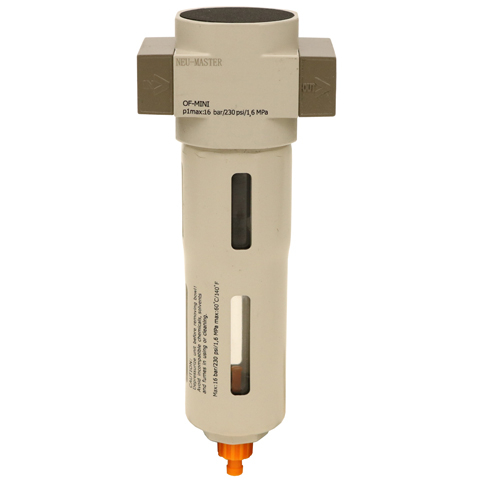

F Series Compressed Air Filter
F series air filter: FESTO Standard .
Size :MINI/MIDI/MAXI
The F with water separator cleans the compressed air of fluid oiI, condensation and dirt particles, for special application, the standard 40μm filter element may easily be replaced by a 5μm filter element.
Port Size :1/8"-1" , NPT thread are vailable
Reliable adjustment of oil supply,quick mounting pattern .
Easy to maintain and operate ,long service life .

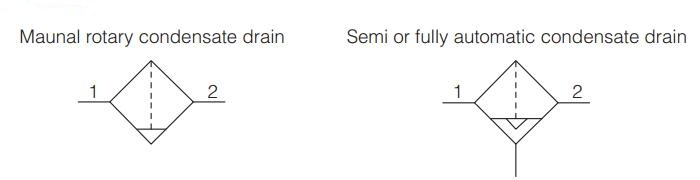

Product Symbol:
Installation and use
The OF with water separator cleans the compressed air of fluid oil, condensation and dirt particles, for special application, the standar d 40μm filter element may easily be replaced by a 5μm filter element.

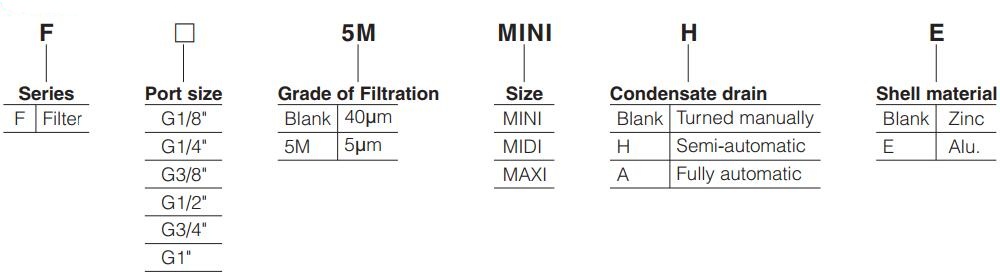

Ordering Code:
Specification
Size | Micro | Mini | Midi | Maxi | ||||||||||||
Pneumatic connection | M5 | M7 | G1/8 | QS4 | QS6 | G1/8 | G1/4 | G3/8 | G1/4 | G3/8 | G1/2 | G3/4 | G1/2 | G3/4 | G1 | |
Operating medium | Compressed air | |||||||||||||||
Design | Sintered filter with centrifuagal separation | |||||||||||||||
Type of mounting | Via accessories | |||||||||||||||
In-line installation | ||||||||||||||||
Assembly position | Vertical ±5° | |||||||||||||||
Grade of filtration (μm) | 5 | 5(or)40 | ||||||||||||||
Max. condensate volume (cm3) | 3 | 22 | 43 | 80 | ||||||||||||
Input pressure (bar) | ||||||||||||||||
Condensate drain | Turnde manually | 1…10 | 2…16 | |||||||||||||
Semi-automatic | 1…10 | - | ||||||||||||||
Fully automatic | - | 2…12 | ||||||||||||||
Where the F series festo standard air Filter were used ? (Appliliance)
Normally it were installed togetherly with the machine, the filter with water separator ,to cleans the compressed air of fluid oil, condensation and dirt particles. .
Or as the airline air source compressed air filter ,we could get the clean ,and dry compressed air .
The difference with other air filter.
The max working pressure could reach 1.2Mpa , higher than other's 1.0Mpa.
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us .
How about the lead time , delivery time ?
Normally we keep some stock , so the lead time will less than 7 work days .
Is the sample for free ?
Yes , if one sample .
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time : 7 work days
Note: Compressed Air Filter, Compressed Air Filtration, Pneumatic Air Filter, Inline Air Filter For Air Compressor, FESTO Air Filter are all for cleaning the compressed air of fluid oil, condensation and dirt particles.
What does FRL mean:(FRL meaning ) F = Compressed Air filter with water separator, cleans the compressed air of fluid oil, condensation and dirt
particles.
R= Compressed Air Regulator or Compressed Air Reducer; Adjust the output pressure .
L=Compressed Air Lubricator o Compressed Air Oiler: Injecting the lubricant oil in to the working system.
FR.L : FR is a combination of the air filter regulator (F1) .L : Air line oiler, lubricator .
What's the lubricator ？ It's a oil injection equipment . When the FRL combo were installed on the machine , and the lubricant was necessary for the air line system , then we need a Lubricator , also called oiler . It's normal pneumatic equipment .
The difference of FR.L and FRL : As the air regulator and filter were combined in the FR.L system , so it is more space-saving . And lower cost .
