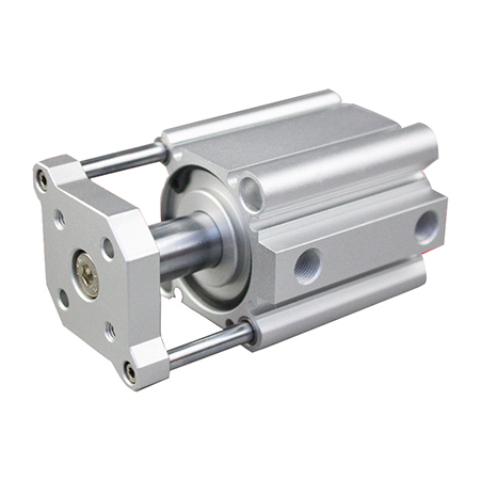

TACQ Pneumatic Compact Guided Cylinder Bore Size 12 mm To 100mm Equal To SMC CQ2 Series Guided Cylinder
Shop for the TACQ series guided cylinders by NEU-MASTER
Product Feature
●JIS standard is implemented and includes guider.
●C clip is adopted to connect the cylinder body and back cover or front cover to make it compact and reliable.
●The internal diameter of the body is treated with rolling followed by the treatment of hard anodizing, forming an excellent abrasion resistance and durability.
●The seal and piston adopts heterogeneous two-way seal structure. It has compact dimension and the function of grease reservation.
●Compact structure can effectively save installation space.
●There are magnetic switch slots around the cylinder body, which is convenient to installing inducting switch.
●Double rod non-rotating structure serves to bear large working load and lateral load.

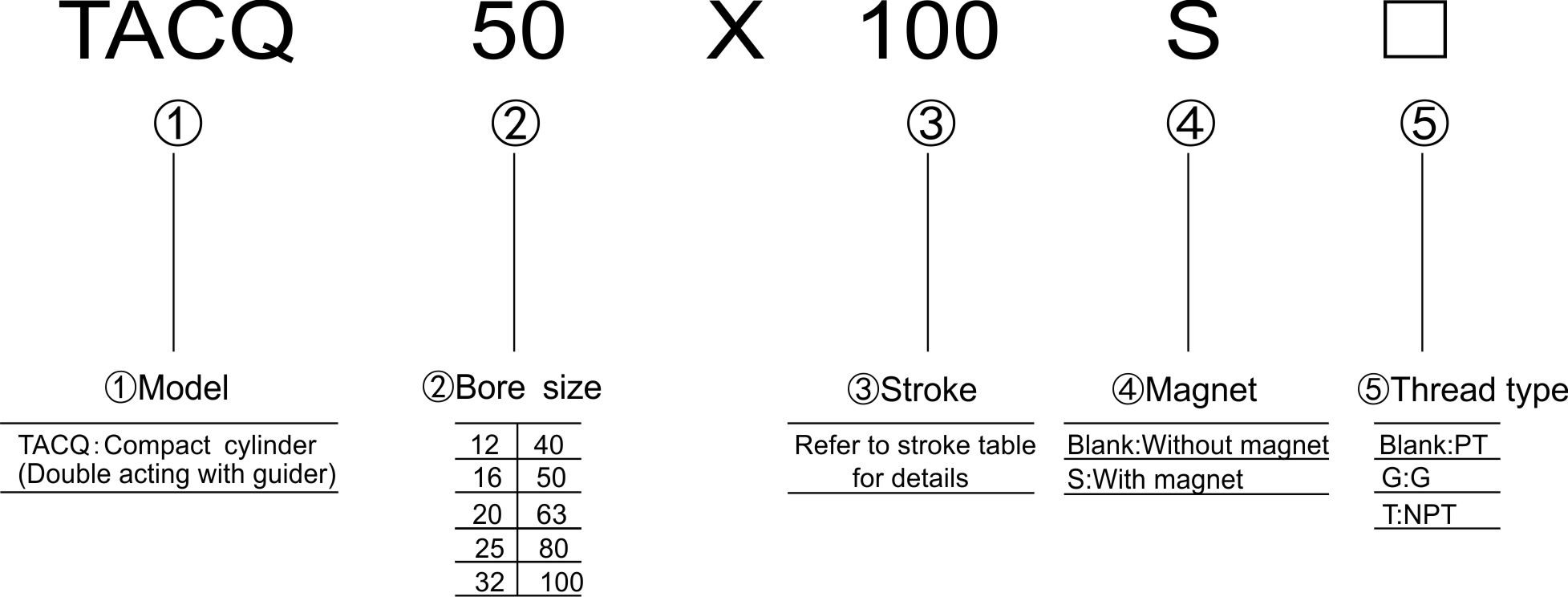

TACQ Guided Cylinder Ordering Code
TACQ Guided Cylinder Specification
| Compact Cylinder Bore Size(mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | |
| Acting type | Double Acting | ||||||||||
| Fluid | Air (To be filtered by 40μm filter element) | ||||||||||
| Proof Pressure | 1.50Mpa(215Psi) | ||||||||||
| Temperature℃ | -20∽80 | ||||||||||
| Speed Range mm/s | 30∽500mm/s | ||||||||||
| Stroke Tolerance | +1.0; | ||||||||||
| Cushion Type | Bumper | ||||||||||
| Port Size① | M5*0.8 | 1/8" | 1/4" | 3/8" | |||||||
① PT thread , G thread ,NPT thread are available for 1/8",1/4"pipe size.
TACQ Guided Cylinder Stroke
Bore Size (mm) | Standard Stroke (mm) | Max.std Stroke (mm) | Middle Stroke Range | ||||||||||||||
| 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 75 | 100 | ||||||
| 12 16 | ● | ● | ● | ● | ● | ● | × | × | × | × | × | × | 30 | 1∽29 | |||
| 20 25 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | × | × | 50 | 1∽49 | |||
| 32 40 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | 100 | 1∽99 | |||
| 50 63 80 100 | × | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | 100 | 5∽99 | |||
1 Year Standard Warranty
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us.
How about the lead time of the TACQ Pneumatic Guided Cylinder , delivery time?
Normally we keep some stock , so the lead time will less than 15 work days .
Is the Pneumatic sample for free ?
Yes, but need afford the freight
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time :15 work days
