ACQ Compact Air Cylinder Bore Size 12 mm To 100mm Equal To SMC CQ2 Series Compact Air Cylinder
Shop for the ACQ series compact air cylinders by NEU-MASTER
Product Feature
●JIS standard is implemented.
●C clip is adopted to connect the cylinder body and back cover or front cover, and riveted structure is adopted to connect piston and piston rod to make it compact and reliable.
●The internal diameter of the body is treated with rolling followed by the treatment of hard anodizing, forming an excellent abrasion resistance and durability.
●The seal of piston adopts heterogeneous two-way seal structure. It has compact dimension and the function of grease reservation.
●Compact structure can effectively save installation space.
●There are magnetic switch slots around the cylinder body, which is convenient to install inducting switch.
●Installing accessories with various specifications are optional.

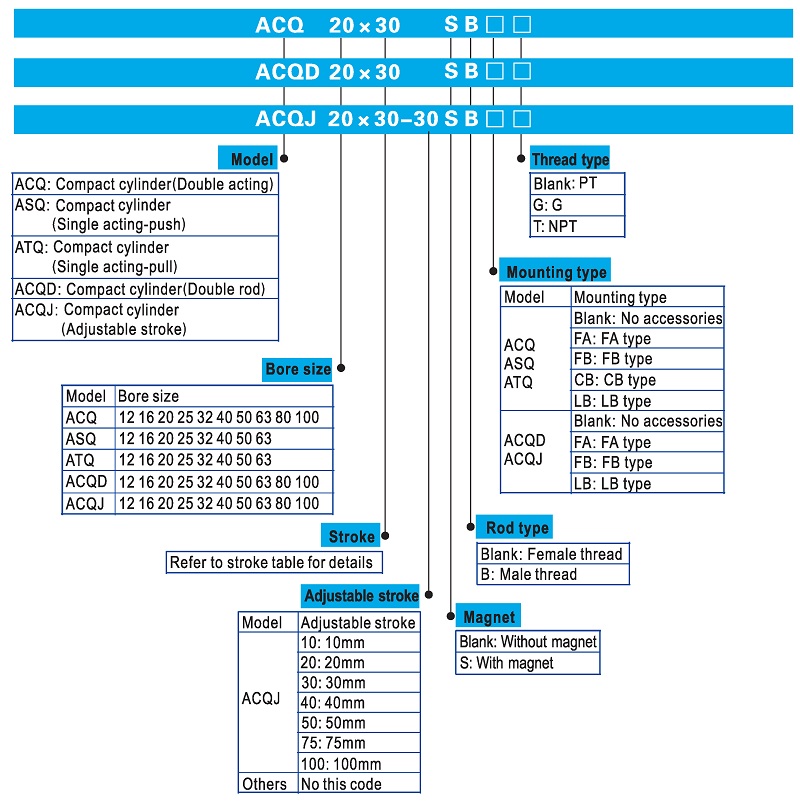

ACQ Compact Air Cylinder Ordering Code
ACQ Compact Air Cylinder Specification
| Compact Cylinder Bore Size(mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | |
| Acting type | Double Acting ;Single Acting-Pull ; Single Acting-Push | ||||||||||
| Fluid | Air (To be filtered by 40μm filter element) | ||||||||||
Operating Pressure | Double Acting | 0.1∽1.0Mpa(15∽145Psi)(1.0∽10Bar) | |||||||||
| Single Acting | 0.2∽1.0Mpa(28∽145Psi)(2.0∽10Bar) | ||||||||||
| Proof Pressure | 1.35Mpa(200Psi)(13.5Bar) | ||||||||||
| Temperature℃ | -20∽80 | ||||||||||
| Speed Range mm/s | Double acting cylinder: 30∽500mm/s ; Single Acting Cylinder 50∽500mm/s | ||||||||||
| Stroke Tolerance | Stroke≤100:+1.0; Stroke≥100+1.5; | ||||||||||
| Cushion Type | Bumper | ||||||||||
| Port Size① | M5*0.8 | 1/8" | 1/4" | 3/8" | |||||||
① PT thread , G thread ,NPT thread are available for 1/8",1/4"pipe size.
ACQ Compact Cylinder Stroke
| Bore Size(mm) | Standard Stroke(mm) | Max.Standard Stroke(mm) | Max.Standard Stroke(mm) | ||
| Without Magnet | With Magnet | ||||
| 12 | Double Acting | 5 10 15 20 25 30 35 40 45 50 | 50 | 80 | 70 |
| Single Acting | 5 10 15 20 | 20 | - | - | |
| 16 | Double Acting | 5 10 15 20 25 30 35 40 45 50 55 60 | 60 | 80 | 70 |
| Single Acting | 5 10 15 20 | 20 | - | - | |
20 25 | Double Acting | 5 10 15 20 25 30 35 40 45 50 55 60 70 75 80 90 100 | 100 | 140 | 130 |
| Single Acting | 5 10 15 20 25 30 | 30 | - | - | |
32 40 50 63 | Double Acting | 5 10 15 20 25 30 35 40 45 50 55 60 70 75 80 90 100 | 100 | 100 | 100 |
| Single Acting | 5 10 15 20 25 30 | 30 | - | - | |
80 100 | Double Acting | 5 10 15 20 25 30 35 40 45 50 55 60 70 75 80 90 100 | 100 | - | - |
1 Year Standard Warranty
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us.
How about the lead time of the ACQ Pneumatic Compact Air Cylinder , delivery time?
Normally we keep some stock , so the lead time will less than 15 work days .
Is the Pneumatic sample for free ?
Yes, but need afford the freight
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time :15 work days
