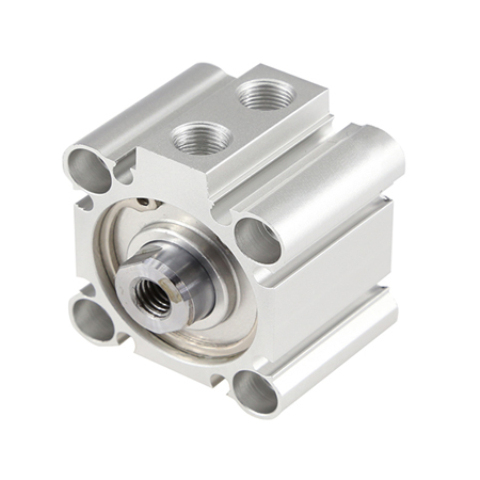

ACQ Big Bore Size Pneumatic Compact Air Cylinder Bore Size 125 mm To 160mm Equal To SMC CQ2 Series Compact Cylinder
Product Feature
●JIS standard is implemented.
●C clip is adopted to connect the cylinder body and back cover or front cover, and riveted structure is adopted to connect piston and piston rod to make it compact and reliable.
●The internal diameter of the body is treated with rolling followed by the treatment of hard anodizing, forming an excellent abrasion resistance and durability.
●The seal of piston adopts heterogeneous two-way seal structure. It has compact dimension and the function of grease reservation.
●Compact structure can effectively save installation space.
●There are magnetic switch slots around the cylinder body, which is convenient to install inducting switch.
●Installing accessories with various specifications are optional.
ACQ Big Bore Compact Air Cylinder Ordering Code
ACQ Big Bore Compact Air Cylinder Specification
| Compact Cylinder Bore Size(mm) | 125 | 140 | 160 | |
| Acting type | Double Acting | |||
| Fluid | Air (To be filtered by 40μm filter element) | |||
Operating Pressure | 0.05∽1.0Mpa(7∽145Psi)(0.5∽10Bar) | |||
| Proof Pressure | 1.5Mpa(215Psi)(15Bar) | |||
| Temperature℃ | -20∽80 | |||
| Speed Range mm/s | Double acting cylinder: 30∽500mm/s ; | |||
| Stroke Tolerance | Stroke≤100:+1.0; Stroke≥100+1.5; | |||
| Cushion Type | Bumper | |||
| Port Size① | 3/8" | |||
① PT thread , G thread ,NPT thread are available for 1/8",1/4"pipe size.
ACQ Big Bore Size Compact Cylinder Stroke
| Bore Size (mm) | Standard Stroke(mm) | Max.Std Stroke | Max Stroke |
| 125 | 10 20 30 40 50 75 100 125 150 175 200 250 300 | 300 | 300 |
| 140 | |||
| 160 |
1 Year Standard Warranty
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us.
How about the lead time of the ACQ Big Bore Pneumatic Compact Air Cylinder , delivery time?
Normally we keep some stock , so the lead time will less than 15 work days .
Is the Pneumatic sample for free ?
Yes, but need afford the freight
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time :15 work days
