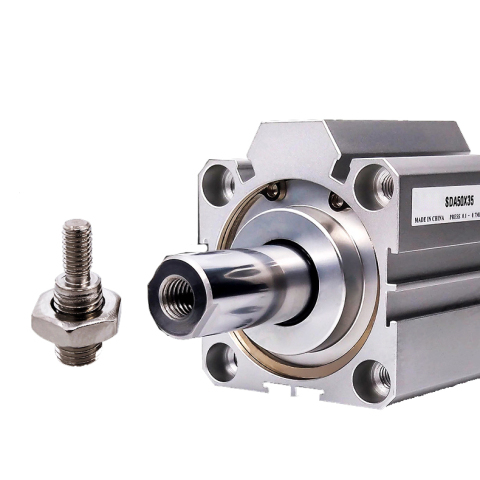

SDA Compact Cylinder Bore Size 12 Mm To 100mm Equal To AIRTAC SDA Series Compact Cylinder
Shop for the SDA series compact air cylinders by NEU-MASTER
Product Feature

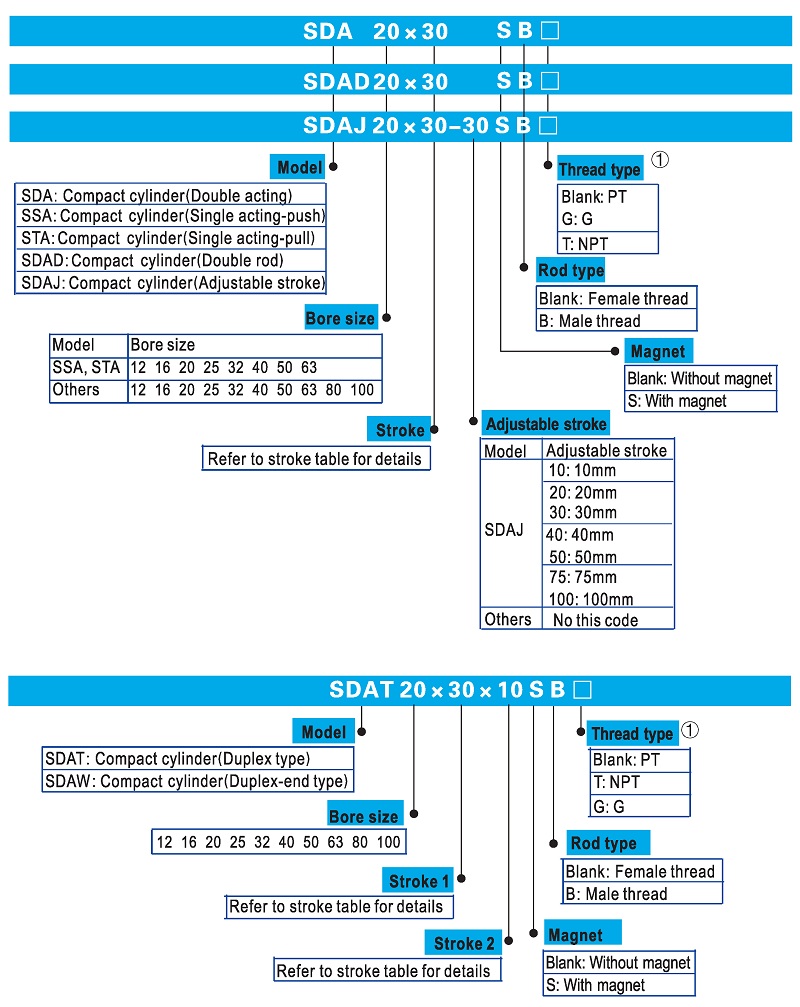

SDA Compact Cylinder Ordering Code
SDA Compact Cylinder Specification
| Compact Cylinder Bore Size(mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | |
| Acting type | Double Acting | ||||||||||
| Single Acting-Pull ; Single Acting-Push | ------------- | ||||||||||
| Fluid | Air (To be filtered by 40μm filter element) | ||||||||||
Operating Pressure | Double Acting | 0.1∽1.0Mpa(15∽145Psi)(1.0∽10Bar) | |||||||||
| Single Acting | 0.2∽1.0Mpa(28∽145Psi)(2.0∽10Bar) | ||||||||||
| Proof Pressure | 1.5Mpa(215Psi)(15Bar) | ||||||||||
| Temperature℃ | -20∽80 | ||||||||||
| Speed Range mm/s | Double acting cylinder: 30∽500mm/s ; Single Acting Cylinder 50∽500mm/s | ||||||||||
| Stroke Tolerance | Stroke≤100:+1.0; Stroke≥100+1.5; | ||||||||||
| Cushion Type | Bumper | ||||||||||
| Port Size① | M5*0.8 | 1/8" | 1/4" | 3/8" | |||||||
① PT thread , G thread ,NPT thread are available for 1/8",1/4"pipe size.
SDA Compact Cylinder Stroke
| Compact Cylinder Bore Size | Standard Stroke(mm) | Max.std stroke | Max. stroke | ||
12 16 | Double Acting | With Magnet | 5 10 15 20 25 30 35 40 45 50 | 50 | 70 |
| Without Magnet | 5 10 15 20 25 30 35 40 45 50 55 60 | 60 | 80 | ||
| Single Acting | 5 10 15 20 25 30 | 30 | - | ||
| 20 | Double Acting | With Magnet | 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 | 90 | 130 |
| Without Magnet | 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 100 | 100 | 140 | ||
| Single Acting | 5 10 15 20 25 30 35 40 45 50 | 30 | - | ||
25,32 40,50 63 | Double Acting | With Magnet | 5 10 15 20 25 30 | 120 | 150 |
| Without Magnet | 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 100 110 120 | 130 | 160 | ||
| Single Acting | 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 100 110 120 130 | 30 | - | ||
80 100 | Double Acting | With Magnet | 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 100 110 120 | 120 | 150 |
| Without Magnet | 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 100 110 120 130 | 130 | 160 | ||
Neu-Master Pneumatic warrants these compact cylinders to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.
1 Year Standard Warranty
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us.
How about the lead time of the SDA Compact Cylinder , delivery time?
Normally we keep some stock , so the lead time will less than 15 work days .
Is the Pneumatic sample for free ?
Yes, but need afford the freight
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time :15 work days
