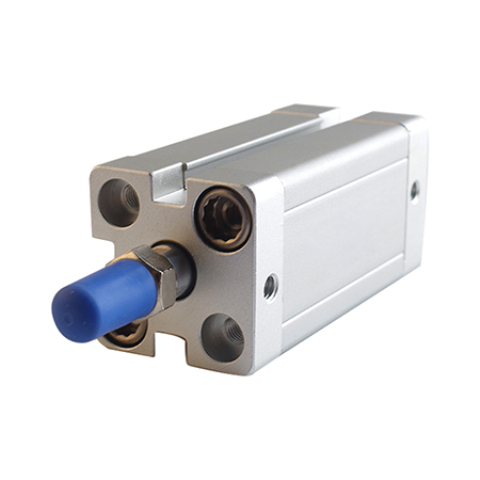

ACE Pneumatic Compact Cylinder Bore Size 12 Mm To 125mm Equal To FESTO ADN Series Compact Cylinder
Shop for the ACE series of ISO21287 compact air cylinders by NEU-MASTER
Product Feature
●In accordance with ISO21287 standard, the mounting size is vogue.
●The cylinder body connects with the threads of the front and back cover, forming high strength and convenient maintenance.
●The internal diameter of the body is treated with rolling followed by the treatment of hard anodizing, forming an excellent abrasion resistance and durability.
●The seal of piston adopts heterogeneous two-way seal structure. It has compact dimension and the function of oil reservation.
●Compact structure can effectively save fifty percent installation space with ISO15552 standard cylinder.
●There are magnetic switch slots around the cylinder body, which is convenient to install inducting switch.
●Bumper is available and it can availably absorb excrescent energy.
●Installing accessories with various specifications is optional.

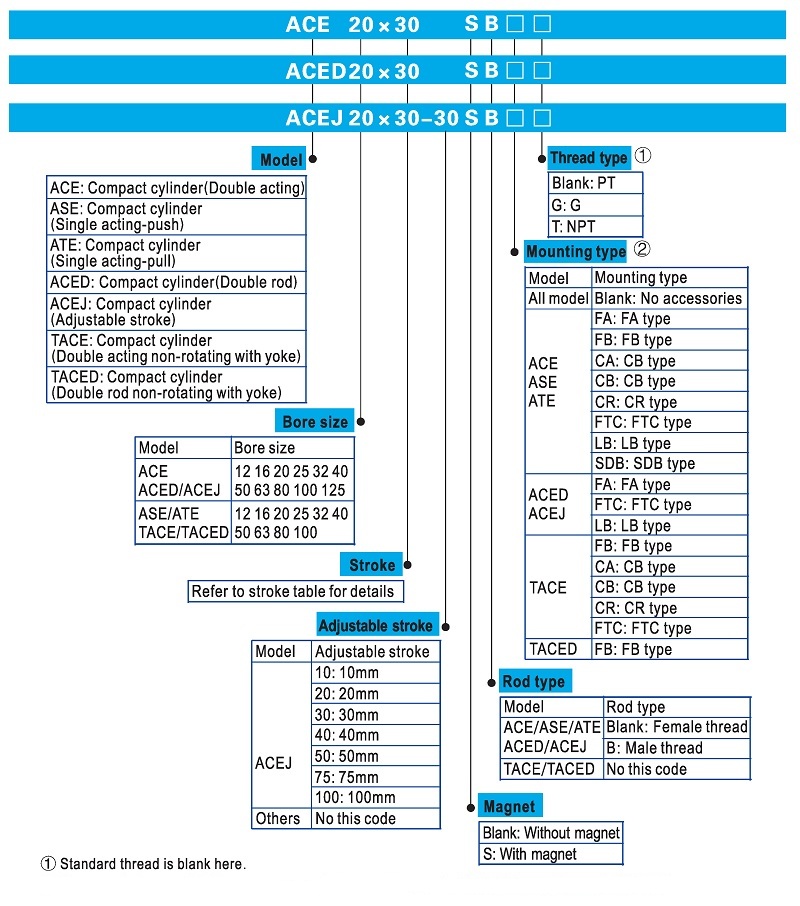

ACE Compact Cylinder Ordering Code
ACE Compact Cylinder Specification
| Compact Cylinder Bore Size(mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | 125 | |
| Acting type | Double Acting ;Single Acting-Pull ; Single Acting-Push | |||||||||||
| Fluid | Air (To be filtered by 40μm filter element) | |||||||||||
Operating Pressure | Double Acting | 0.1∽1.0Mpa(15∽145Psi)(1.0∽10Bar) | ||||||||||
| Single Acting | 0.2∽1.0Mpa(28∽145Psi)(2.0∽10Bar) | |||||||||||
| Proof Pressure | 1.35Mpa(200Psi)(13.5Bar) | |||||||||||
| Temperature℃ | -20∽80 | |||||||||||
| Speed Range mm/s | Double acting cylinder: 30∽500mm/s ; Single Acting Cylinder 50∽500mm/s | |||||||||||
| Stroke Tolerance | Stroke≤100:+1.0; Stroke≥100+1.5; | |||||||||||
| Cushion Type | Bumper | |||||||||||
| Port Size① | M5*0.8 | 1/8" | 1/4" | |||||||||
① PT thread , G thread ,NPT thread are available for 1/8",1/4"pipe size.
ACE Compact Cylinder Stroke
| Bore Size(mm) | Standard Stroke(mm) | Max.std.Stroke | ||
Common Type | Double Acting | 12 | 5 10 15 20 25 30 35 40 45 50 | 50 |
| 16 | 5 10 15 20 25 30 35 40 45 50 55 60 70 75 | 75 | ||
| 20 | 5 10 15 20 25 30 35 40 45 50 55 60 70 75 80 90 100 | 100 | ||
| 25 | 5 10 15 20 25 30 35 40 45 50 55 60 70 75 80 90 100 110 120 125 150 | 150 | ||
| 32 40 | 5 10 15 20 25 30 35 40 45 50 55 60 70 75 80 90 100 110 120 125 150 160 175 200 | 200 | ||
| 50 63 | 5 10 15 20 25 30 35 40 45 50 55 60 70 75 80 90 100 110 120 125 150 160 175 200 225 250 | 250 | ||
| 80 100 125 | 5 10 15 20 25 30 35 40 45 50 55 60 70 75 80 90 100 110 120 125 150 160 175 200 225 250 275 300 | 300 | ||
Single Acting | 12 | 5 10 | 10 | |
| 16∽100 | 5 10 15 20 25 | 25 | ||
Non-Rotating With Yoke | Double Acting | 12 | 5 10 15 20 25 30 35 40 45 50 | 50 |
| 16 | 5 10 15 20 25 30 35 40 45 50 55 60 70 75 | 75 | ||
| 20 25 | 5 10 15 20 25 30 35 40 45 50 55 60 70 75 80 90 100 | 100 | ||
| 32 40 | 5 10 15 20 25 30 35 40 45 50 55 60 70 75 80 90 100 | 100 | ||
| 50 63 | 5 10 15 20 25 30 35 40 45 50 55 60 70 75 80 90 100 | 100 | ||
| 80 100 | 5 10 15 20 25 30 35 40 45 50 55 60 70 75 80 90 100 | 100 | ||
1 Year Standard Warranty
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us.
How about the lead time of the ACE Pneumatic Compact Cylinder , delivery time?
Normally we keep some stock , so the lead time will less than 15 work days .
Is the Pneumatic sample for free ?
Yes, but need afford the freight
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time :15 work days
