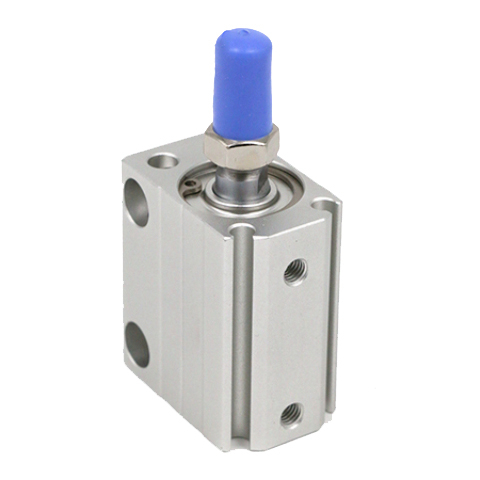

Free mount MU Small Pneumatic Cylinder Bore Size 6 mm To 10mm Equal To AIRTAC MU Series Small Cylinder
Product Feature
These small pneumatic cylinders are available in the following modes: double rod, double acting, single acting (push).
Available in bore sizes 6mm to 10mm and numerous stroke sizes. Version with magnet is also an option.
● JIS standard is implemented
●The small cylinder can be mounted from 4 direction,and convenient to install and use.
●Multitudinous small pneumatic cylinder can be mounted side by side to save space.
●The front end of the cylinder is designed with sidestep,centring can be done easily .
●The internal diameter of the body is treated with rolling followed by the treatment of the hard anodizing,forming an excellent abrasion resistance and durability.
●With magnet type is with the feature of position sensing.
●There are magnetic switch slots around the cylinder body ,which is convenient to install inducing switch.
●The seal of the piston adopts heterogeneous two-way seal struture .It has compact dimension and the function of grease reservation.

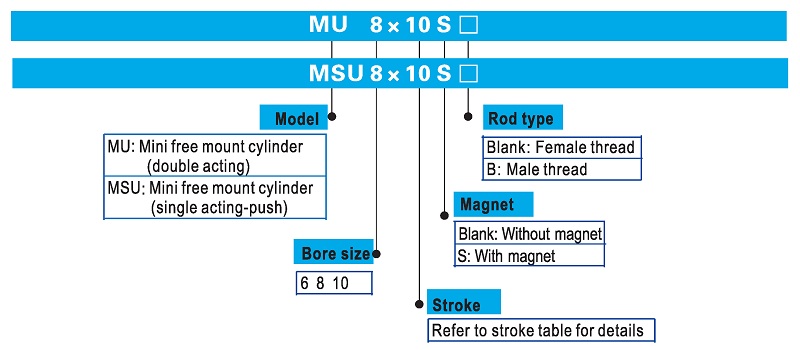

Free Mount MU Small Pneumatic Cylinder Ordering Code:
Free Mount MU Small Pneumatic Cylinder Specification
| Small Pneumatic Cylinder Bore (mm) | 6 | 8 | 10 | |
| Acting Type | MU:Double acting MSU:Single acting-push type | |||
| Fluid | Air (To be filtered by 40μm filter element) | |||
Operation Pressure | Double Acting | 0.15∽0.7Mpa(22∽100Psi) | 0.1∽0.7Mpa(14∽100Psi) | |
| Single Acting | 0.3∽0.7Mpa(44∽100Psi) | 0.2∽0.7Mpa(29∽100Psi) | ||
| Proof pressure | 1.05Mpa(150Psi) | |||
| Temperature ℃ | -20∽80 | |||
| Speed Range mm/s | Double Acting: 30∽500 ; Single Acting:50∽500 | |||
| Stroke Tolerance | +1.0 | |||
| Cushion Type | NO | |||
| Port Size | M3x5 | |||

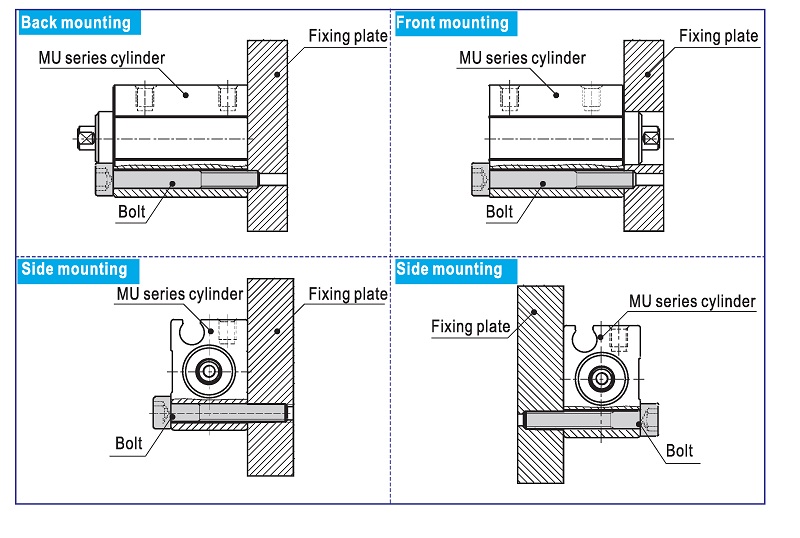

Free Mount MU Small Pneumatic Cylinder Mounting Type
Free Mount MU Small Pneumatic Cylinder Stroke
| MU Small Pneumatic Cylinder Bore(mm) | Standard Stroke(mm) | Max.std stroke | |
6 | Double Acting | 4 6 8 10 15 20 25 30 | 30 |
| Single Acting | 4 6 8 | 8 | |
| 8 | Double Acting | 4 6 8 10 15 20 25 30 | 30 |
| Single Acting | 4 6 8 10 | 10 | |
| 10 | Double Acting | 4 6 8 10 15 20 25 30 | 30 |
| Single Acting | 4 6 8 10 | 10 | |
Neu-Master Pneumatic warrants these compact pneumatic cylinders to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.
1 Year Standard Warranty
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us.
How about the lead time of the MU Small Pneumatic Cylinder , delivery time?
Normally we keep some stock , so the lead time will less than 15 work days .
Is the Pneumatic sample for free ?
Yes, but need afford the freight
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time :15 work days
