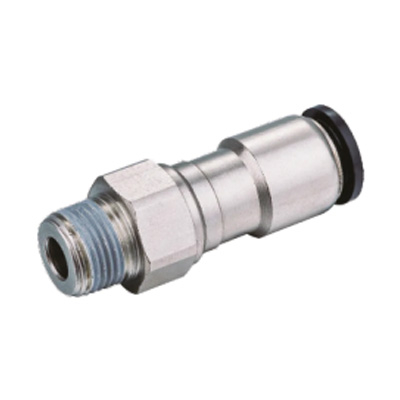

RC、RL Series Rotary Joint

1. Machine swing parts, rotating parts of the pipe fittings.
2. Bearing is used in the rotary part, which can be used for fast swing part and high-speed rotation part.

Availability:



Inquire Add to Basket

Product Description

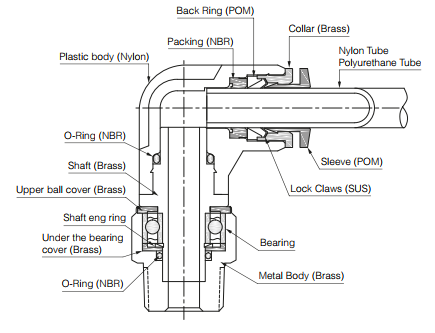

Schematic diagram of structure：

29df1c8cf04e2207940cec536999039

Specifications：

Using fluids	Air, water(conditional)
Working pressure range	0~1.0MPa
Use vacuum pressure	-100Kpa(10Torr)
Working temperature range	0~60℃

Rotary joint allowrotational speed:

Tube size	Allow rotational speed
4mm	500,r.p.m
6mm.1/4mm	500,r.p.m
8mm.5/16mm	400,r.p.m
10mm.3/8mm	300,r.p.m
12mm.1/2mm	250,r.p.m

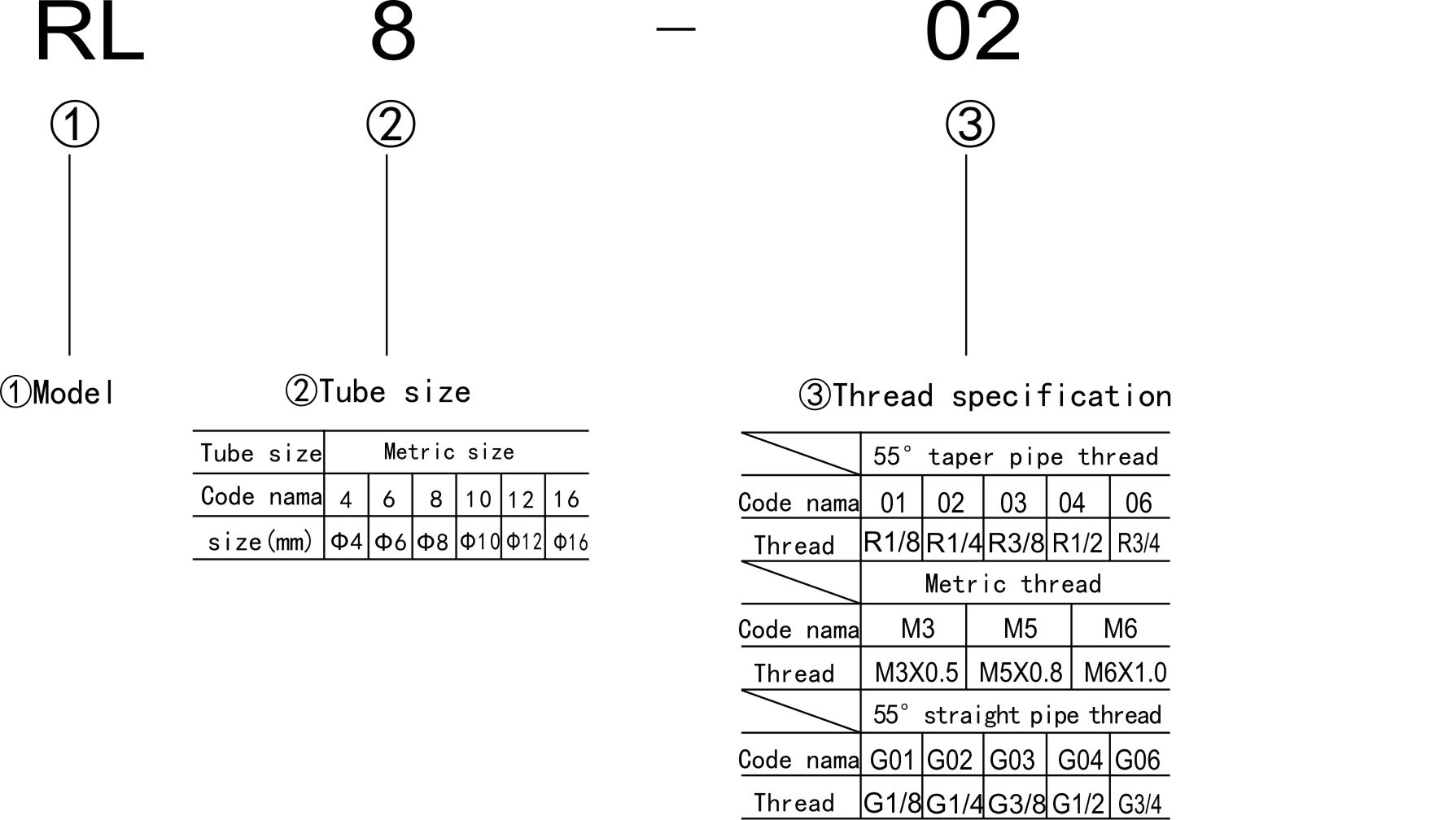

Ordering code(example)

RL8-02

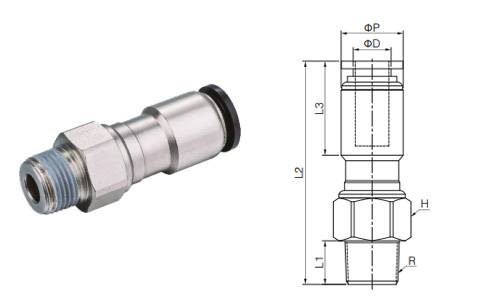

RC Series

RC Series

Model	ФD	R	L1	L2	L3	ФP	H
RC4-M5	4	M5X0.8	3	34	16	10	12
RC4-M6		M6X1.0	4	35	16	10	12
RC4-01		R1/8	8	36.5	16	10	14
RC6-M5	6	M5X0.8	3	35.5	16	12	12
RC6-M6		M6X1.0	4	36.5	16	12	12
RC6-01		R1/8	8	38	16	12	14
RC6-02		R1/4	11	42	16	12	17
RC8-01	8	R1/8	8	41.5	18.5	14	14
RC8-02		R1/4	11	45.5	18.5	14	17
RC8-03		R3/8	12.5	48.5	18.5	14	21
RC10-02	10	R1/4	11	53	21	17	17
RC10-03		R3/8	12.5	56	21	17	21
RC10-04		R1/2	15	58.3	21	17	24
RC12-02	12	R1/4	11	58.3	23	20	17
RC12-03		R3/8	12.5	61.3	23	20	21
RC12-04		R1/2	15	63.6	23	20	24
RC16-04	16	R1/2	15	64.6	24	24	27
RC1/4-01	1/4	R1/8	8	38	16	12	14
RC1/4-02	1/4	R1/4	11	42	16	12	17
RC5/16-01	5/16	R1/8	8	41.5	18.5	14	14
RC5/16-02		R1/4	11	45.5	18.5	14	17
RC5/16-03		R3/8	12.5	48.5	18.5	14	21
RC3/8-02	3/8	R1/4	11	53	21	17	17
RC3/8-03		R3/8	12.5	56	21	17	21
RC3/8-04		R1/2	15	58.3	21	17	24
RC1/2-02	1/2	R1/4	11	58.3	23	20	17
RC1/2-03		R3/8	12.5	61.3	23	20	21
RC1/2-04		R1/2	15	63.6	23	20	24

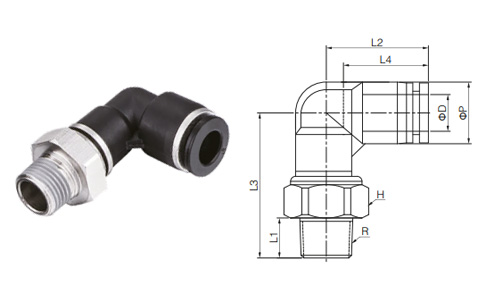

RL Series

RL Series

Model	ФD	R	L1	L2	L3	L4	ФP	H
RL4-M5	4	M5X0.8	3	18.5	27.8	16	11	12
RL4-M6		M6X1.0	4	18.5	28.8	16	11	12
RL4-01		R1/8	8	18.5	30.4	16	11	14
RL4-02		R1/4	11	18.5	34.4	16	11	17
RL6-M5	6	M5X0.8	3	19	28.8	16	13	12
RL6-M6		M6X1.0	4	19	29.8	16	13	12
RL6-01		R1/8	8	19	31.4	16	13	14
RL6-02		R1/4	11	19	35.4	16	13	17
RL8-01	8	R1/8	8	22.5	34.4	18.5	14.4	14
RL8-02		R1/4	11	22.5	37.9	18.5	14.4	17
RL8-03		R3/8	12.5	22.5	40.9	18.5	14.4	21
RL10-02	10	R1/4	11	27.5	41	20.5	18.4	17
RL10-03		R3/8	12.5	27.5	43.4	20.5	18.4	21
RL10-04		R1/2	15	27.5	45.7	20.5	18.4	24
RL12-02	12	R1/4	11	29	41.5	23	21	17
RL12-03		R3/8	12.5	29	43.9	23	21	21
RL12-04		R1/2	15	29	46.2	23	21	24
RL16-04	16	R1/2	15	32.5	57.6	24	26	27
RL1/4-01	1/4	R1/8	8	19	31.4	16	13	14
RL1/4-02	1/4	R1/4	11	19	35.4	16	13	17
RL5/16-01	5/16	R1/8	8	22.5	34.4	18.5	14.4	14
RL5/16-02		R1/4	11	22.5	37.9	18.5	14.4	17
RL5/16-03		R3/8	12.5	22.5	40.9	18.5	14.4	21
RL3/8-02	3/8	R1/4	11	27.5	41	20.5	18.4	17
RL3/8-03		R3/8	12.5	27.5	43.4	20.5	18.4	21
RL3/8-04		R1/2	15	27.5	45.7	20.5	18.4	24
RL1/2-02	1/2	R1/4	11	29	41.5	23	21	17
RL1/2-03		R3/8	12.5	29	43.7	23	21	21
RL1/2-04		R1/2	15	29	46.2	23	21	24
