NPYT、NPWT、NPHT、NPZT、NPCT Series Push-IN Fittings
Home » Products » AIR LINE ACCESSORY » Brass Tube Connector » NPYT、NPWT、NPHT、NPZT、NPCT Series Push-IN Fittings

Related Products

PRODUCT DETAIL

NPYT、NPWT、NPHT、NPZT、NPCT Series Push-IN Fittings NPYT、NPWT、NPHT、NPZT、NPCT Series Push-IN Fittings
NPYT、NPWT、NPHT、NPZT、NPCT Series Push-IN Fittings NPYT、NPWT、NPHT、NPZT、NPCT Series Push-IN Fittings
NPYT、NPWT、NPHT、NPZT、NPCT Series Push-IN Fittings NPYT、NPWT、NPHT、NPZT、NPCT Series Push-IN Fittings
NPYT、NPWT、NPHT、NPZT、NPCT Series Push-IN Fittings NPYT、NPWT、NPHT、NPZT、NPCT Series Push-IN Fittings
NPYT、NPWT、NPHT、NPZT、NPCT Series Push-IN Fittings NPYT、NPWT、NPHT、NPZT、NPCT Series Push-IN Fittings
NPYT、NPWT、NPHT、NPZT、NPCT Series Push-IN Fittings NPYT、NPWT、NPHT、NPZT、NPCT Series Push-IN Fittings

loading

NPYT、NPWT、NPHT、NPZT、NPCT Series Push-IN Fittings

Share to:
sharethis sharing button
1.The main and auxiliary parts are pneumatic pipe joints made of copper.
2. The joint has excellent flame resistance, heat resistance and splash resistance.
3. When inserting and removing the pipe, press the button down, which can be easily inserted and removed without damaging the pipe.
4. After installation, the direction of connecting pipe can be adjusted only by rotating the connector body
Availability:
Inquire Add to Basket

Schematic diagram of structure：

11




Specifications

Using fluids

Air, water (conditional)

Working pressure range

0~1.0MPa

Use vacuum pressure

-100KPa(10Torr)

Working temperature range

0~60℃



Ordering code (example)


12

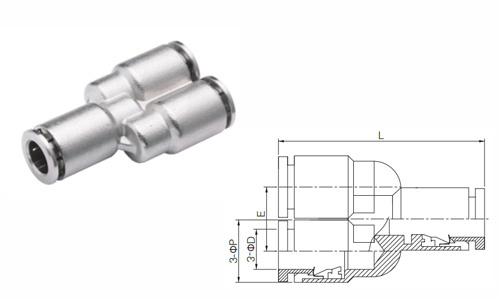

NPYT Series

NPYT Series


Model

ФD

L

E

ФP1

NPYT04

4

42

10

10

NPYT06

6

44.2

12

12

NPYT08

8

49.7

14

14

NPYT10

10

56.3

16

16

NPYT12

12

56.4

18

18

Note: there are Inch size 5/32, 1/4, 5/16, 3/8, 1/2 complete series products.

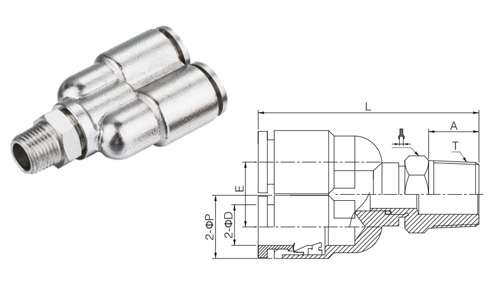

NPWT Series

NPWT Series

Model

ФD

T

A

L

E

ФP

六角图标

NPWT04-M5



4

M5X0.8

3.5

38

10

10

10

NPWT04-01

R01

8

41

10

10

10

NPWT04-02

R02

10

43.5

10

10

14

NPWT06-M5



6

M5X0.8

3.5

41

12

12

10

NPWT06-01

R01

8

44

12

12

10

NPWT06-02

R02

10

46.5

12

12

14

NPWT08-01





8

R01

8

49

14

14

12

NPWT08-02

R02

10

51

14

14

14

NPWT08-03

R03

11

52

14

14

14

NPWT08-04

R04

14

55.5

14

14

14

NPWT010-01





10

R01

8

53

16

16

14

NPWT010-02

R02

10

55

16

16

14

NPWT010-03

R03

11

56

16

16

17

NPWT010-04

R04

14

59.5

16

16

21

NPWT012-02



12

R02

10

55.7

18

18

17

NPWT012-03

R03

11

56.7

18

18

17

NPWT012-04

R04

14

60.2

18

18

21

Note: there are Inch size 5/32, 1/4, 5/16, 3/8, 1/2 complete series products.

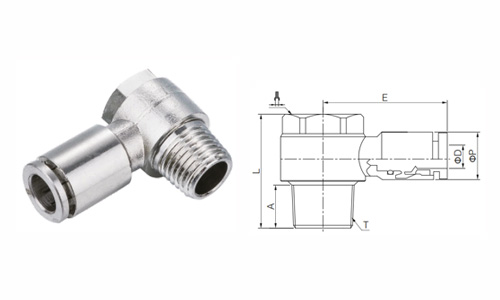

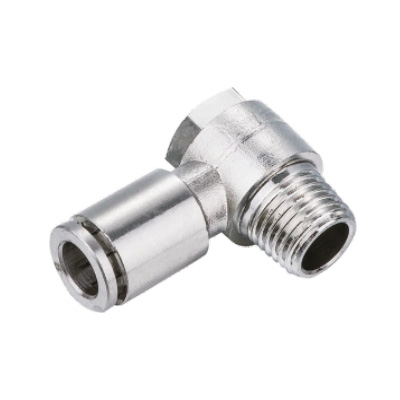

NPHT Series

NPHT Series


Model

ФD

T

A

L

E

ФP

六角图标

NPHT04-M5



4

M5X0.8

3.5

17

23.5

10

8

NPHT04-01

R01

8

24

24

10

12

NPHT04-02

R02

10

26.5

26

10

14

NPHT06-M5



6

M5X0.8

3.5

17

24.2

12

8

NPHT06-01

R01

8

24

24

12

12

NPHT06-02

R02

10

26.5

26

12

14

NPHT08-01





8

R01

8

24

25.5

14

12

NPHT08-02

R02

10

26.5

27.5

14

14

NPHT08-03

R03

11

32

29.5

14

19

NPHT08-04

R04

14

39

34.7

14

24

NPHT010-02



10

R02

10

26.5

31.2

16

14

NPHT010-03

R03

11

32

32

16

19

NPHT010-04

R04

14

39

36.2

16

24

NPHT012-03



12

R03

11

32

35.5

18

19

NPHT012-04

R04

14

39

36.7

18

24

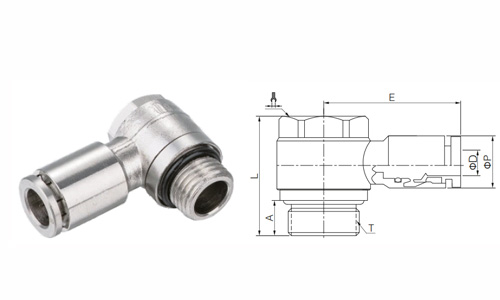

NPHT-G Series

NPHT-G Series

Model

ФD

T

A

L

E

ФP

六角图标

NPHT04-G01



4

G01

5

23.5

24

10

12

NPHT04-G02

G02

7.5

27

26

10

14

NPHT06-G01



6

G01

5

23.5

24

12

12

NPHT06-G02

G02

7.5

27

26

12

14

NPHT08-G01





8

G01

5

23.5

25.5

14

12

NPHT08-G02

G02

7.5

27

27.5

14

14

NPHT08-G03

G03

7.5

32

29.5

14

19

NPHT08-G04

G04

10

39

34.7

14

24

NPHT010-G02



10

G02

7.5

27

31.2

16

14

NPHT010-G03

G03

7.5

32

32

16

19

NPHT010-G04

G04

10

39

36.2

16

24

NPHT012-G03



12

G03

7.5

32

35.7

18

19

NPHT012-G04

G04

10

39

36.7

18

24

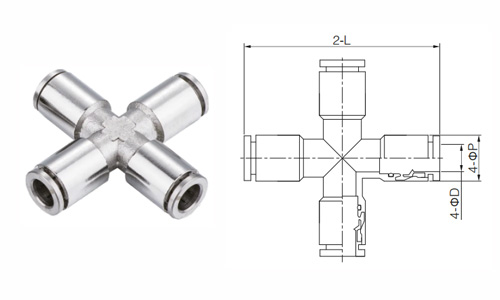

NPZT Series

NPZT Series

Model

ФD

L

ФP

NPZT04

4

47

10

NPZT06

6

49.4

12

NPZT08

8

55.4

14

NPZT10

10

63.4

16

NPZT12

12

64.4

18

Note: there are Inch size 5/32, 1/4, 5/16, 3/8, 1/2 complete series products.

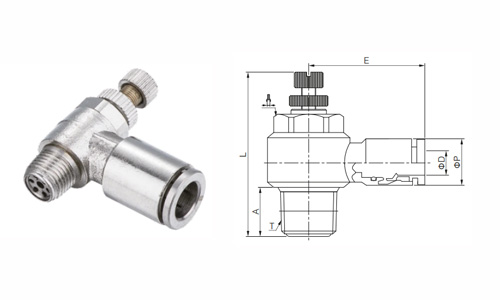

NSCT Series

NSCT Series

Model

ФD

T

A

L-MIN

L-MAX

E

ФP

六角图标六角图标

NSCT04-M5



4

M5X0.8

3.5

29

31.5

23.5

10

8

NSCT04-01

R01

8

35

40.5

24

10

12

NSCT04-02

R02

10

41.5

47

26

10

14

NSCT06-M5



6

M5X0.8

3.5

29

31.5

24.2

12

8

NSCT06-01

R01

8

35

40.5

24

12

12

NSCT06-02

R02

10

41.5

47

26

12

14

NSCT08-01





8

R01

8

35

40.5

25.5

14

12

NSCT08-02

R02

10

41.5

47

27.5

14

14

NSCT08-03

R03

11

48

43.5

29.5

14

19

NSCT08-04

R04

14

53.5

59.5

34.7

14

24

NSCT010-02



10

R02

10

41.5

47

31.2

16

14

NSCT010-03

R03

11

48

53.5

32

16

19

NSCT010-04

R04

14

53.5

59.5

36.2

16

24

NSCT012-03



12

R03

11

48

53.5

35.7

18

19

NSCT012-04

R04

14

53.5

59.5

36.7

18

24

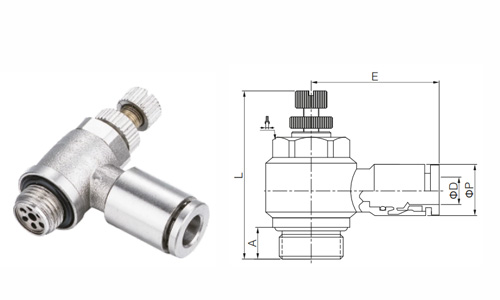

NSCT-G Series

NSCT-G Series


Model

ФD

T

A

L-MIN

L-MAX

E

ФP

六角图标六角图标

NSCT04-G01



4

G01

5

35

40.5

24

10

12

NSCT04-G02

G02

7.5

41.5

47

26

10

14

NSCT06-G01



6

G01

5

35

40.5

24

12

12

NSCT06-G02

G02

7.5

41.5

47

26

12

14

NSCT08-G01





8

G01

5

35

40.5

25.5

14

12

NSCT08-G02

G02

7.5

41.5

47

27.5

14

14

NSCT08-G03

G03

7.5

48

53.5

29.5

14

19

NSCT08-G04

G04

10

53.5

59.5

34.7

14

24

NSCT010-G02





10

G02

7.5

41.5

47

31.2

16

14

NSCT010-G03

G03

7.5

48

53.5

32

16

19

NSCT010-G04

G04

10

53.5

59.5

36.2

16

24

NSCT012-G03



12

G03

7.5

48

53.5

35.7

18

19

NSCT012-G04

G04

10

53.5

59.5

36.7

18

24
