PC Series Quick Connecting Tube Fittings

PC Series Quick Connecting Tube Fittings

Gas operated quick intubation connector
Product feature：
1.The quick plug-in pneumatic pipe joint is used for pneumatic pipe system.
2.There are many kinds of pipe joints,which can be used in all kinds of gas pipe systems.
3.Even after installation,the direction of the pipe can be changed freely.
4.Nickel plated copper body can prevent corrosion and pollution.
5.All R and NPT thread sealants are used for sealing.
6.Standard O-rings are used for all straight threads.

Availability:



Inquire Add to Basket

Product Description

Schematic diagram of structure：

Specifications：

Use medium	Air, water(conditional)
Working pressure range	0~1.2MPa
Use vacuum pressure	-100Kpa(10Torr)
Working temperature range	-10°~60℃

Ordering code:

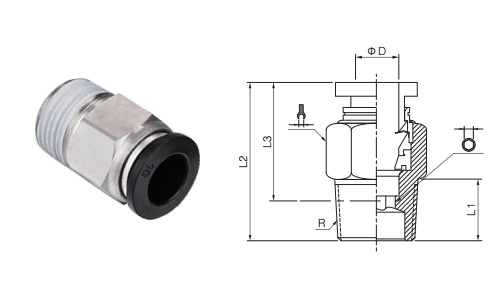

PC-R Series

Model	ФD	R	L1	L2	L3
PC4-M5	4	M5	3.5	20	16.5	10	2
PC4-M6		M6	4	20.5	16.5	10	2.5
PC4-01		R1/8	7.5	19.5	15.5	10	3
PC4-02		R1/4	10	19.5	13.5	14	3
PC4-03		R3/8	10.5	20.5	14	17	3
PC6-M5	6	M5	3.5	21	17.5	12	2
PC6-M6		M6	4	21.5	17.5	12	2.5
PC6-01		R1/8	7.5	21	17	12	4
PC6-02		R1/4	10	23	17	14	4
PC6-03		R3/8	10.5	21	14.5	17	4
PC6-04		R1/2	13.5	25	16.5	21	4
PC8-01	8	R1/8	7.5	26.5	22.5	14	5
PC8-02		R1/4	10	25	19	14	6
PC8-03		R3/8	10.5	21.5	15	17	6
PC8-04		R1/2	13.5	25.5	17.5	211	6
PC10-01	10	R1/8	7.5	29	25	17	5
PC10-02		R1/4	10	31	25	17	6
PC10-03		R3/8	10.5	27	20.5	17	8
PC10-04		R1/2	13.5	26.5	18	21	8
PC10-06		R3/4	15	28	18.5	27	8
PC12-01	12	R1/8	7.5	31.5	27.5	21	5
PC12-02		R1/4	10	34	28	21	6
PC12-03		R3/8	10.5	29.5	23	21	8
PC12-04		R1/2	13.5	32.5	24.5	21	10
PC12-06		R3/4	15	29	19.5	27	10
PC14-02	14	R1/4	10	34.5	28.5	22	6
PC14-03		R3/8	10.5	35	28.5	22	10
PC14-04		R1/2	13.5	33	24.5	22	10
PC14-06		R3/4	15	29.5	20	27	10
PC16-02	16	R1/4	10	36	30	24	6
PC16-03		R3/8	10.5	37	30.5	24	10
PC16-04		R1/2	13.5	37	28.5	24	12
PC16-06		R3/4	15	29.5	20	27	12

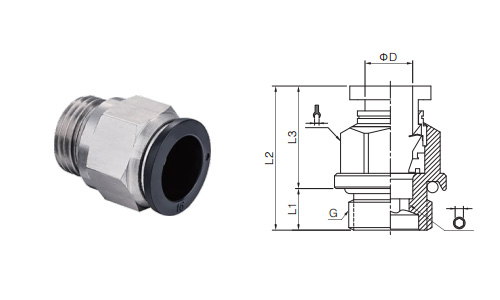

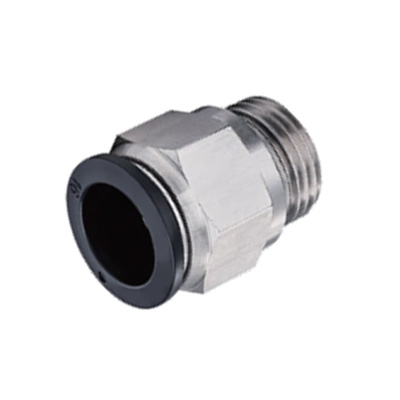

PC-G Series

Model	ФD	R	L1	L2	L3
PC4-M5	4	M5	3.5	20	16.5	10	2
PC4-M6		M6	4	20.5	16.5	10	2.5
PC4-01		R1/8	7.5	19.5	15.5	10	3
PC4-02		R1/4	10	19.5	13.5	14	3
PC4-03		R3/8	10.5	20.5	14	17	3
PC6-M5	6	M5	3.5	21	17.5	12	2
PC6-M6		M6	4	21.5	17.5	12	2.5
PC6-01		R1/8	7.5	21	17	12	4
PC6-02		R1/4	10	23	17	14	4
PC6-03		R3/8	10.5	21	14.5	17	4
PC6-04		R1/2	13.5	25	16.5	21	4
PC8-01	8	R1/8	7.5	26.5	22.5	14	5
PC8-02		R1/4	10	25	19	14	6
PC8-03		R3/8	10.5	21.5	15	17	6
PC8-04		R1/2	13.5	25.5	17.5	21	6
PC10-01	10	R1/8	7.5	29	25	17	5
PC10-02		R1/4	10	31	25	17	6
PC10-03		R3/8	10.5	27	20.5	17	8
PC10-04		R1/2	13.5	26.5	18	21	8
PC10-06		R3/4	15	28	18.5	27	8
PC12-01	12	R1/8	7.5	31.5	27.5	21	5
PC12-02		R1/4	10	34	28	21	6
PC12-03		R3/8	10.5	29.5	23	21	8
PC12-04		R1/2	13.5	32.5	24.5	21	10
PC12-06		R3/4	15	29	19.5	27	10

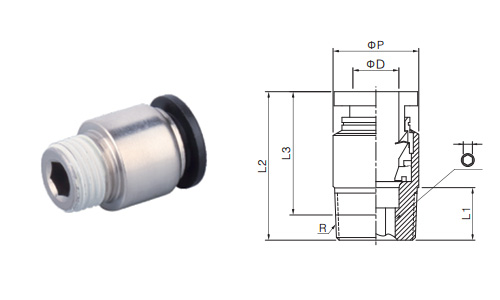

POC-R Series

Model	ФD	R	L1	L2	L3	ФP
POC4-M5	4	M5	3.5	20	16.5	10	2
POC4-M6		M6	4	20.5	16.5	10	2.5
POC4-01		R1/8	7.5	19.5	15.5	10	3
POC4-02		R1/4	10	19.5	13.5	14	3
POC6-M5	6	M5	3.5	21	17.5	12	2
POC6-M6		M6	4	21.5	17.5	12	2.5
POC6-01		R1/8	7.5	21	17	12	4
POC6-02		R1/4	10	23	17	14	4
POC6-03		R3/8	10.5	21	14.5	17	4
POC8-01	8	R1/8	7.5	26.5	22.5	14	5
POC8-02		R1/4	10	25	19	14	6
POC8-03		R3/8	10.5	21.5	15	17	6
POC8-04		R1/2	13.5	25.5	17.5	21	6
POC10-01	10	R1/8	7.5	29	25	17	5
POC10-02		R1/4	10	31	25	17	6
POC10-03		R3/8	10.5	27	20.5	17	8
POC10-04		R1/2	13.5	26	18	21	8
POC12-01	12	R1/4	10	34	28	21	6
POC12-02		R3/8	10.5	29.5	23	21	8
POC12-03		R1/2	13.5	32.5	24.5	21	10
POC12-04	16	R3/8	10.5	37	30.5	24	10
POC12-06	16	R1/2	13.5	37	28.5	24	12

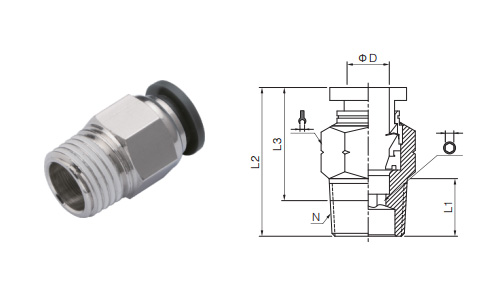

PC-NPT Series

Model	ФD	N	L1	L2	L3
PC41/8-U10	1/8	10-32UNF	3.5	20	16.5	7/16	2
PC1/8-N01		NPT1/8	7.5	19.5	15.5	7/16	2.4
PC1/8-N02		NPT1/4	10	19.5	13.5	9/16	2.4
PC5/32-U10	5/32	10-32UNF	3.5	20	16.5	7/16	2
PC5/32-N01		NPT1/8	7.5	19.5	15.5	7/16	3.2
PC5/32-N02		NPT1/4	10	19.5	13.5	9/16	3.2
PC3/16-U10	3/16	10-32UNF	3.5	20	16.5	7/16	2
PC3/16-N01		NPT1/8	7.5	19.5	15.5	7/16	4
PC3/16-N02		NPT1/4	10	19.5	13.5	9/16	4
PC1/4-U10	1/4	10-32UNF	3.5	21	17.5	1/2	2
PC1/4-N01		NPT1/8	7.5	21	17	1/2	4
PC1/4-N02		NPT1/4	10	23	17	9/16	4
PC1/4-N03		NPT3/8	10.5	21	15	11/16	4
PC5/16-N01	5/16	NPT1/8	7.5	26.5	22.5	9/16	5.6
PC5/16-N02		NPT1/4	10	25	19.5	9/16	6.4
PC5/16-N03		NPT3/8	10.5	21.5	15.5	11/16	6.4
PC5/16-N04		NPT1/2	13.5	25.5	17.5	7/8	6.4
PC3/8-N01	3/8	NPT1/8	7.5	29	22.5	11/16	5.6
PC3/8-N02		NPT1/4	10	31	25	11/16	6.4
PC3/8-N03		NPT3/8	10.5	27	21	11/16	8
PC3/8-N04		NPT1/2	13.5	26	18	7/8	8
PC1/2-N02	1/2	NPT1/4	10	34	28	7/8	6.4
PC1/2-N03		NPT3/8	10.5	30.5	24	7/8	9.6
PC1/2-N04		NPT1/2	13.5	32.5	24.5	7/8	9.6

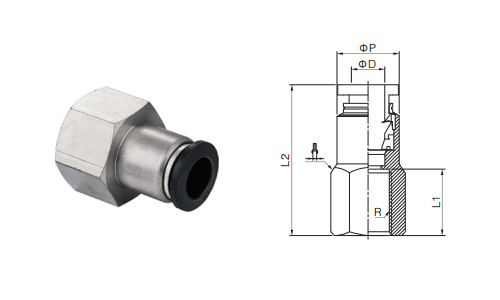

PCF-R Series

Model	ФD	R	L1	L2	ФP
PCF4-M5	4	M5	5	21.5	10	10
PCF4-M6		M6	5	21.5	10	10
PCF4-01		R1/8	8.5	24.5	10	14
PCF4-02		R1/4	11	27	10	17
PCF6-M5	6	M5	5	22	12	12
PCF6-M6		M6	5	22	12	12
PCF6-01		R1/8	8.5	25.5	12	14
PCF6-02		R1/4	11	28	12	17
PCF6-03		R3/8	11.5	28.5	12	20
PCF8-01	8	R1/8	8.5	27.5	14	14
PCF8-02		R1/4	11	30	14	17
PCF8-03		R3/8	11.5	30.5	14	20
PCF8-04		R1/2	14	33	14	24
PCF10-01	10	R1/8	8.5	30	17	17
PCF10-02		R1/4	11	32.5	17	17
PCF10-03		R3/8	11.5	33	17	20
PCF10-04		R1/2	14	35.5	17	24
PCF12-02	12	R1/4	11	35	20	20
PCF12-03		R3/8	11.5	35.5	20	20
PCF12-04		R1/2	14	38	20	24
PCF14-03	14	R3/8	11.5	36	22	22
PCF14-04	14	R1/2	14	38.5	22	24
PCF16-03	16	R3/8	11.5	37	24	24
PCF16-04	16	R1/2	14	39.5	24	24

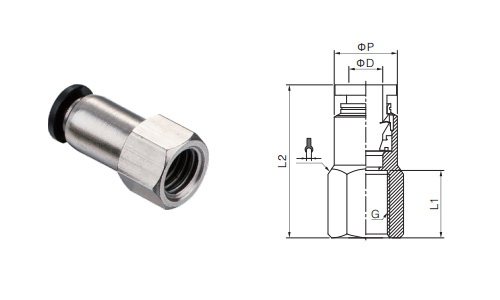

PCF-G Series

Model	ФD	G	L1	L2	ФP
PCF4-G01	4	G1/8	8.5	24.5	10	14
PCF4-G02	4	G1/4	11	27	10	17
PCF6-G01	6	G1/8	8.5	25.5	12	14
PCF6-G02		G1/4	11	28	12	17
PCF6-G03		G3/8	11.5	28.5	12	20
PCF8-G01	8	G1/8	8.5	27.5	14	14
PCF8-G02		G1/4	11	30	14	17
PCF8-G03		G3/8	11.5	30.5	14	20
PCF8-G04		G1/2	14	33	14	24
PCF10-G01	10	G1/8	8.5	30	17	17
PCF10-G02		G1/4	11	32.5	17	17
PCF10-G03		G3/8	11.5	33	17	20
PCF10-G04		G1/2	14	35.5	17	24
PCF12-G02	12	G1/4	11	35	20	20
PCF12-G03		G3/8	11.5	35.5	20	20
PCF12-G04		G1/2	14	38	20	24
PCF14-G03	14	G3/8	11.5	36	22	22
PCF14-G04	14	G1/2	14	38.5	22	24
PCF16-G03	16	G3/8	11.5	37	24	24
PCF16-G04	16	G1/2	14	39.5	24	24
