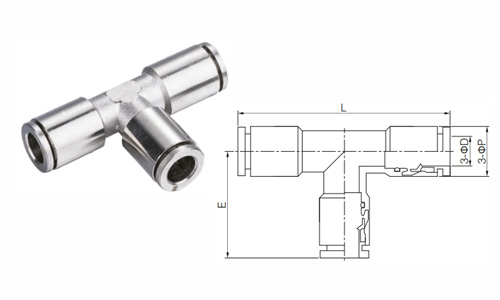

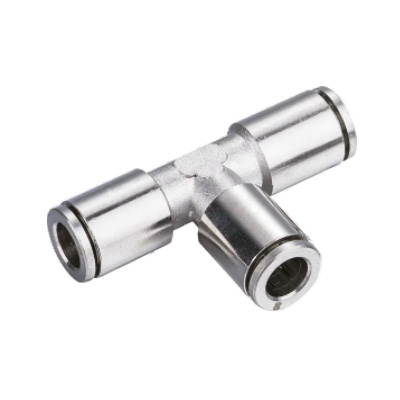

NPOCT、NPMT、NPGJT、NPUT、NPVT、NPET Series Push-IN Fittings

NPOCT、NPMT、NPGJT、NPUT、NPVT、NPET Series Push-IN Fittings

1.The main and auxiliary parts are pneumatic pipe joints made of copper.
2. The joint has excellent flame resistance, heat resistance and splash resistance.
3. When inserting and removing the pipe, press the button down, which can be easily inserted and removed without damaging the pipe.
4. After installation, the direction of connecting pipe can be adjusted only by rotating the connector body

Availability:



Inquire Add to Basket

Product Description

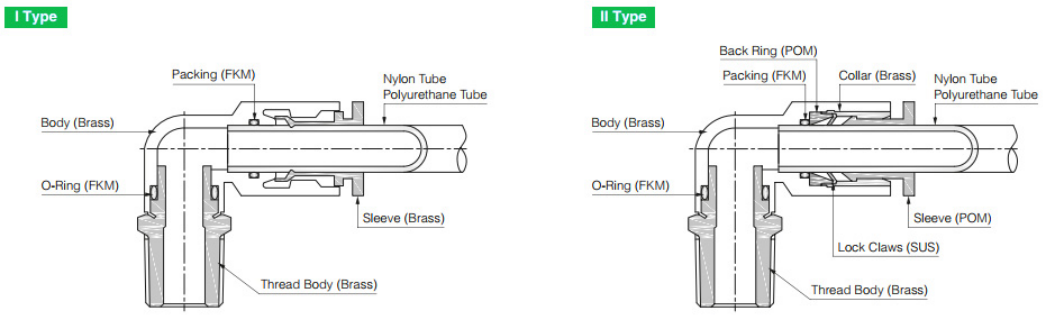

Schematic diagram of structure：

Specifications

Using fluids	Air, water (conditional)
Working pressure range	0~1.0MPa
Use vacuum pressure	-100KPa(10Torr)
Working temperature range	0~60℃

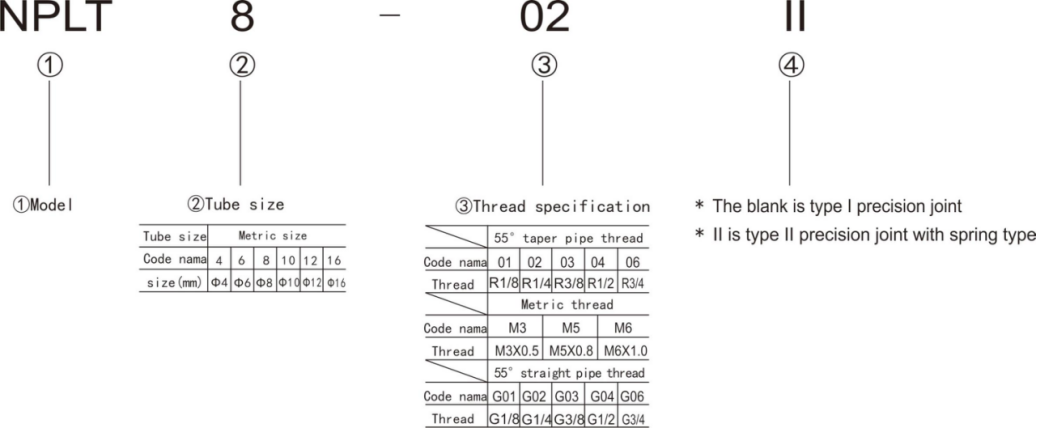

Ordering code (example)

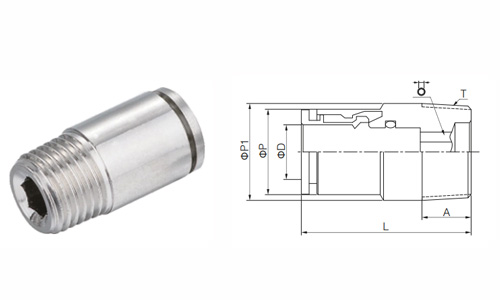

NPOCT Series

NPOCT Series

Model	ФD	T	A	L	ФP1	ФP2
NPOCT04-M5	4	M5X0.8	3.5	23.5	10	10	2
NPOCT04-01		R01	8	23	10	10	3
NPOCT04-02		R02	10	23	13.4	10	3
NPOCT06-M5	6	M5X0.8	3.5	24.2	12	12	2
NPOCT06-01		R01	8	24.5	12	12	5
NPOCT06-02		R02	10	24.7	13.4	12	5
NPOCT08-01	8	R01	8	28.2	14	14	5
NPOCT08-02		R02	10	27.2	14	14	6
NPOCT08-03		R03	11	27.2	17	14	6
NPOCT08-04		R04	14	27.2	21	14	6
NPOCT010-01	10	R01	8	30.7	16	16	5
NPOCT010-02		R02	10	31.2	16	16	6
NPOCT010-03		R03	11	31.2	17	16	8
NPOCT010-04		R04	14	31.2	21	16	8
NPOCT012-02	12	R02	10	33.2	18	18	6
NPOCT012-03		R03	11	33.2	18	18	8
NPOCT012-04		R04	14	31.7	21	18	8

Note: there are Inch size 5/32, 1/4, 5/16, 3/8, 1/2 complete series products.

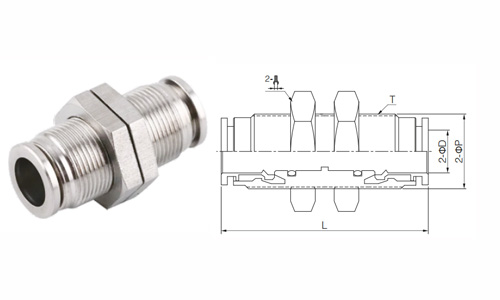

NPMT Series

NPMT Series

Model	ФD	T	L	ФP
NPMT04	4	M12X1.0	37.6	10	14
NPMT06	6	M14X1.0	38.4	12	17
NPMT08	8	M16X1.0	40.4	14	19
NPMT10	10	M18X1.0	44	16	21
NPMT12	12	M20X1.0	45	18	24
NPMT16	16	M24X1.0	55	22	30

Note: there are Inch size 5/32, 1/4, 5/16, 3/8, 1/2 complete series products.

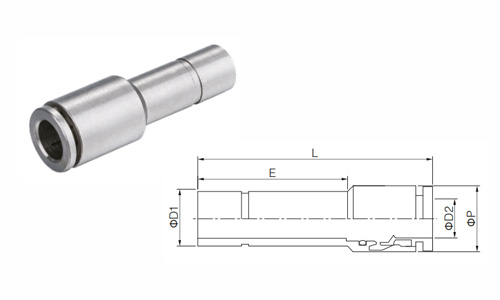

NPGJT Series

NPGJT Series

Model	ФD1	ФD2	L	E	ФP
NPGJT06-04	6	4	35	21	10
NPGJT08-06	8	6	36	22	12
NPGJT10-08	10	8	41	23	14
NPGJT12-10	12	10	44	25	16

Note: there are Inch size 5/32, 1/4, 5/16, 3/8, 1/2 complete series products.

NPUT Series

NPUT Series

Model	ФD1	ФD2	L	ФP1	ФP2
NPUT04	4	4	37.6	10	10
NPUT06	6	6	38.4	12	12
NPUT08	8	8	40.4	14	14
NPUT10	10	10	44	16	16
NPUT12	12	12	45	18	18
NPUT16	16	16	55	22	22
NPUT06-04	6	4	38	12	10
NPUT08-06	8	6	39.4	14	12
NPUT10-08	10	8	42.2	16	14
NPUT12-10	12	10	44.5	18	16

Note: there are Inch size 5/32, 1/4, 5/16, 3/8, 1/2 complete series products.

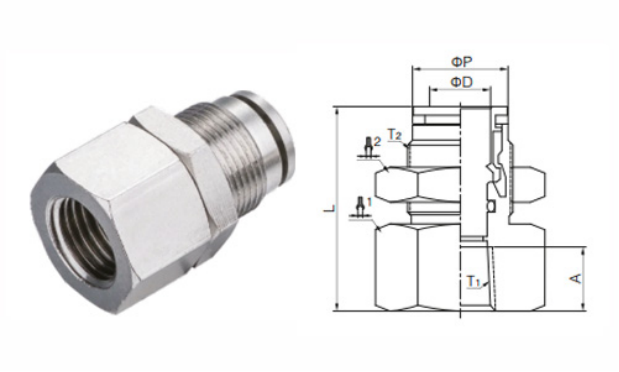

NPMFT Series

NPMFT Series

Model	ФD1	ФD2	L	ФP1	ФP2
NPUT04	4	4	37.6	10	10
NPUT06	6	6	38.4	12	12
NPUT08	8	8	40.4	14	14
NPUT10	10	10	44	16	16
NPUT12	12	12	45	18	18
NPUT16	16	16	55	22	22
NPUT06-04	6	4	38	12	10
NPUT08-06	8	6	39.4	14	12
NPUT10-08	10	8	42.2	16	14
NPUT12-01	12	10	44.5	18	16
