NPCT、NPLT、NPBT Series Push-IN Fittings

1.The main and auxiliary parts are pneumatic pipe joints made of copper.
2. The joint has excellent flame resistance, heat resistance and splash resistance.
3. When inserting and removing the pipe, press the button down, which can be easily inserted and removed without damaging the pipe.
4. After installation, the direction of connecting pipe can be adjusted only by rotating the connector body

Availability:



Inquire Add to Basket

Product Description

Schematic diagram of structure：

Specifications

Using fluids	Air, water (conditional)
Working pressure range	0~1.0MPa
Use vacuum pressure	-100KPa(10Torr)
Working temperature range	0~60℃

Ordering code (example)

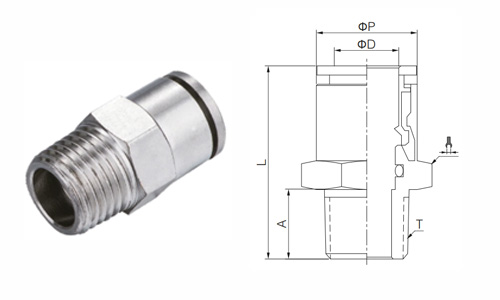

NPCT Series

Model	ФD	T	A	L	ФP
NPCT04-M5	4	M5X0.8	3.5	23.5	10	10
NPCT04-01		R01	8	23	10	10
NPCT04-02		R02	10	23.5	10	14
NPCT06-M5	6	M5X0.8	3.5	24.2	12	12
NPCT06-01		R01	8	24.5	12	12
NPCT06-02		R02	10	24.7	12	14
NPCT08-01	8	R01	8	28.2	14	14
NPCT08-02		R02	10	27.2	14	14
NPCT08-03		R03	11	27.2	14	17
NPCT08-04		R04	14	27.2	14	21
NPCT010-01	10	R01	8	30.7	16	17
NPCT010-02		R02	10	31.2	16	17
NPCT010-03		R03	11	31.2	16	17
NPCT010-04		R04	14	31.2	16	21
NPCT012-02	12	R02	10	33.2	18	19
NPCT012-03		R03	11	32.2	18	19
NPCT012-04		R04	14	31.7	18	21
NPCT016-03	16	R03	11	37	22	22
NPCT016-04	16	R04	14	39	22	22

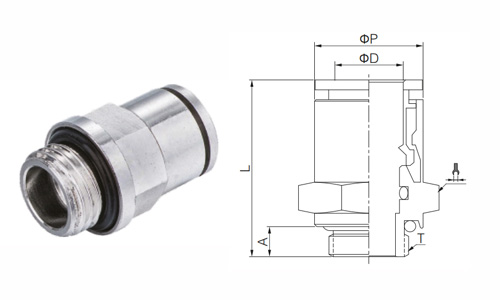

NPCT-G Series

Model	ФD	T	A	L	ФP
NPCT04-G01	4	G01	5.5	23	10	10
NPCT04-G02	4	G02	6.5	23	10	14
NPCT06-G01	6	G01	5.5	23.4	12	14
NPCT06-G02	6	G02	6.5	23.4	12	12
NPCT08-G01	8	G01	5.5	27.7	14	14
NPCT08-G02		G02	6.5	26.2	14	14
NPCT08-G03		G03	7.5	26.2	14	14
NPCT08-G04		G04	10	26.2	14	14
NPCT010-G01	10	G01	5.5	29.7	16	17
NPCT010-G02		G02	6.5	30.2	16	17
NPCT010-G03		G03	7.5	29.2	16	17
NPCT010-G04		G04	10	29.2	16	17
NPCT012-G02	12	G02	6.5	30.7	18	19
NPCT012-G03		G03	7.5	30.2	18	19
NPCT012-G04		G04	10	29.5	18	19
NPCT016-G03	16	G03	7.5	36.5	22	22
NPCT016-G04	16	G04	10	28.5	22	24

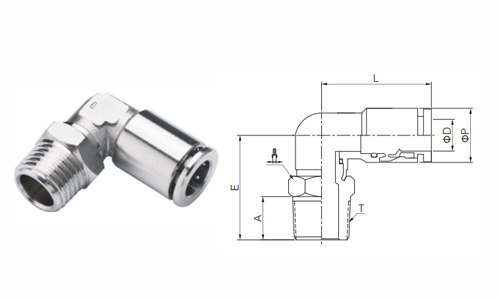

NPLT Series

Model	ФD	T	A	L	E	ФP
NPLT04-M5	4	M5X0.8	3.5	23.5	15.8	10	8
NPLT04-01		R01	8	23.5	19.3	10	10
NPLT04-02		R02	10	23.5	21.8	10	14
NPLT06-M5	6	M5X0.8	3.5	24.7	16.8	12	10
NPLT06-01		R01	8	24.7	20.4	12	10
NPLT06-02		R02	10	24.7	22.9	12	14
NPLT08-01	8	R01	8	27.2	22.5	14	12
NPLT08-02		R02	10	27.2	24.5	14	14
NPLT08-03		R03	11	27.2	25.5	14	17
NPLT08-04		R04	14	27.2	29	14	21
NPLT010-01	10	R01	8	31.7	23.5	16	14
NPLT010-02		R02	10	31.7	25.5	16	14
NPLT010-03		R03	11	31.7	26.5	16	17
NPLT010-04		R04	14	31.7	30	16	21
NPLT012-02	12	R02	10	32.2	26.7	18	17
NPLT012-03		R03	11	32.2	27.7	18	17
NPLT012-04		R04	14	32.5	31.2	18	21
NPLT06-03	16	R03	11	37	29.8	22	21
NPLT016-04	16	R04	14	37	32.8	22	21

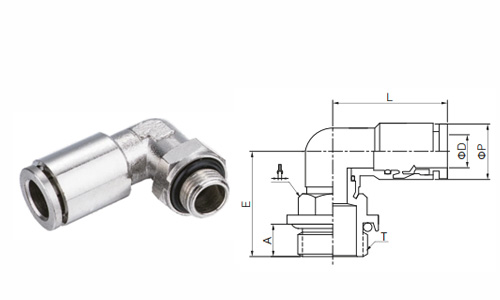

NPLT-G Series

NPLT-G Series

Model	ФD	T	A	L	E	ФP
NPLT04-G01	4	G01	5.5	23.5	19.3	10	10
NPLT04-G02	4	G02	6.5	23.5	20.3	10	10
NPLT06-G01	6	G01	5.5	24.7	20.4	10	10
NPLT06-G02	6	G02	6.5	24.7	21.4	10	10
NPLT08-G01	8	G01	5.5	27.7	21	14	12
NPLT08-G02		G02	6.5	27.7	23	14	12
NPLT08-G03		G03	7.5	27.7	23.5	14	12
NPLT08-G04		G04	10	27.7	27.5	14	12
NPLT010-G01	10	G01	5.5	31.7	22	16	14
NPLT010-G02		G02	6.5	31.7	24	16	14
NPLT010-G03		G03	7.5	31.7	24.5	16	14
NPLT010-G04		G04	10	31.7	28.5	16	14
NPLT012-G02	12	G02	6.5	32.2	24.7	18	17
NPLT012-G03		G03	7.5	32.2	25.7	18	17
NPLT012-G04		G04	10	32.2	29.7	18	17
NPLT016-G03	16	G03	7.5	37	28.8	22	21
NPLT016-G04	16	G04	10	37	31.3	22	24

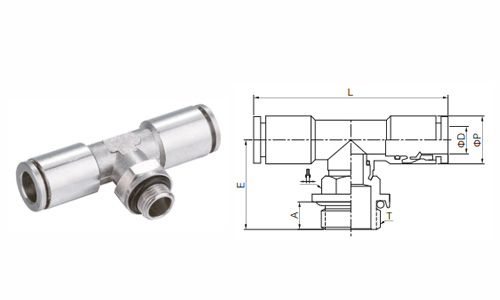

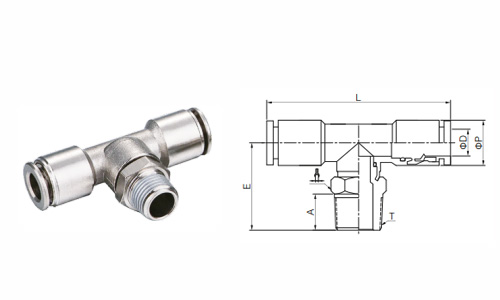

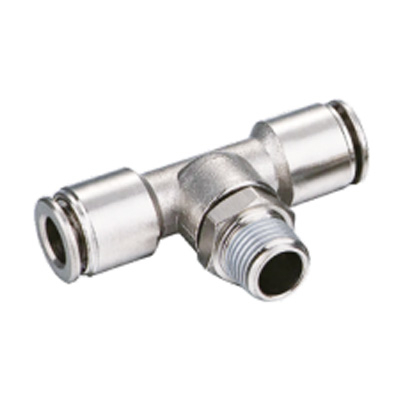

NPBT Series

NPBT Series

Model	ФD	T	A	L	E	ФP
NPBT04-M5	4	M5X0.8	3.5	47	15.8	10	10
NPBT04-01		R01	8	47	19.3	10	10
NPBT04-02		R02	10	47	21.8	10	14
NPBT06-M5	6	M5X0.8	3.5	49.4	16.8	12	10
NPBT06-01		R01	8	49.4	20.4	12	10
NPBT06-02		R02	10	49.4	22.9	12	14
NPBT08-01	8	R01	8	55.4	22.5	14	12
NPBT08-02		R02	10	55.4	24.5	14	14
NPBT08-03		R03	11	55.4	25.5	14	17
NPBT08-04		R04	14	55.4	29	14	21
NPBT010-01	10	R01	8	63.4	23.5	16	14
NPBT010-02		R02	10	63.4	25.5	16	14
NPBT010-03		R03	11	63.4	26.5	16	17
NPBT010-04		R04	14	63.4	30	16	21
NPBT012-02	12	R02	10	64.4	26.7	18	17
NPBT012-03		R03	11	64.4	27.7	18	17
NPBT012-04		R04	14	64.4	31.2	18	21
NPBT06-03	16	R03	11	74	29.8	22	21
NPBT016-04	16	R04	14	74	32.8	22	21

NPBT-G Series

NPBT-G Series

Model	ФD	T	A	L	E	ФP
NPBT04-G01	4	G01	5.5	47	19.3	10	10
NPBT04-G02	4	G02	6.5	47	20.3	10	10
NPBT06-G01	6	G01	5.5	49.4	20.4	12	10
NPBT06-G02	6	G02	6.5	49.4	21.4	12	10
NPBT08-G01	8	G01	5.5	55.4	21	14	12
NPBT08-G02		G02	6.5	55.4	23	14	12
NPBT08-G03		G03	7.5	55.4	23.5	14	12
NPBT08-G04		G04	10	55.4	27.5	14	12
NPBT010-G01	10	G01	5.5	63.4	22	16	14
NPBT010-G02		G02	6.5	63.4	24	16	14
NPBT010-G03		G03	7.5	63.4	24.5	16	14
NPBT010-G04		G04	10	63.4	28.5	16	14
NPBT012-G02	12	G02	6.5	64.4	24.7	18	17
NPBT012-G03		G03	7.5	64.4	25.7	18	17
NPLT012-G04		G04	10	64.4	29.7	18	17
NPLT016-G03	16	R03	7.5	74	28.8	22	21
NPLT016-G04	16	R04	10	74	31.3	22	24
