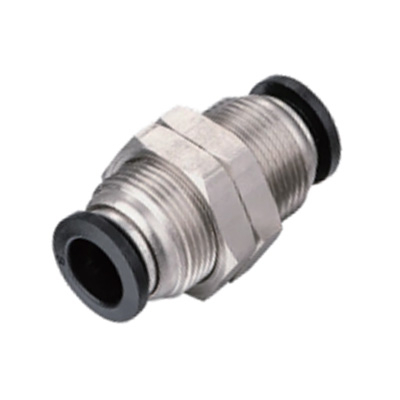

PM Series Quick Connecting Tube Fittings

PM Series Quick Connecting Tube Fittings

Product feature：
1.The quick plug-in pneumatic pipe joint is used for pneumatic pipe system.
2.There are many kinds of pipe joints,which can be used in all kinds of gas pipe systems.
3.Even after installation,the direction of the pipe can be changed freely.
4.Nickel plated copper body can prevent corrosion and pollution.
5.All R and NPT thread sealants are used for sealing.
6.Standard O-rings are used for all straight threads.

Availability:



Inquire Add to Basket

Product Description

Schematic diagram of structure：

Specifications：

Use medium	Air, water(conditional)
Working pressure range	0~1.2MPa
Use vacuum pressure	-100Kpa(10Torr)
Working temperature range	-10°~60℃

Ordering code:

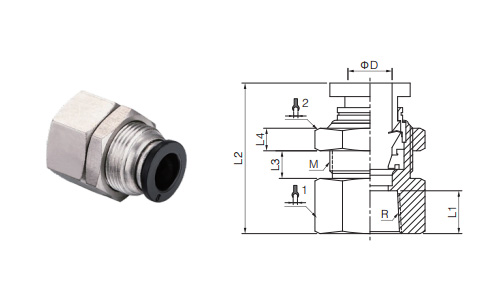

PMF-R Series

PMF-R Series

Model	ФD	R	L1	L2	L3	L4	M
PMF4-01	4	R1/8	8.5	24.5	5	3.5	M12X1.0	14	14
PMF4-02	4	R1/4	11	27	8	3.5	M12X1.0	17	14
PMF6-01	6	R1/8	8.5	25.5	5.5	4	M14X1.0	17	17
PMF6-02		R1/4	11	28.5	5.5	4	M14X1.0	17	17
PMF6-03		R3/8	11.5	29	5.5	4	M14X1.0	20	17
PMF8-01	8	R1/8	8.5	27.5	5.5	4.5	M16X1.0	19	19
PMF8-02		R1/4	11	30	5.5	4.5	M16X1.0	19	19
PMF8-03		R3/8	11.5	30.5	5.5	4.5	M16X1.0	20	19
PMF8-04		R1/2	14	33	5.5	4.5	M16X1.0	24	19
PMF10-02	10	R1/4	11	32.5	7	5	M18X1.0	21	21
PMF10-03		R3/8	11.5	33	7	5	M18X1.0	21	21
PMF10-04		R1/2	14	35.5	7	5	M18X1.0	24	21
PMF12-02	12	R1/4	11	35	9	5	M22X1.0	27	27
PMF12-03		R3/8	11.5	35.5	9	5	M22X1.0	27	27
PMF12-04		R1/2	14	38	9	5	M22X1.0	27	27

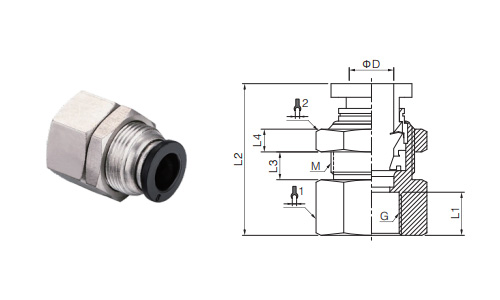

PMF-G Series

PMF-G Series

Model	ФD	G	L1	L2	L3	L4	M
PMF4-G01	4	G1/8	8.5	24.5	5	3.5	M12X1.0	14	14
PMF4-G02	4	G1/4	11	27	8	3.5	M12X1.0	17	14
PMF6-G01	6	G1/8	8.5	25.5	5.5	4	M14X1.0	17	17
PMF6-G02		G1/4	11	28.5	5.5	4	M14X1.0	17	17
PMF6-G03		G3/8	11.5	29	5.5	4	M14X1.0	20	17
PMF8-G01	8	G1/8	8.5	27.5	5.5	4.5	M16X1.0	19	19
PMF8-G02		G1/4	11	30	5.5	4.5	M16X1.0	19	19
PMF8-G03		G3/8	11.5	30.5	5.5	4.5	M16X1.0	20	19
PMF8-G04		G1/2	14	33	5.5	4.5	M16X1.0	24	19
PMF10-G02	10	G1/4	11	32.5	7	5	M18X1.0	21	21
PMF10-G03		G3/8	11.5	33	7	5	M18X1.0	21	21
PMF10-G04		G1/2	14	35.5	7	5	M18X1.0	24	21
PMF12-G02	12	G1/4	11	35	9	5	M22X1.0	27	27
PMF12-G03		G3/8	11.5	35.5	9	5	M22X1.0	27	27
PMF12-G04		G1/2	14	38	9	5	M22X1.0	27	27

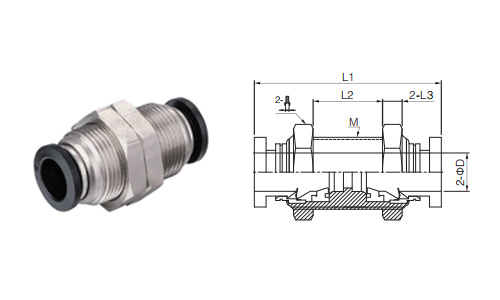

PM Series

Model	ФD	M	L1	L2	L3
PM4	4	M12X1.0	31	13	3.5	14
PM6	6	M14X1.0	32.5	13	4	17
PM8	8	M16X1.0	37	15	4.5	19
PM10	10	M18X1.0	42	18.5	5	21
PM12	12	M22X1.0	46	20	5	27
PM14	14	M24X1.0	47	20	5.5	30
PM16	16	M26X1.0	49	22	6	32
PM5/32	5/32	M12X1.0	31	13	3.5	14
PM3/16	3/16	M12X1.0	31	13	3.5	14
PM1/4	1/4	M14X1.0	32.5	13	4	17
PM5/16	5/16	M16X1.0	37	15	4.5	18
PM3/8	3/8	M18X1.0	42	18.5	5	21
PM1/2	1/2	M22X1.0	46	20	5	27
