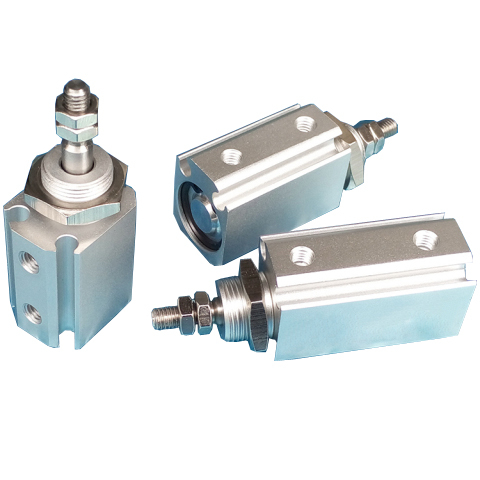

Plate MPG Mini Cylinder Bore Size 6 mm To 16 mm Equal To AIRTAC MPG Series Mini Cylinder
Product Feature
These plate Pneumatic Mini cylinders are available in double acting.
Available in bore sizes 6mm to 16mm and numerous stroke sizes. Version with magnet is also an option.
● It is compact,small size and light weight.It is easy to install and dismantle.
●The guide precision of the piston rod is high and no additional lubricant is needed.
●Advanced rubber coating process is appplied to the back cover.
●Mounting accessories with various specification are optional.
●With magnet type is of the feature of position sensing.
●There are magnetic switch slots around the cylinder body, which is convenient to install inducting switch.
●Mini Cylinders of the various specifications are optional.
Plate Pneumatic Mini Cylinders Ordering Code:
Plate Pneumatic Mini Cylinders Specification
| Mini Pneumatic Cylinder Bore (mm) | 6 | 8 | 10 | 12 | 16 | |
| Acting Type | Double acting | |||||
| Fluid | Air (To be filtered by 40μm filter element) | |||||
Operation Pressure | 0.1∽0.7Mpa(15∽100Psi) | |||||
| Proof pressure | 1.05Mpa(150Psi) | |||||
| Temperature ℃ | -20∽80 | |||||
| Speed Range mm/s | 30∽500 | |||||
| Stroke Tolerance | +1.0 | |||||
| Cushion Type | Bumper | |||||
| Port Size | M3x0.5 | M5x0.8 | ||||
Plate Pneumatic Mini Cylinders Inner Structure
Plate Pneumatic Mini Cylinders Stroke
| MPG Mini Pneumatic Cylinder Bore(mm) | Standard Stroke(mm) | Max.std stroke |
6 | 5 10 15 20 25 | 25 |
| 8 | 5 10 15 20 25 30 35 40 | 40 |
| 10 | 5 10 15 20 25 30 35 40 | 40 |
| 12 | 5 10 15 20 25 30 35 40 | 40 |
| 16 | 5 10 15 20 25 30 35 40 | 40 |
Neu-Master Pneumatic warrants these mini pneumatic cylinders to the original user against defective material or workmanship for a period of 1 year from the date of 1st use. Neu-Master reserves the right to determine whether the product failed because of defective material, workmanship or other causes and to charge back for missing parts.Neu-Master Pneumatic at its discretion, will repair products covered under this warranty free of charge.
1 Year Standard Warranty
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us.
How about the lead time of the Plate Pneumatic Mini Cylinders , delivery time?
Normally we keep some stock , so the lead time will less than 15 work days .
Is the Pneumatic sample for free ?
Yes, but need afford the freight
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time :15 work days
