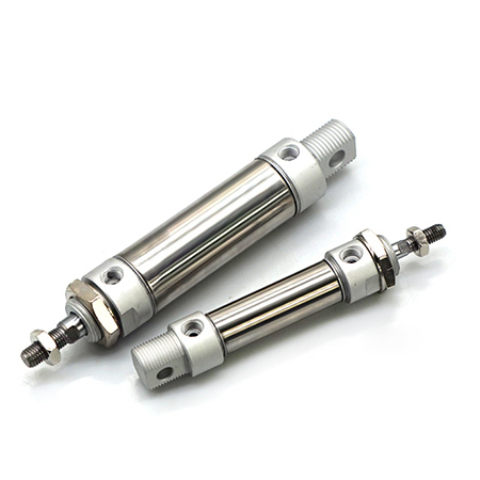

MA25*50 Stainless Steel Round Pipe Mini Cylinder Bore Size 16mm To 63mm Double Acting And Single Acting For Choosing
Product Feature
●Standard Mini Cylinder manufactured by NEU-MASTER
●Piston adopts two-way seal structure. It has compact size and has the function of oil reservation.
●Front cover has fixed bumper which can reduce the impact of direction change of the cylinder.
●There are several models of back cover, which makes the installation of cylinder more convenient.
●Front and back cover and stainless steel block adopt riveted rolling packed structure to form a reliable connection.
●The cylinder body has stainless steel pipes with high precision to produce high strength and corrosion resistance.
●There are cylinders and mounting accessories with several specifications for your choice.
●All mini cylinders of this series have magnet.

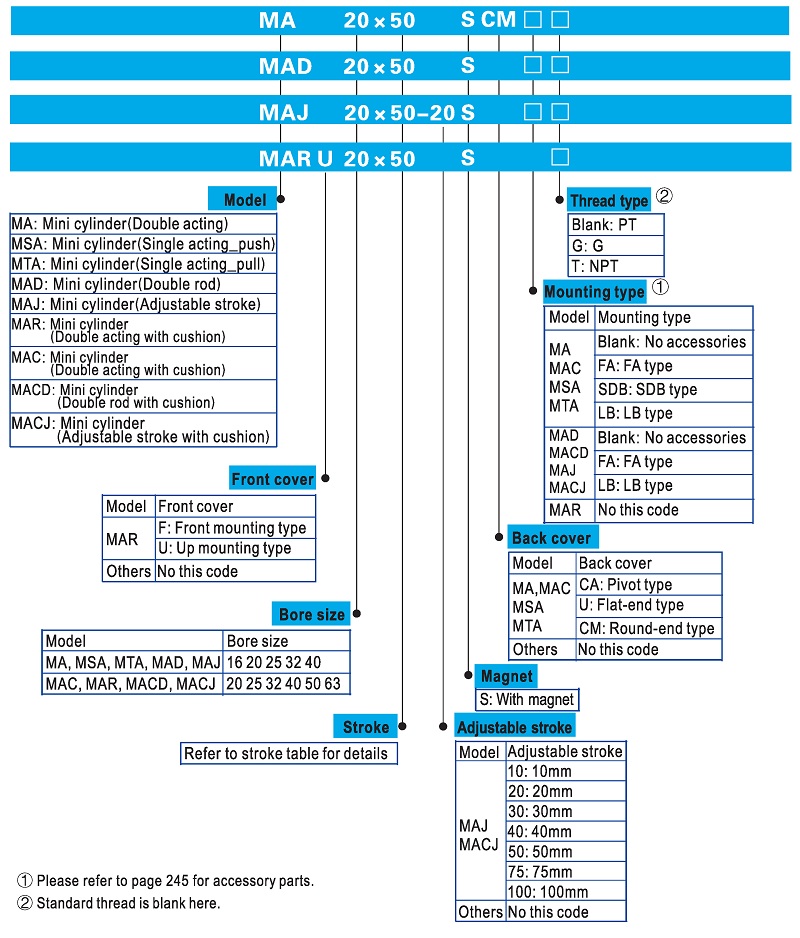

MA Air Mini Cylinder Ordering Code
MA Air Mini Cylinder Specification
| Bore Size(mm) | 16 | 20 | 25 | 32 | 40 | 50 | 63 | |
| Acting type | MSA ,MTA | Single Acting | -- | |||||
| MA,MAD,MAJ | Double Acting | -- | ||||||
| MAR | -- | Double Acting | ||||||
| MAC,MACD,MACJ | -- | Double Acting With Cushion | ||||||
| Fluid | Air (To be filtered by 40μm filter element) | |||||||
Operating Pressure | Double Acting | 0.1∽1.0Mpa(15∽145Psi)(1.0∽10Bar) | ||||||
| Single Acting | 0.2∽1.0Mpa(28∽145Psi)(2.0∽10Bar) | |||||||
| Proof Pressure | 1.5Mpa(215Psi)(15Bar) | |||||||
| Temperature℃ | -20∽70 | |||||||
| Speed Range mm/s | Double acting cylinder: 30∽800mm/s ; Single Acting Cylinder 50∽800mm/s | |||||||
| Stroke Tolerance | 0∽250:+1.0; ≥250+1.5; | |||||||
| Cushion Type | MAC,MACD,MACJ Series :Adjustable Cushion; Others : Bumper | |||||||
| Port Size① | M5*0.8 | 1/8" | 1/4" | |||||
① PT thread , G thread ,NPT thread are available for 1/8" and 1/4" pipe size.
MA Air Mini Cylinder Stroke
| Bore Size(mm) | Standard Stroke | Max. Standard Stroke | Max.Stroke | ||
| MI | --- | 8 | 10 15 20 25 30 40 50 60 75 80 100 125 150 | 150 | 200 |
| 10 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 | 200 | 200 | ||
| 12 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 | 250 | 500 | ||
| MIC | 16 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 500 | 600 | |
| 20 | 500 | 800 | |||
| 25 | 500 | 800 | |||
| 32 | 500 | 800 | |||
| 40 | 500 | 800 | |||
MID MIJ | --- | 8 | 10 15 20 25 30 40 50 60 75 80 100 | 100 | -- |
| 10 | 10 15 20 25 30 40 50 60 75 80 100 | 100 | -- | ||
| 12 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 | 200 | -- | ||
MICD MICJ | 16 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 | 300 | -- | |
| 20 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 | 300 | -- | ||
| 25 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 | 300 | -- | ||
| 32 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 500 | -- | ||
| 40 | 500 | -- | |||
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us.
How about the lead time of the MA Air Mini Cylinder , delivery time?
Normally we keep some stock , so the lead time will less than 15 work days .
Is the Pneumatic sample for free ?
Yes, but need afford the freight
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time :15 work days
