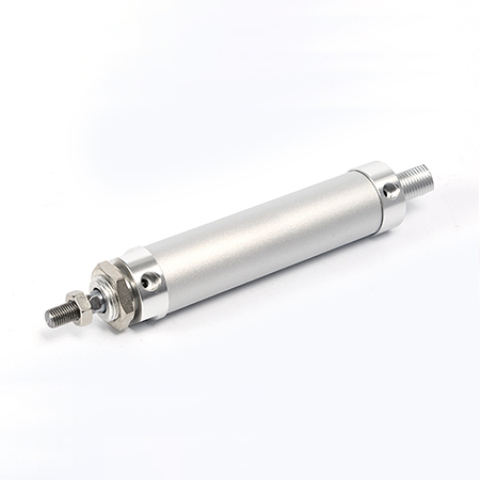

MAL25*50 Aluminum Round Pipe Small Air Cylinder Bore Size 20mm To 40mm Double Acting And Single Acting For Choosing
Product Feature
●Standard Small Air Cylinder manufactured by NEU-MASTER
●Front and back cover and cylinder tube are connected by threads.
●Piston adopts two-way seal structure. It has compact size and has the function of grease reservation.
●Front cover adopts self-lubrication bearing guide that has good performance of lubrication and guide.
●There are several modes of back cover, which makes the installation of the cylinder more convenient.
●There are cylinders and mounting accessories with several specifications for your choice.

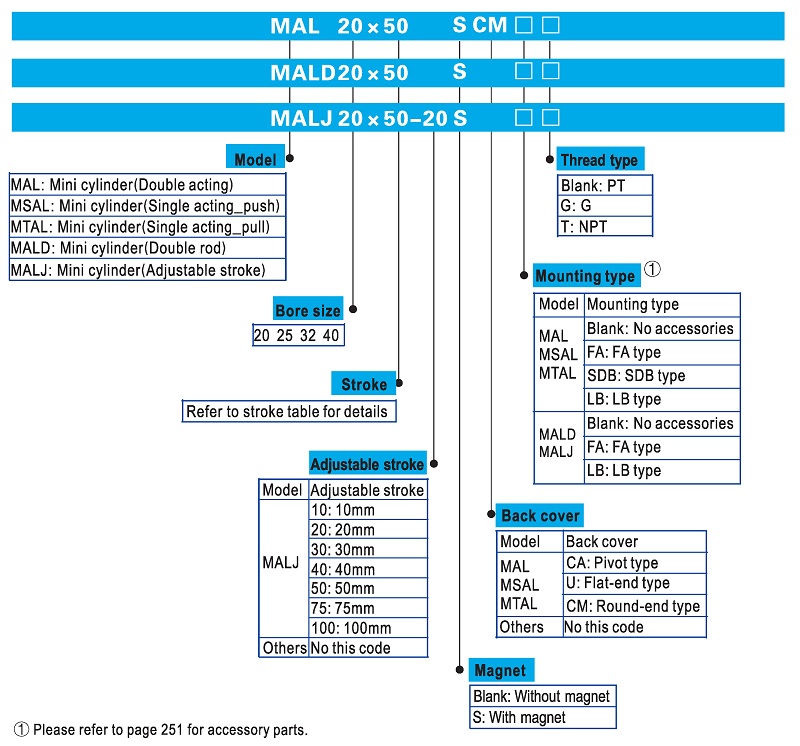

MAL Small Air Cylinder Ordering Code
MAL Small Air Cylinder Specification
| Small Air Cylinder Bore Size(mm) | 20 | 25 | 32 | 40 | |
| Acting type | MSAL ,MTAL | Single Acting | |||
| Others | Double Acting | ||||
| Fluid | Air (To be filtered by 40μm filter element) | ||||
Operating Pressure | Double Acting | 0.1∽1.0Mpa(15∽145Psi)(1.0∽10Bar) | |||
| Single Acting | 0.2∽1.0Mpa(28∽145Psi)(2.0∽10Bar) | ||||
| Proof Pressure | 1.5Mpa(215Psi)(15Bar) | ||||
| Temperature℃ | -20∽70 | ||||
| Speed Range mm/s | Double acting cylinder: 30∽800mm/s ; Single Acting Cylinder 50∽800mm/s | ||||
| Stroke Tolerance | 0∽250:+1.0; ≥250+1.5; | ||||
| Cushion Type | MAC,MACD,MACJ Series :Adjustable Cushion; Others : Bumper | ||||
| Port Size① | 1/8" | 1/4" | |||
① PT thread , G thread ,NPT thread are available for 1/8" and 1/4" pipe size.
MAL Small Air Cylinder Stroke
| Bore Size(mm) | Standard Stroke | Max. Std. Stroke | Max.Stroke | |
| MAL | 20 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 500 | 1000 |
| 25 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 500 | 1000 | |
| 32 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 500 | 1500 | |
| 40 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 500 | 1500 | |
MALD MALJ | 20 | 25 50 75 80 100 125 150 160 175 200 250 300 | 300 | -- |
| 25 | 25 50 75 80 100 125 150 160 175 200 250 300 | 300 | -- | |
| 32 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 500 | -- | |
| 40 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 500 | -- | |
MSAL | 20 | 25 50 75 80 100 125 150 | -- | -- |
| 25 | 25 50 75 80 100 125 150 | -- | -- | |
| 32 | 25 50 75 80 100 125 150 | -- | -- | |
| 40 | 25 50 75 80 100 125 150 | -- | -- | |
| MTAL | 20 | 25 50 75 100 | -- | -- |
| 25 | 25 50 75 100 | -- | -- | |
| 32 | 25 50 75 100 | -- | -- | |
| 40 | 25 50 75 100 | -- | -- | |
What's kind of thread we could supply ?
The NPT thread port , PT thread port,G thread port .
Other special port thread request please contact with us.
How about the lead time of the MAL Small Air Cylinder, delivery time?
Normally we keep some stock , so the lead time will less than 15 work days .
Is the Pneumatic sample for free ?
Yes, but need afford the freight
Certification:
ISO certificate;CE certificate
Pakaging&Delivery
Plastic bag-Hard box -Carton-Pallet ; The lead time :15 work days
